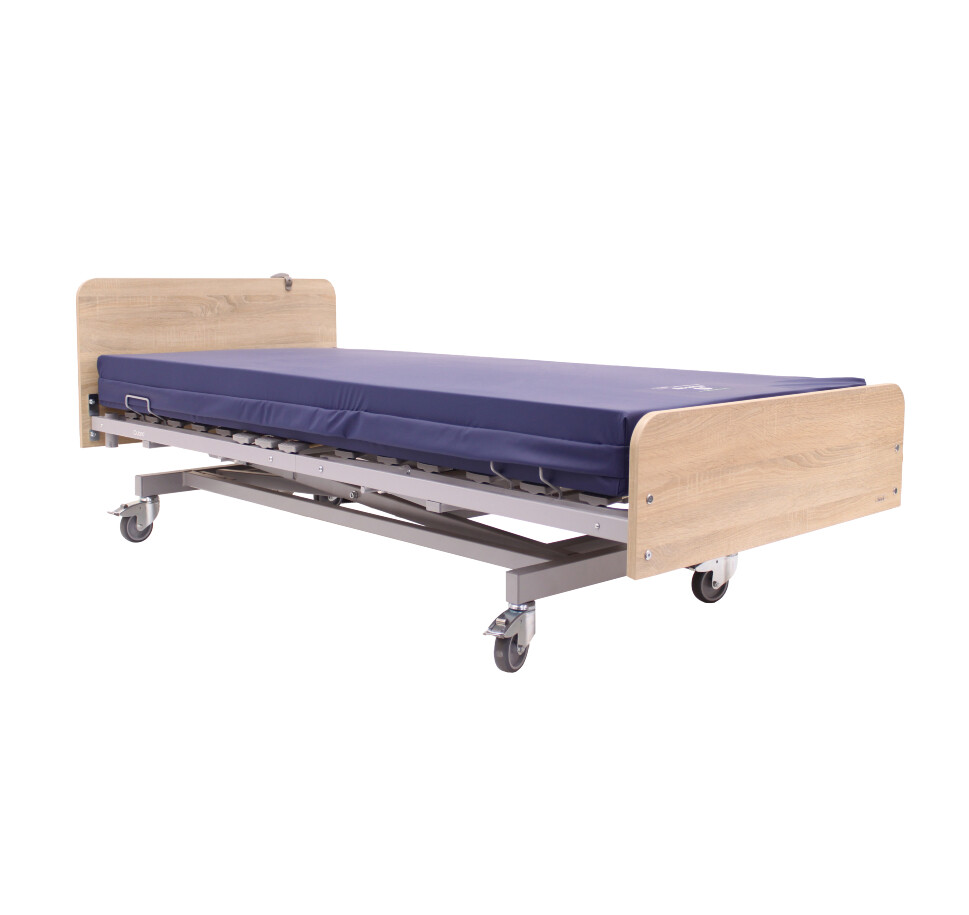

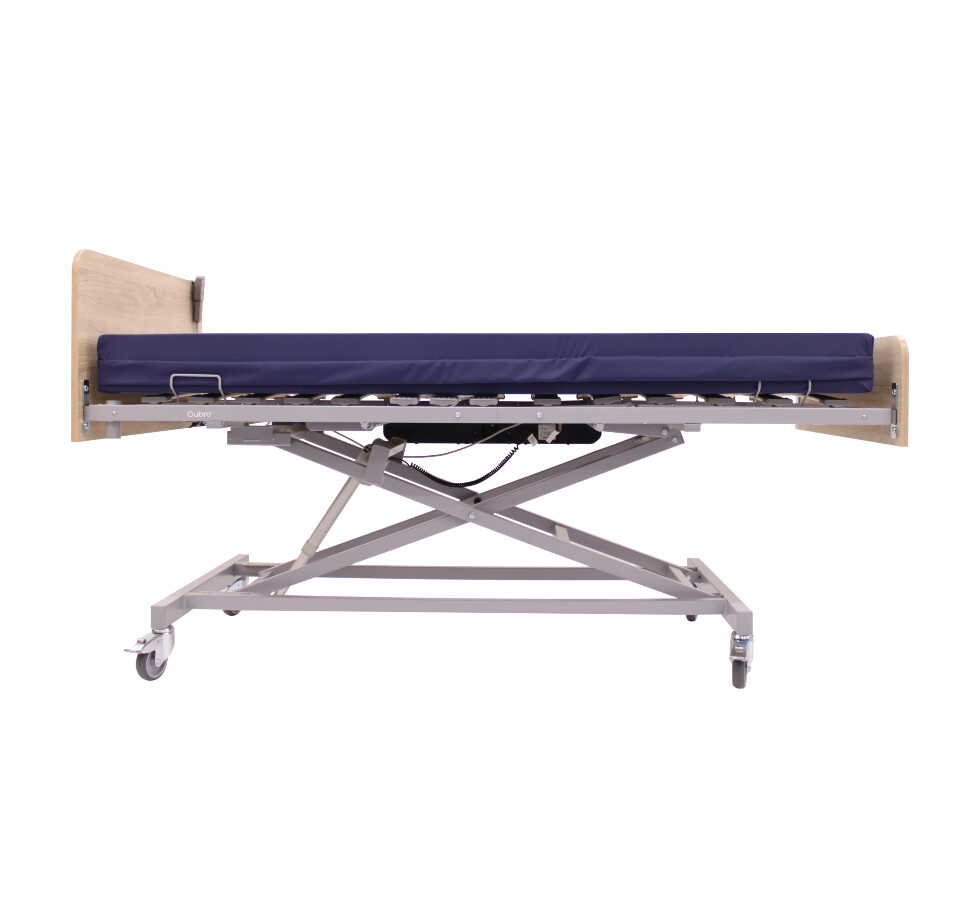

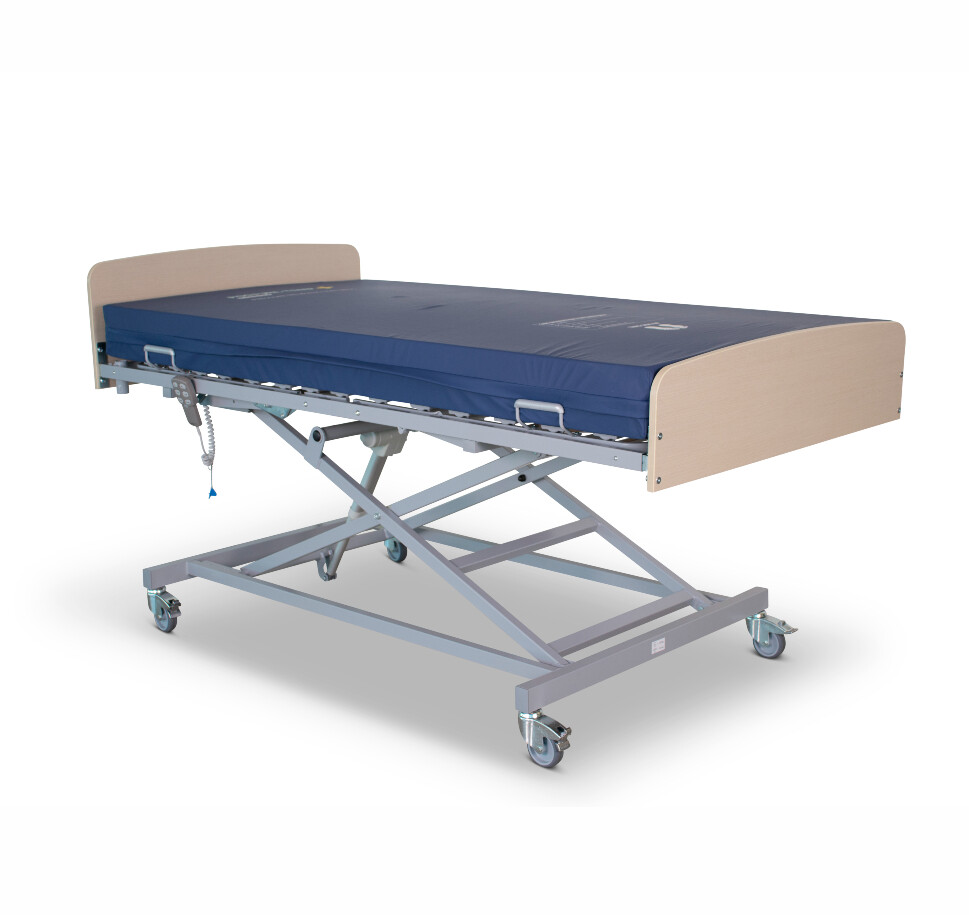

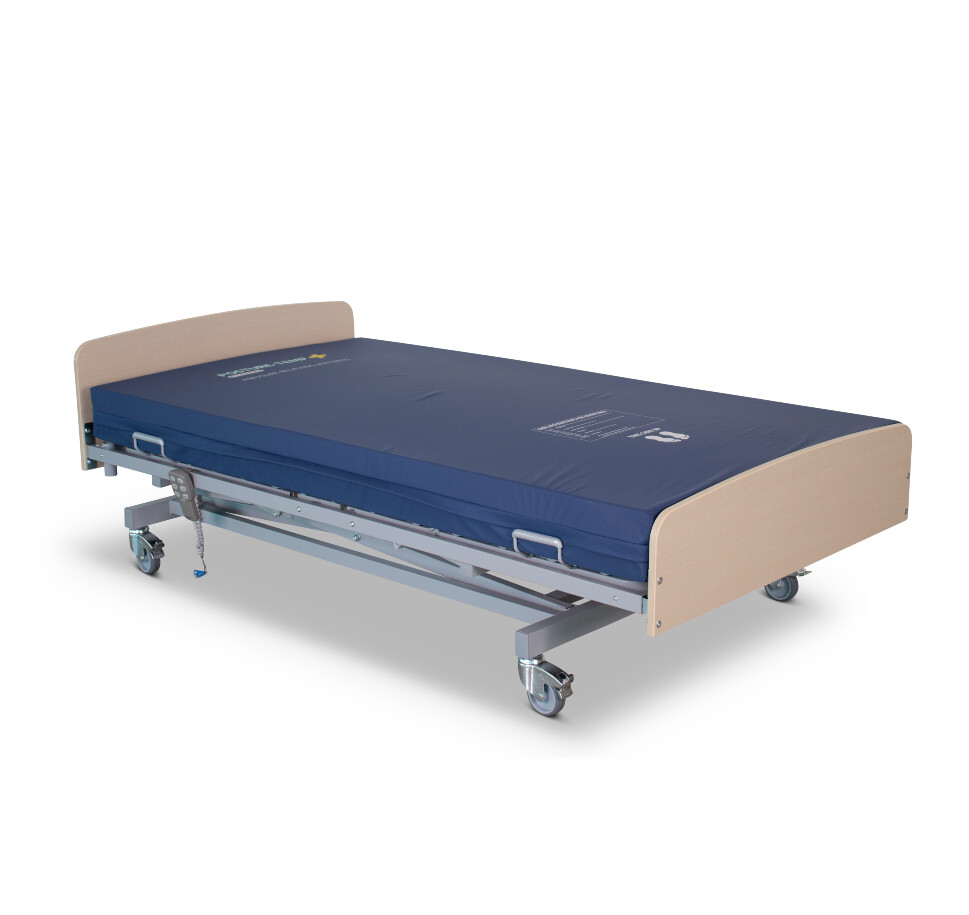

bock^® v2 electric bed and mattress

Made in Germany

Code(s): 8650, 8600, 8660, 8610

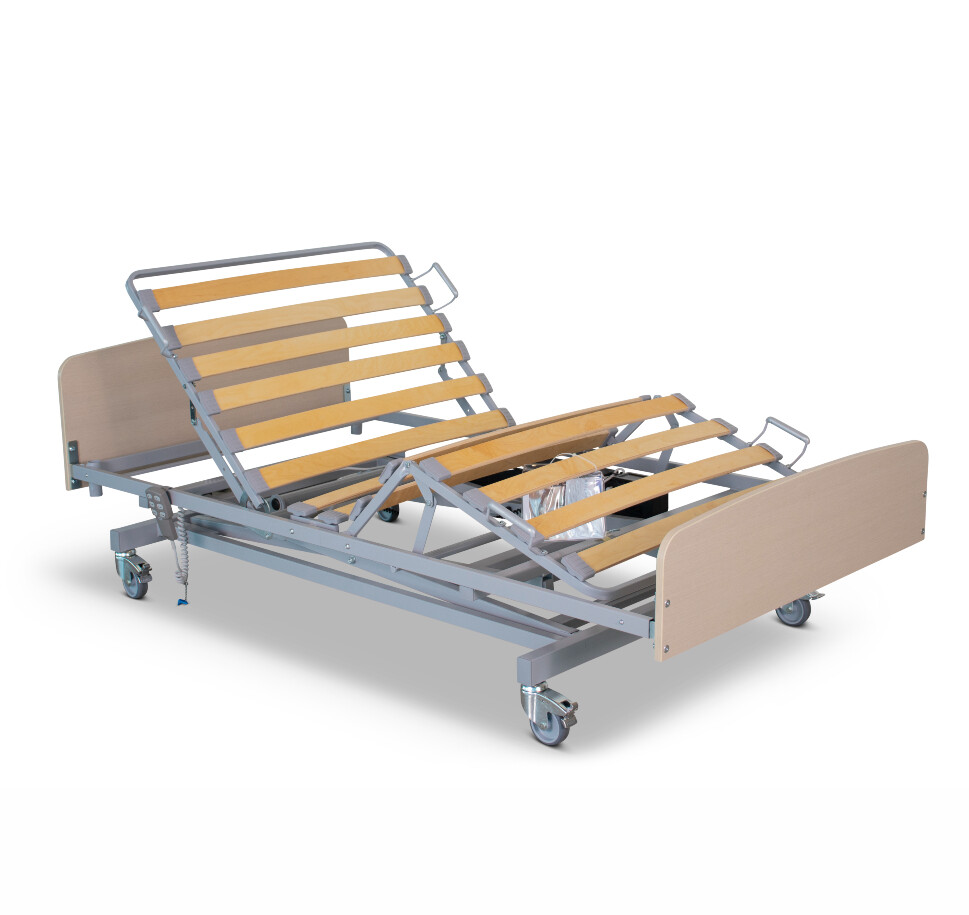

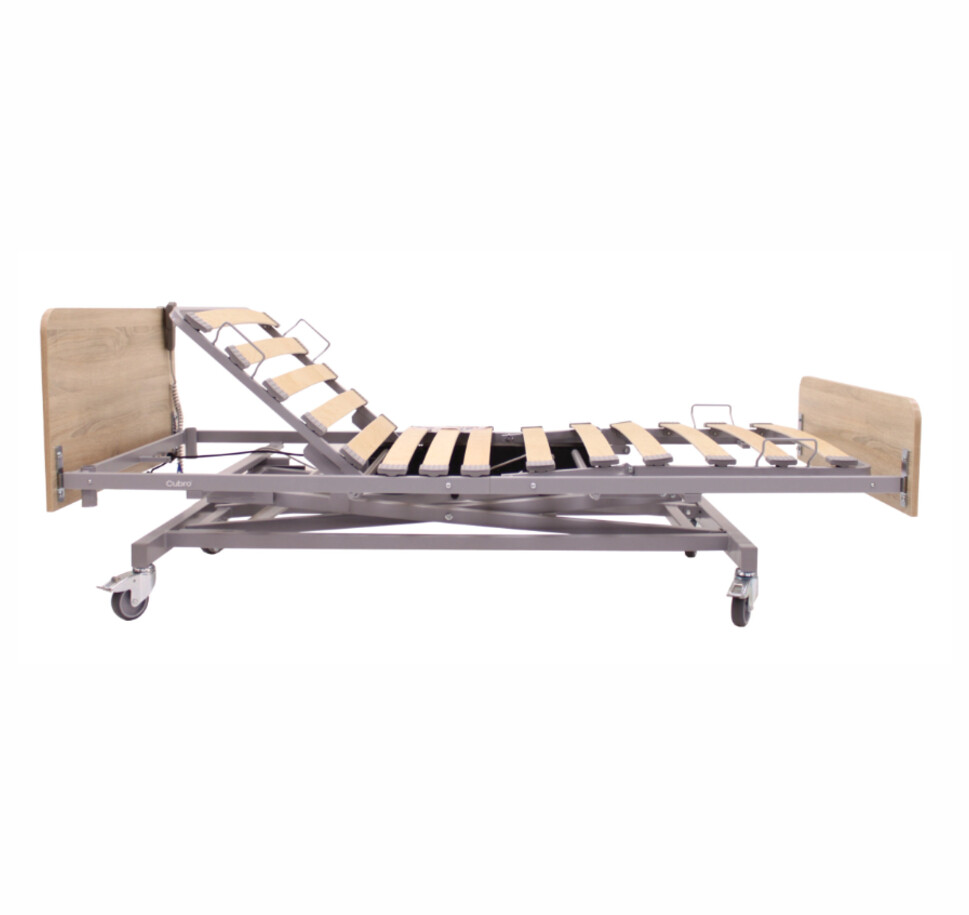

The bock® v2 is a 4-section electric bed that combines maximum comfort and ease of use. The professional design is great for daily care in the home. Ergo Plus hand controller is designed for ease of use with fully adjustable mounting clip to allow multi positioning. The integrated disabler function allows all electric functions to be disabled with a simple hand controller lock.

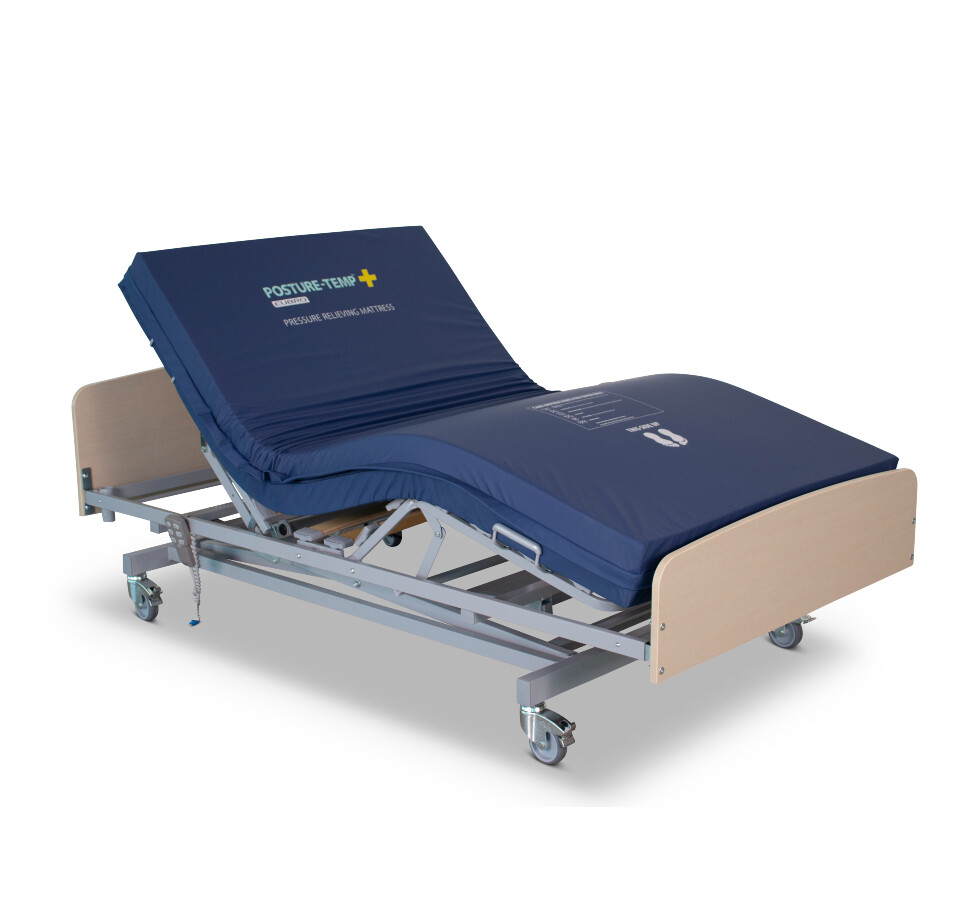

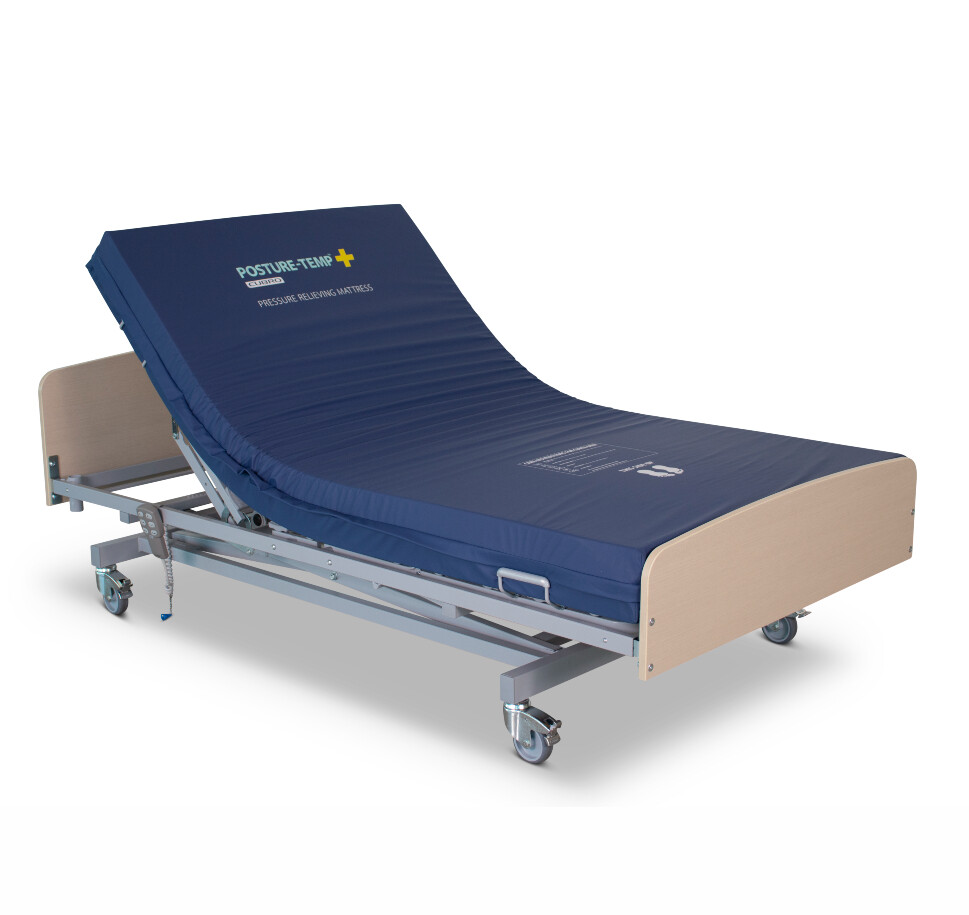

Including high quality Sonoma Oak head and endboards, the single bed is sold with the Greenline Hyper-Foram mattress, and the super single bed is sold with the Posture-Temp™ mattress.

Quantity

Key features

Includes 4-section electric bed and mattress

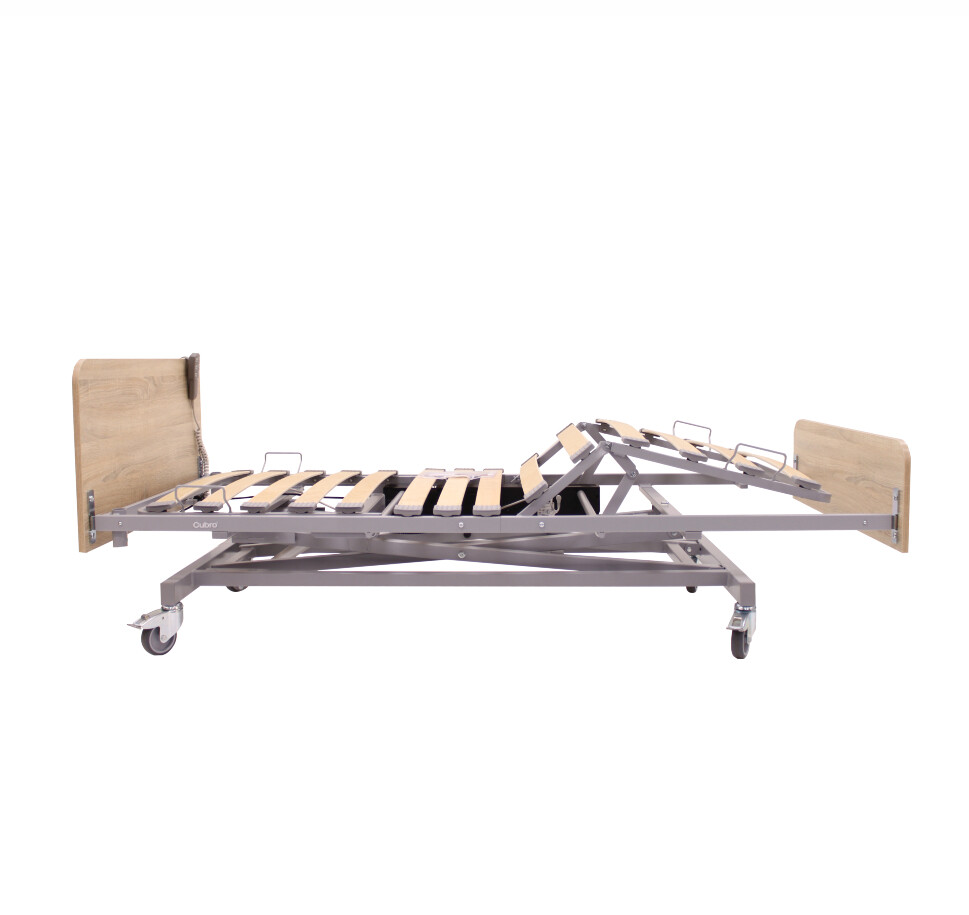

Sprung slat base for pressure care and ventilation
Mains isolation prevents the generation of electric fields

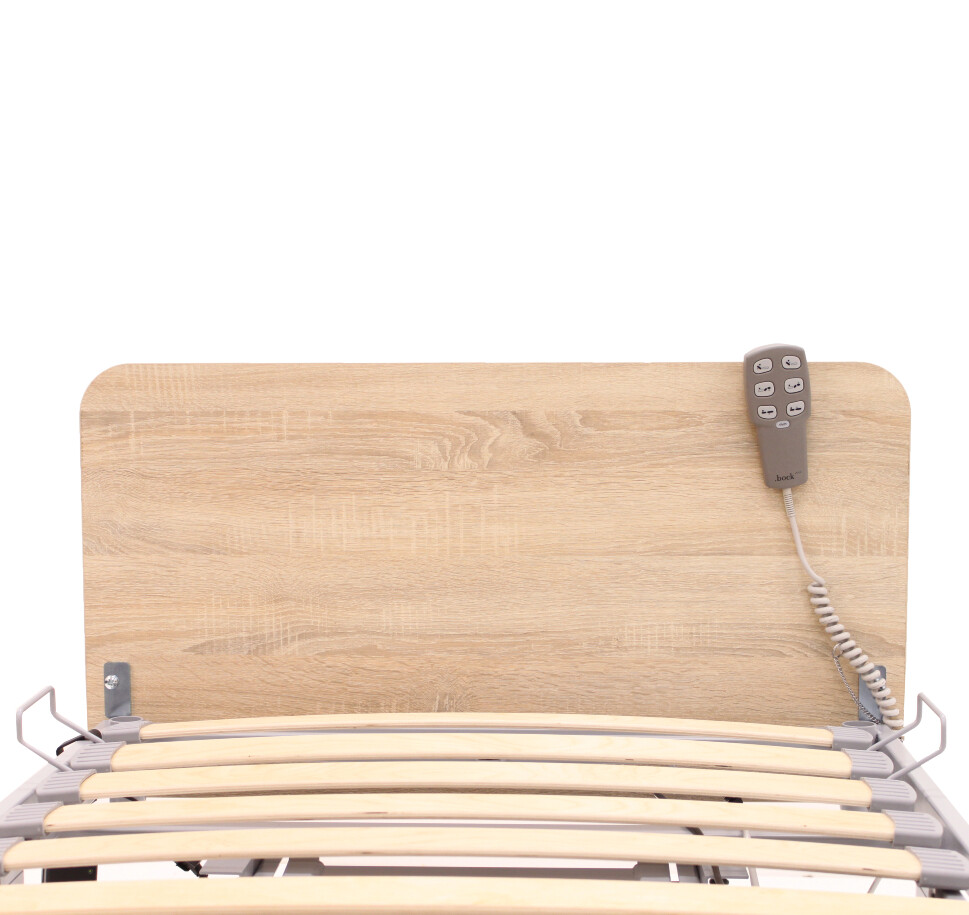

Tough, scratch-resistant prime melamine surface on the endboards

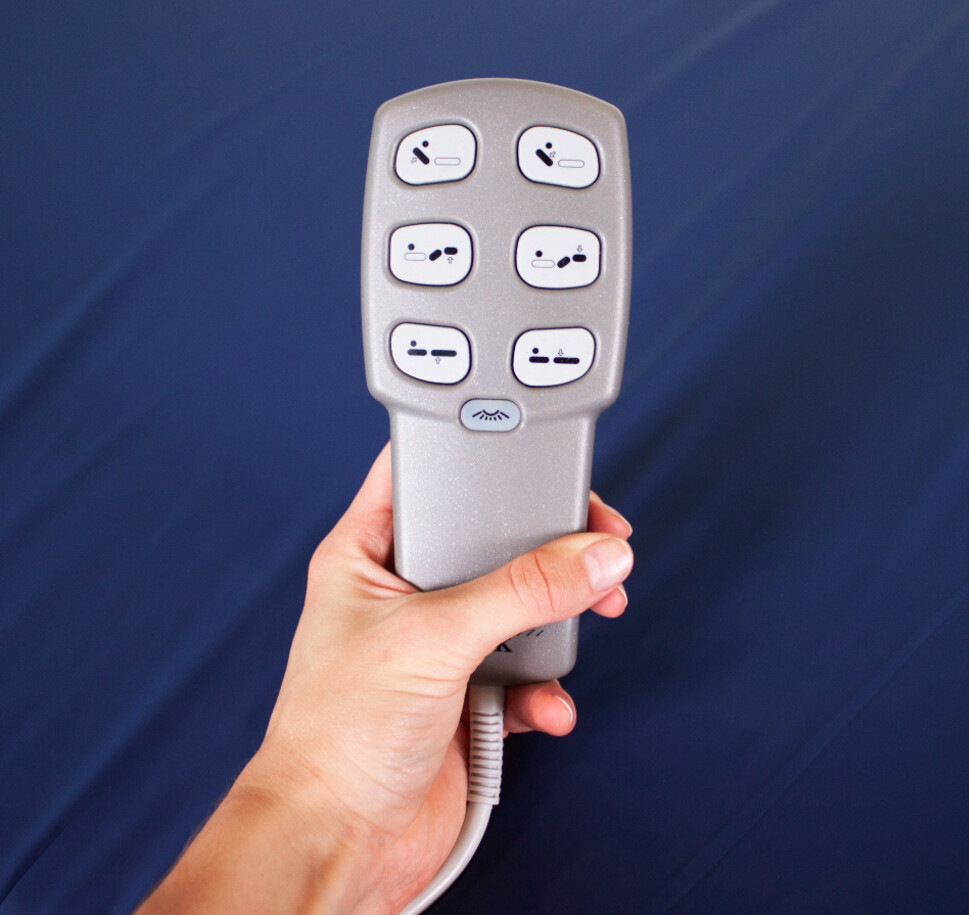

All function hand controller with integrated disabler control and adjustable rail clamp
High grade coiled cable with strain relief and anti-kink feature to protect against cable damage
Battery for emergency lowering
Protection against moisture (IPX4)
Automatic triple action kneebreak and height adjustment

Specifications

Code(s)	8650	8600	8660	8610
	Posture-temp mattress/ Super single	Greenline Hyper Foam mattress/ Single	Super Single	Single
Size	Super single	Single	-	-
Safe working load	200kg	200kg	200kg	200kg
Maximum user weight	165kg	165kg	165kg	165kg
Overall dimensions	W 1220mm L 2160mm	W 915mm L 2160mm	Bed: W 1220 L 2160mm	Bed: W 915 L 2160mm
Clearance height	150mm	150mm	150mm	150mm
Backrest angle adjustment	70°	70°	70°	70°
Knee angle adjustment	35°	35°	35°	35°
Castor size	4x 100mm	4x 100mm	4x 100mm	4x 100mm
Mattress dimensions	W 1100mm L 2000mm H 150mm	W 880mm L 1960mm H 150mm	W 1100 L 2000 H 150mm	W 900 L 2000 H 150mm
Mattress platform	370 - 830mm	370 - 830mm	370 - 830mm	-
Braking	Individual braking	Individual braking	Individual braking	Individual braking
Warranty	Bed: Electronics - 2 years, Frame - 5years	Bed: Electronics - 2 years, Frame - 5years	Bed: Electronics - 2 years, Frame - 5years	Bed: Electronics - 2 years, Frame - 5years
Compliance	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)
Material	-	-	Mattress: Viscoelastic foam	Mattress: Viscoelastic foam

Code(s)	8650	8600	8660	8610
	Posture-temp mattress/ Super single	Greenline Hyper Foam mattress/ Single	Super Single	Single
Size	Super single	Single	-	-
Safe working load	200kg	200kg	200kg	200kg
Maximum user weight	165kg	165kg	165kg	165kg
Overall dimensions	W 1220mm L 2160mm	W 915mm L 2160mm	Bed: W 1220 L 2160mm	Bed: W 915 L 2160mm
Clearance height	150mm	150mm	150mm	150mm
Backrest angle adjustment	70°	70°	70°	70°
Knee angle adjustment	35°	35°	35°	35°
Castor size	4x 100mm	4x 100mm	4x 100mm	4x 100mm
Mattress dimensions	W 1100mm L 2000mm H 150mm	W 880mm L 1960mm H 150mm	W 1100 L 2000 H 150mm	W 900 L 2000 H 150mm
Mattress platform	370 - 830mm	370 - 830mm	370 - 830mm	-
Braking	Individual braking	Individual braking	Individual braking	Individual braking
Warranty	Bed: Electronics - 2 years, Frame - 5years	Bed: Electronics - 2 years, Frame - 5years	Bed: Electronics - 2 years, Frame - 5years	Bed: Electronics - 2 years, Frame - 5years
Compliance	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)	Bed: ISO 14971 Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM)
Material	-	-	Mattress: Viscoelastic foam	Mattress: Viscoelastic foam
