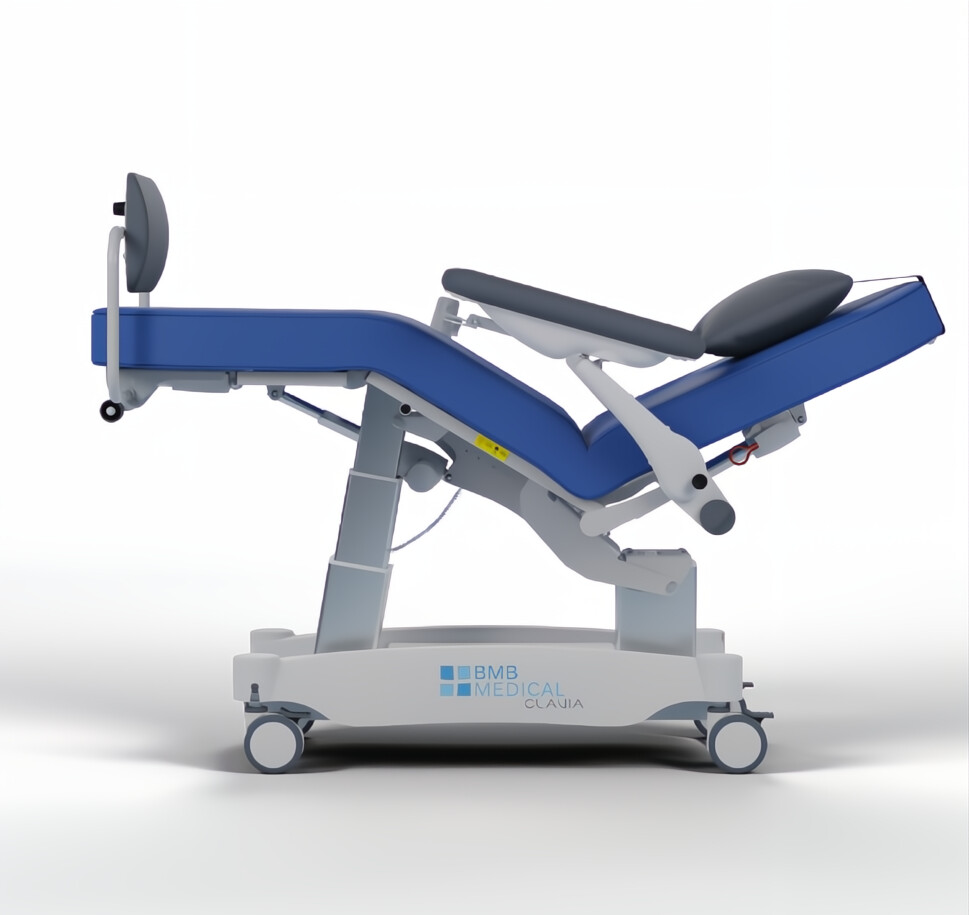

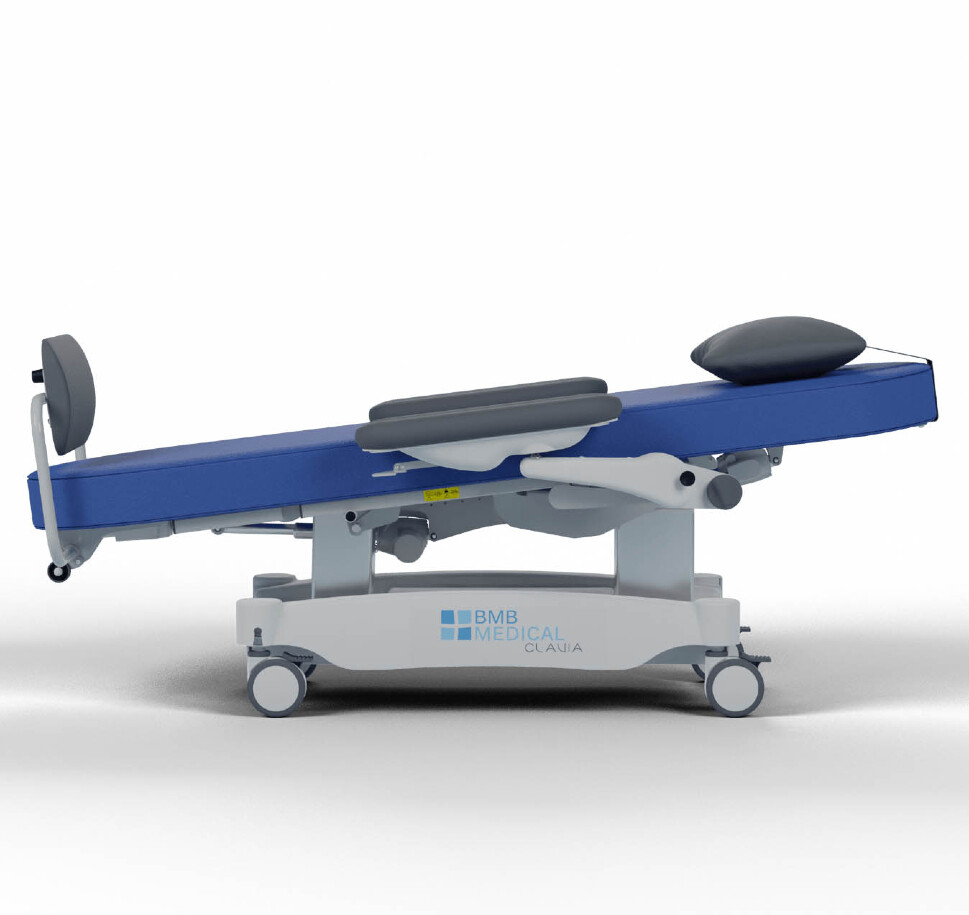

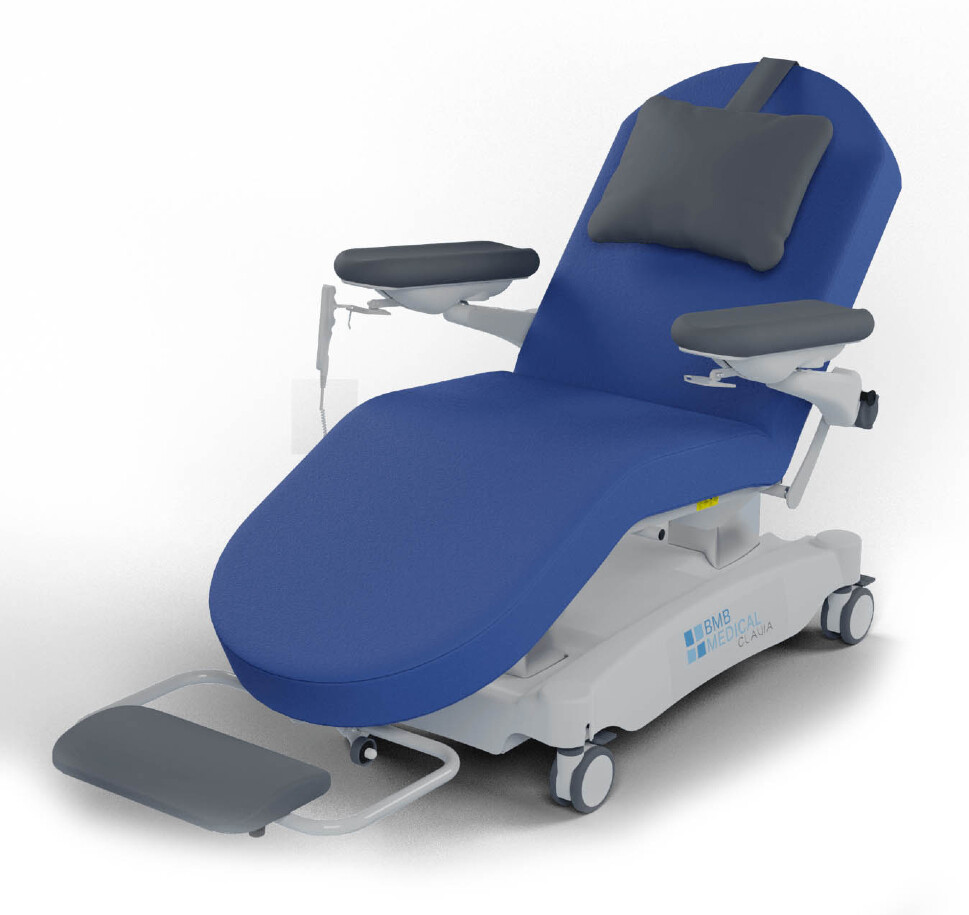

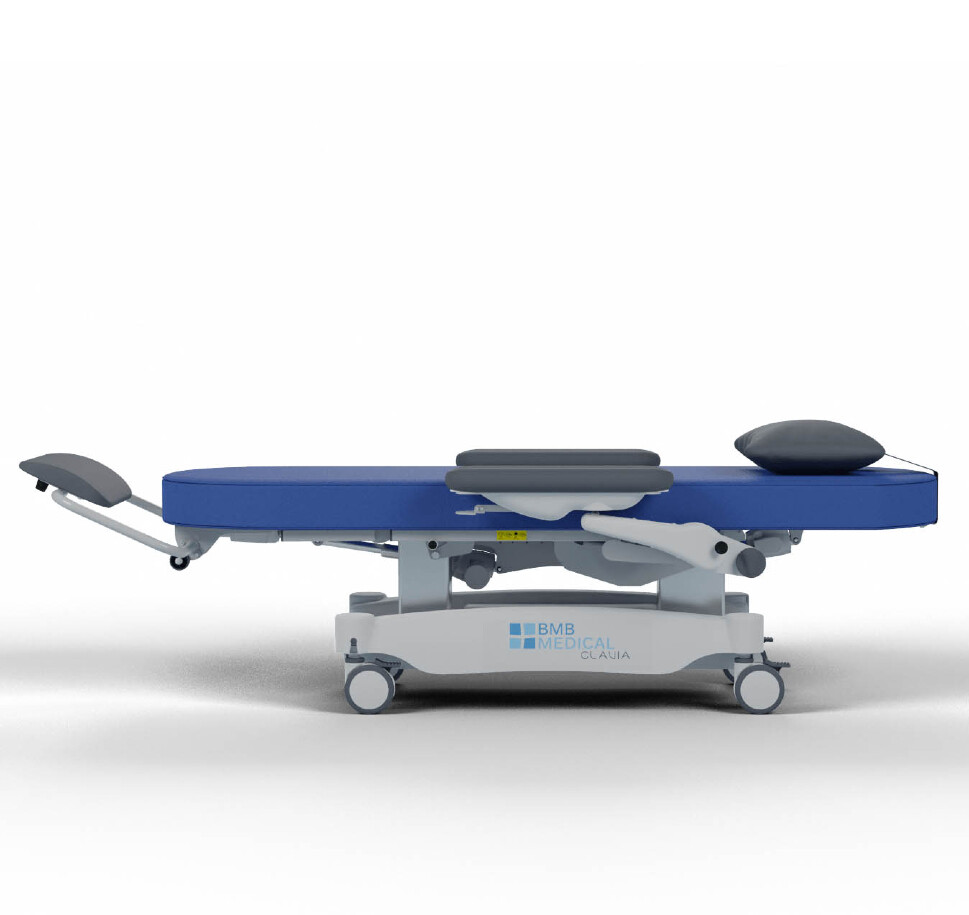

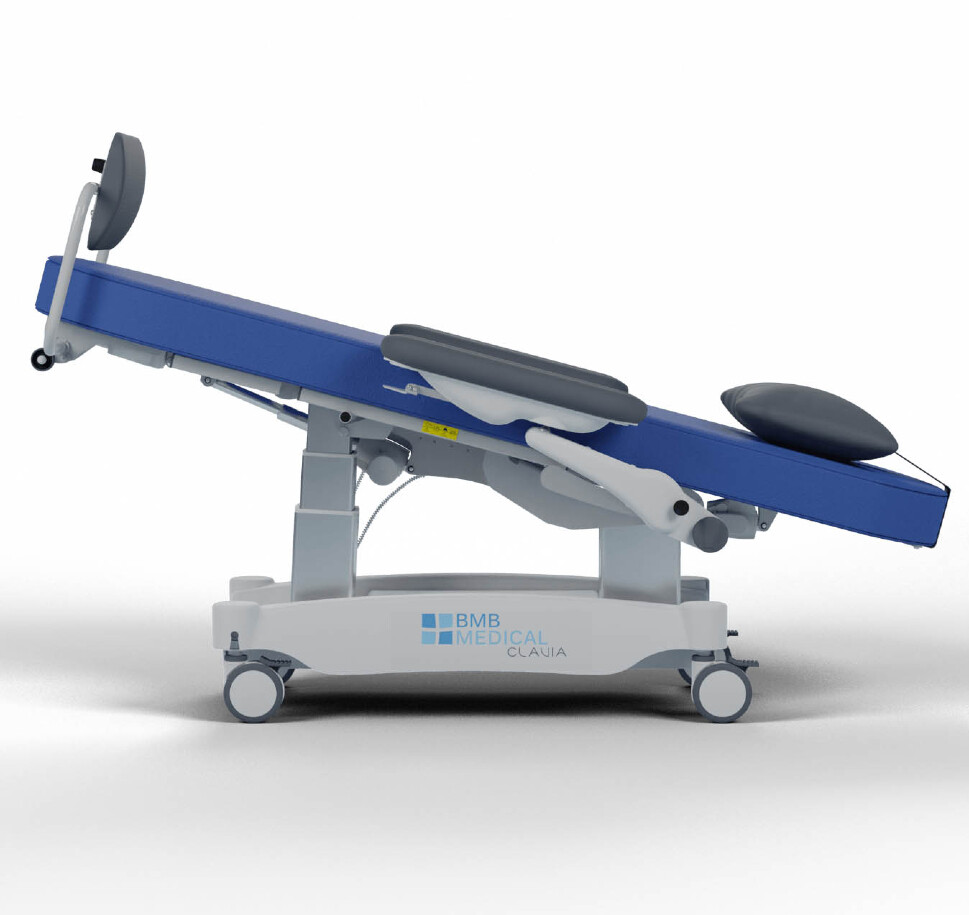

Key features
- Designed to comfortably support those undertaking chemotherapy and dialysis treatment
- Anatomic shaped armrests recline with the backrest. Adjustable to two heights, and in all directions
- Armrests fold up for side transfers
- Features a 3-sectional mattress base
- Fixed mattress made of high resilience foam (35kg/m3), thickness 100mm
- PVC coated jersey
- Electrically assisted height adjustment on 2 LINAK columns: 550 - 950mm
- Electrically adjustable backrest, and leg rest positioning and Trendelenburg functions
- Manual release for backrest for emergencies and CPR
- Easy to use handset with four pre-set positions: Welcome, relax, CPR and secured Trendelenburg
- Frame protection cover
- Easy to move with 4x 125mm braking castors
- Machine-welded steel frame, epoxy coated
- Includes central braking
- Adjustable electric footrest including battery
Specifications
| Code(s) | 66791 |
| Safe working load | 250kg |
| Overall dimensions | W 960mm L 1450mm (chair position) 2000mm (bed position) |
| Min height | 550mm |
| Max height | 950mm |
| Mattress dimensions | W 650mm L 2000mm H 100mm |
| Castor size | 125mm |
| Product weight | 80kg |
| Material | Machine-welded steel frame, epoxy coated |
| Braking | 4x braking castors |
User Manual
Information sheet
Key features
- Designed to comfortably support those undertaking chemotherapy and dialysis treatment
- Anatomic shaped armrests recline with the backrest. Adjustable to two heights, and in all directions
- Armrests fold up for side transfers
- Features a 3-sectional mattress base
- Fixed mattress made of high resilience foam (35kg/m3), thickness 100mm
- PVC coated jersey
- Electrically assisted height adjustment on 2 LINAK columns: 550 - 950mm
- Electrically adjustable backrest, and leg rest positioning and Trendelenburg functions
- Manual release for backrest for emergencies and CPR
- Easy to use handset with four pre-set positions: Welcome, relax, CPR and secured Trendelenburg
- Frame protection cover
- Easy to move with 4x 125mm braking castors
- Machine-welded steel frame, epoxy coated
- Includes central braking
- Adjustable electric footrest including battery
| Code(s) | 66791 |
| Safe working load | 250kg |
| Overall dimensions | W 960mm L 1450mm (chair position) 2000mm (bed position) |
| Min height | 550mm |
| Max height | 950mm |
| Mattress dimensions | W 650mm L 2000mm H 100mm |
| Castor size | 125mm |
| Product weight | 80kg |
| Material | Machine-welded steel frame, epoxy coated |
| Braking | 4x braking castors |
User Manual
Information sheet
Need a hand choosing the right product for you?
Our customer support team are available Monday to Friday to help answer your questions.
Related parts
-
Special order
![]()
Variable height column Actuator for BMB Clavia/Divia
- Code(s): ZZ66791029
-
Special order
![]()
Seat Frame to suit MK2 Clavia 65cm
- Code(s): ZZ66791022
-
Special order
![]()
Seat Frame to suit MK1 Clavia 70cm
- Code(s): ZZ66791021
-
Special order
![]()
Seat Frame to suit MK1 Clavia 60cm
- Code(s): ZZ66791020
-
Special order
![]()

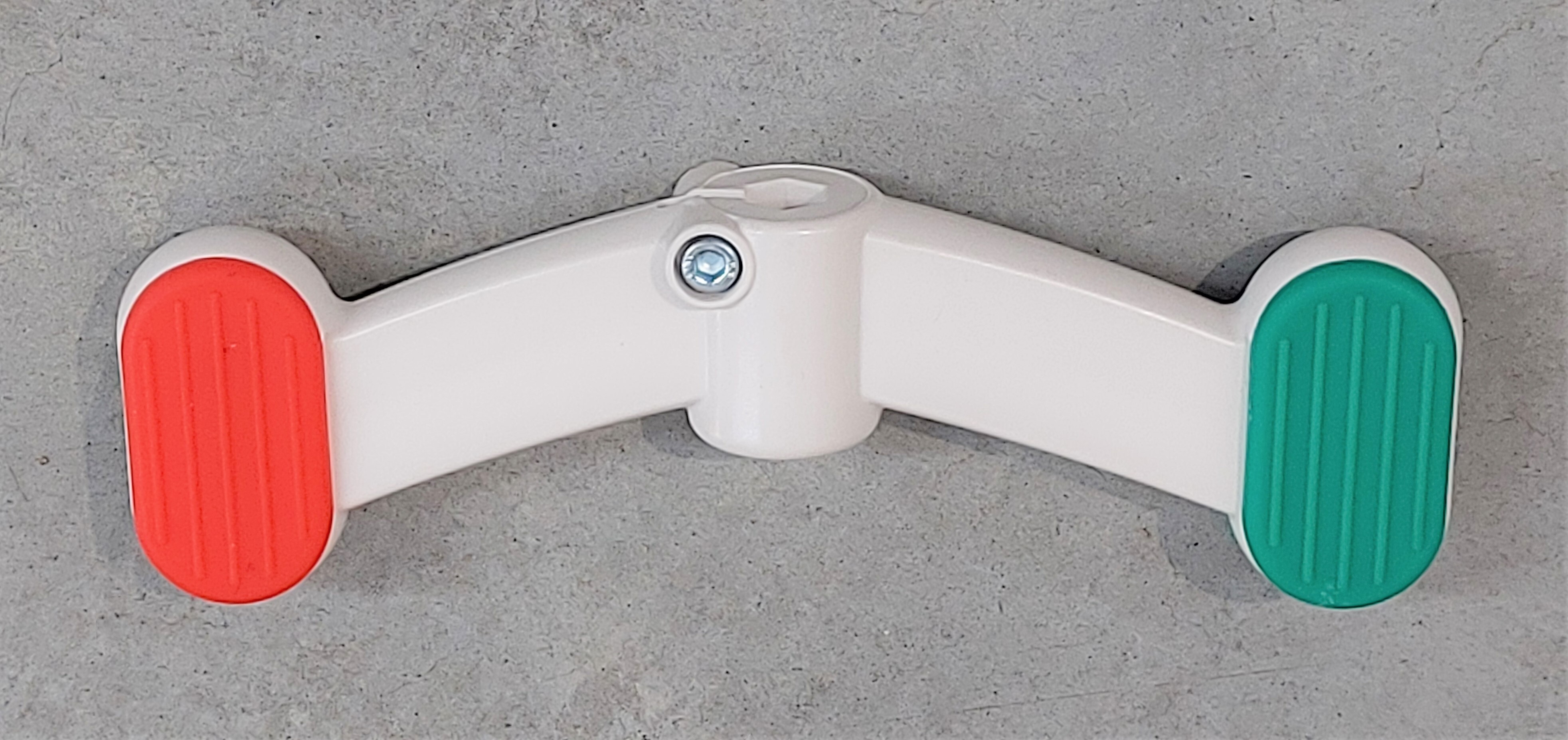

R/H Short Double Pedal for BMB Clavia FCD
- Code(s): ZZ66791003
-
Special order
![]()

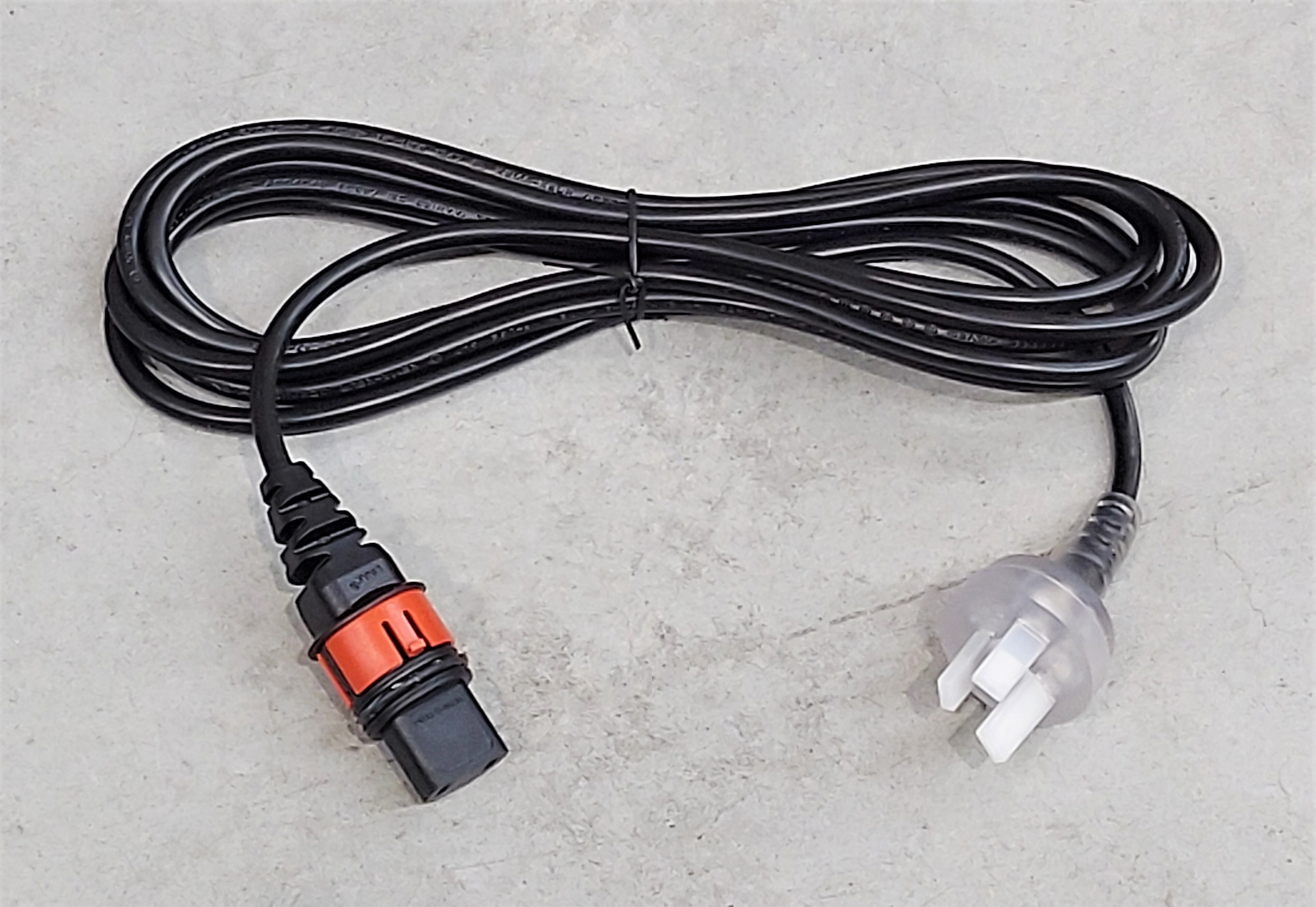

Power Cable for BMB Clavia FCD
- Code(s): ZZ66791008
-
Special order
![]()
Mattress Upholstery- 70cm Deep Ocean Mk1 for Clavia FCD
- Code(s): ZZ66791019
-
![]()
Mattress Upholstery- 65cm deep ocean Mk2 for Clavia FCD
- Code(s): ZZ66791016
-
Special order
![]()
Mattress Upholstery - 60cm Grey Mk1 for Clavia FCD
- Code(s): ZZ66791018
-
Special order
![]()

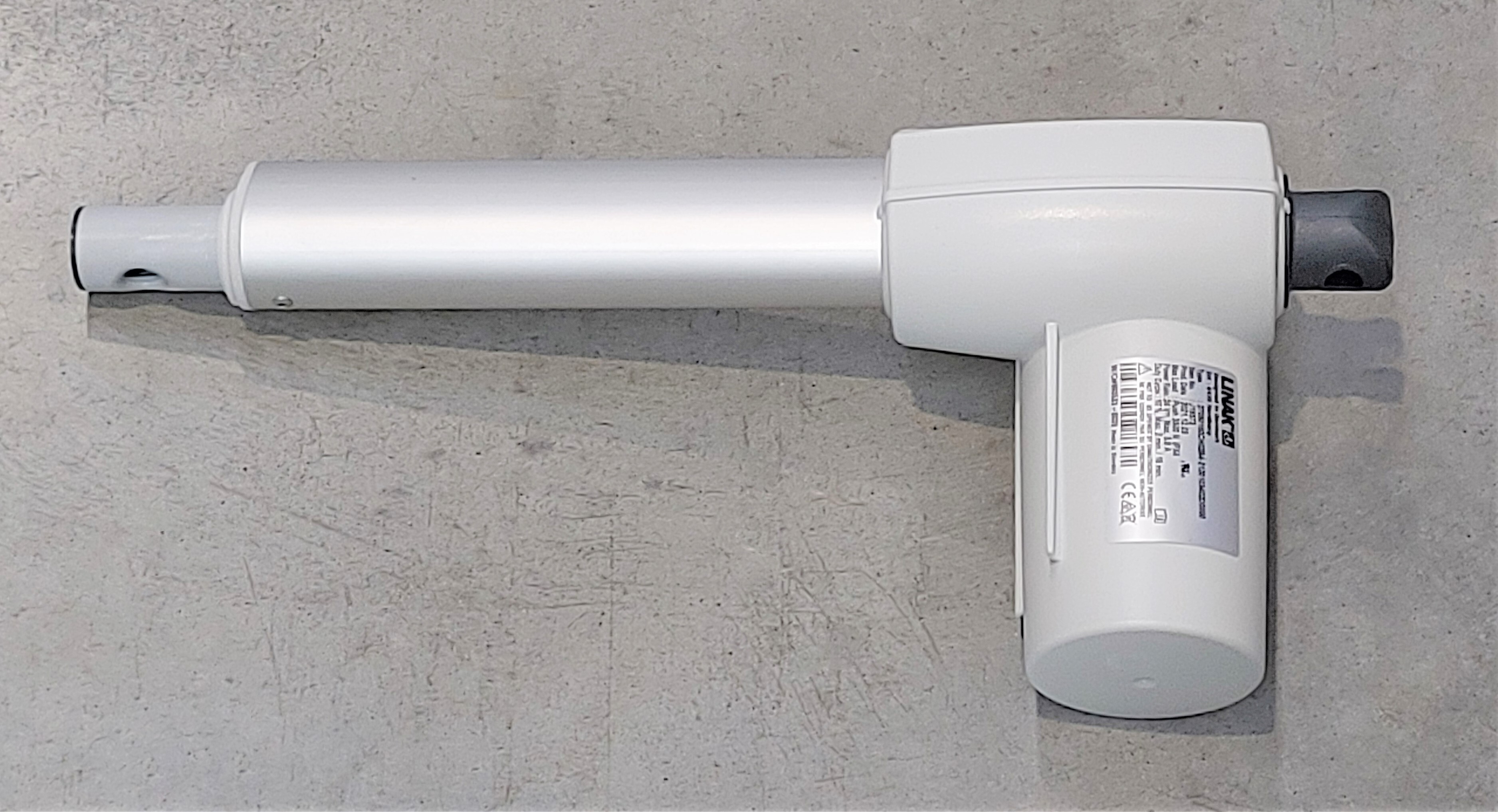

Leg Rest Actuator for BMB Clavia FCD
- Code(s): ZZ66791005
-
Special order
![]()
L/H Short Double Pedal for BMB Clavia FCD
- Code(s): ZZ66791004
-
Special order
![]()

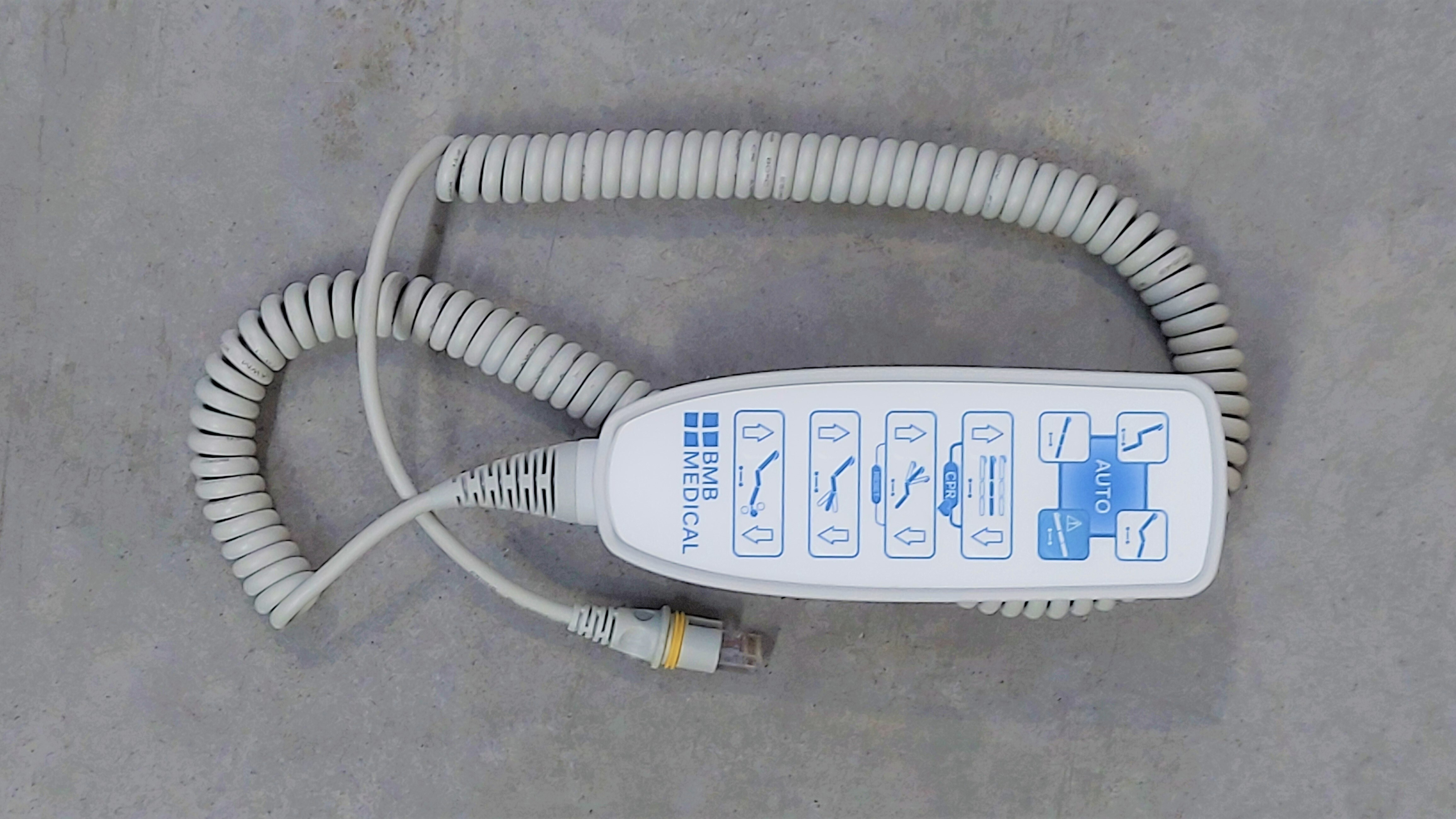

Hand Controller for BMB Clavia FCD
- Code(s): ZZ66791009
-
![]()
Foot Rest Actuator (Mk1) for BMB Clavia FCD
- Code(s): ZZ66791014
-
Special order
![]()

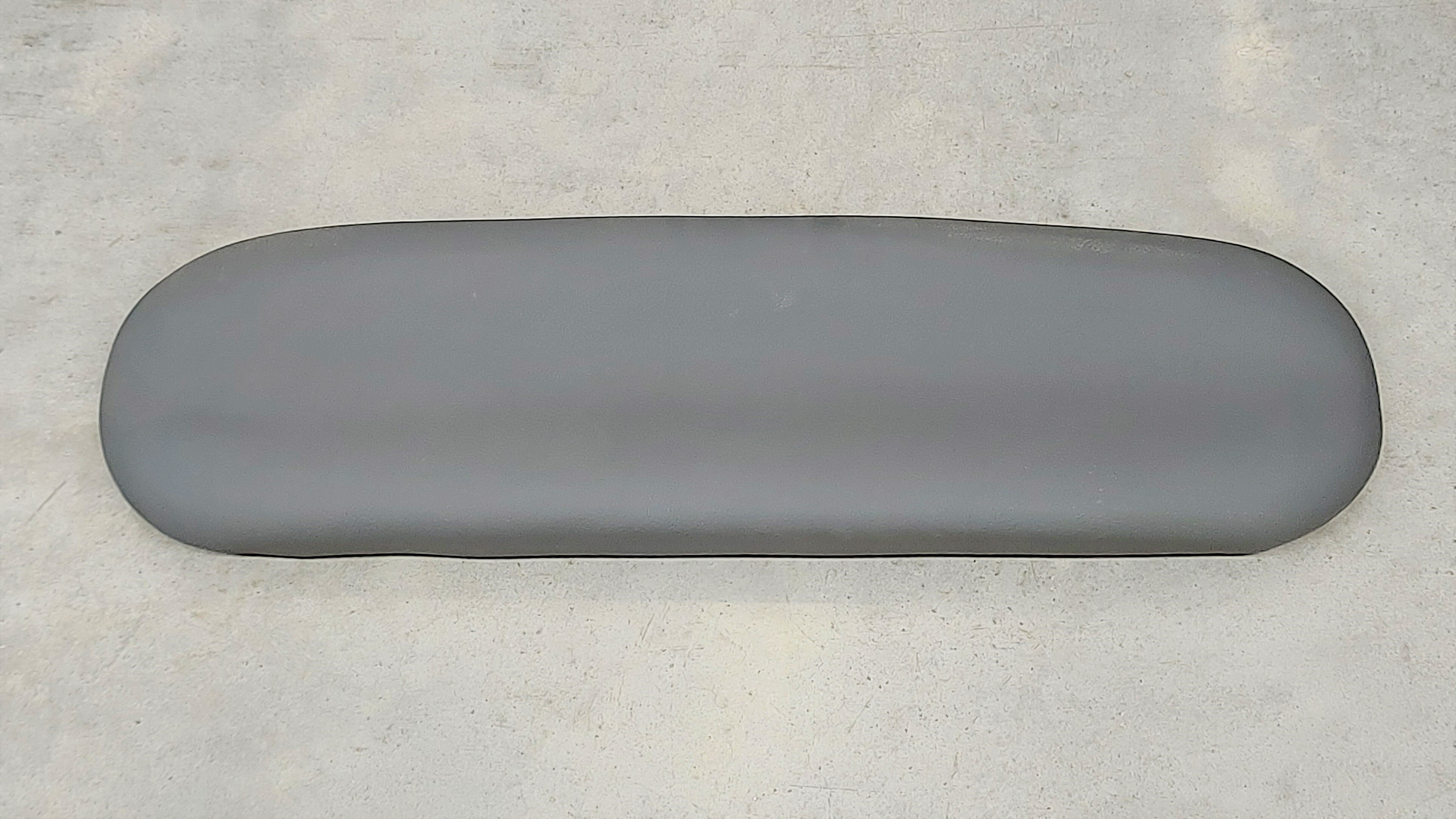

Foam Armrest for Clavia FCD
- Code(s): ZZ66791001
-
Special order
![]()
Fixed Push Bar Head-end to suit Clavia Chair
- Code(s): ZZ66791013
-
Special order
![]()

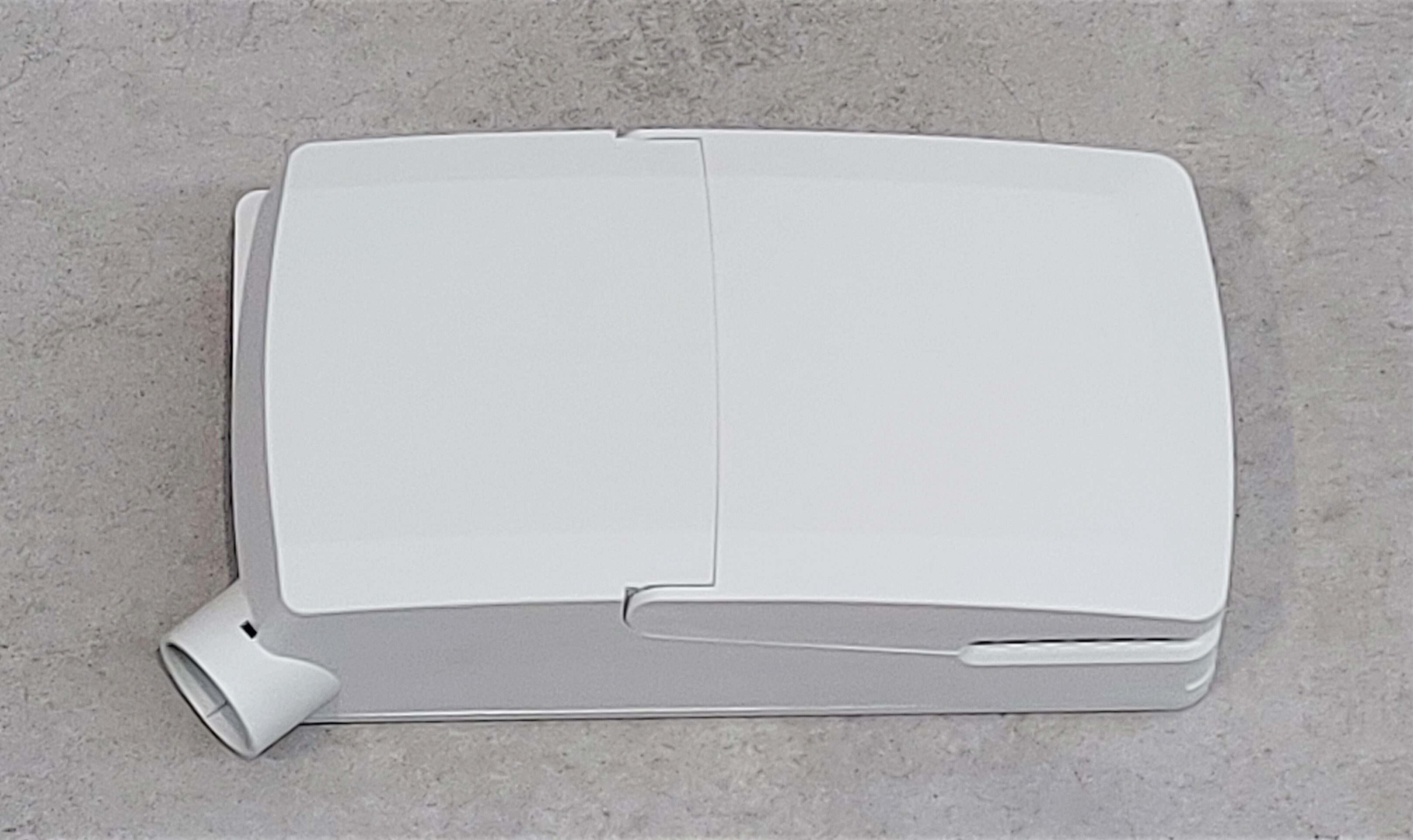

Control Box for BMB Clavia 5 FCD
- Code(s): ZZ66791007
-
Special order
![]()

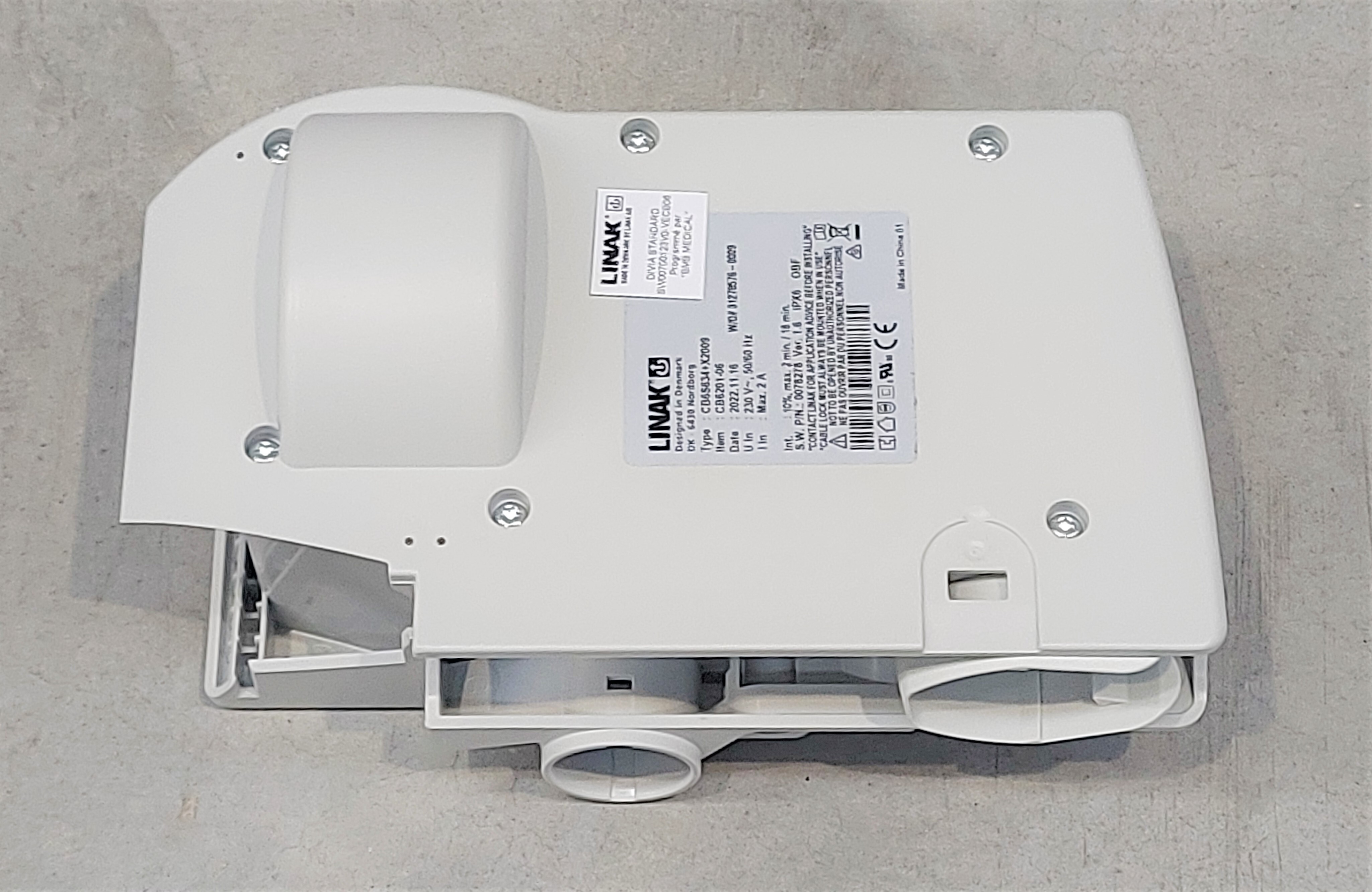

Control Box CB06 for BMB Divia/Divia Mixte
- Code(s): ZZ66791027
-
Special order
![]()

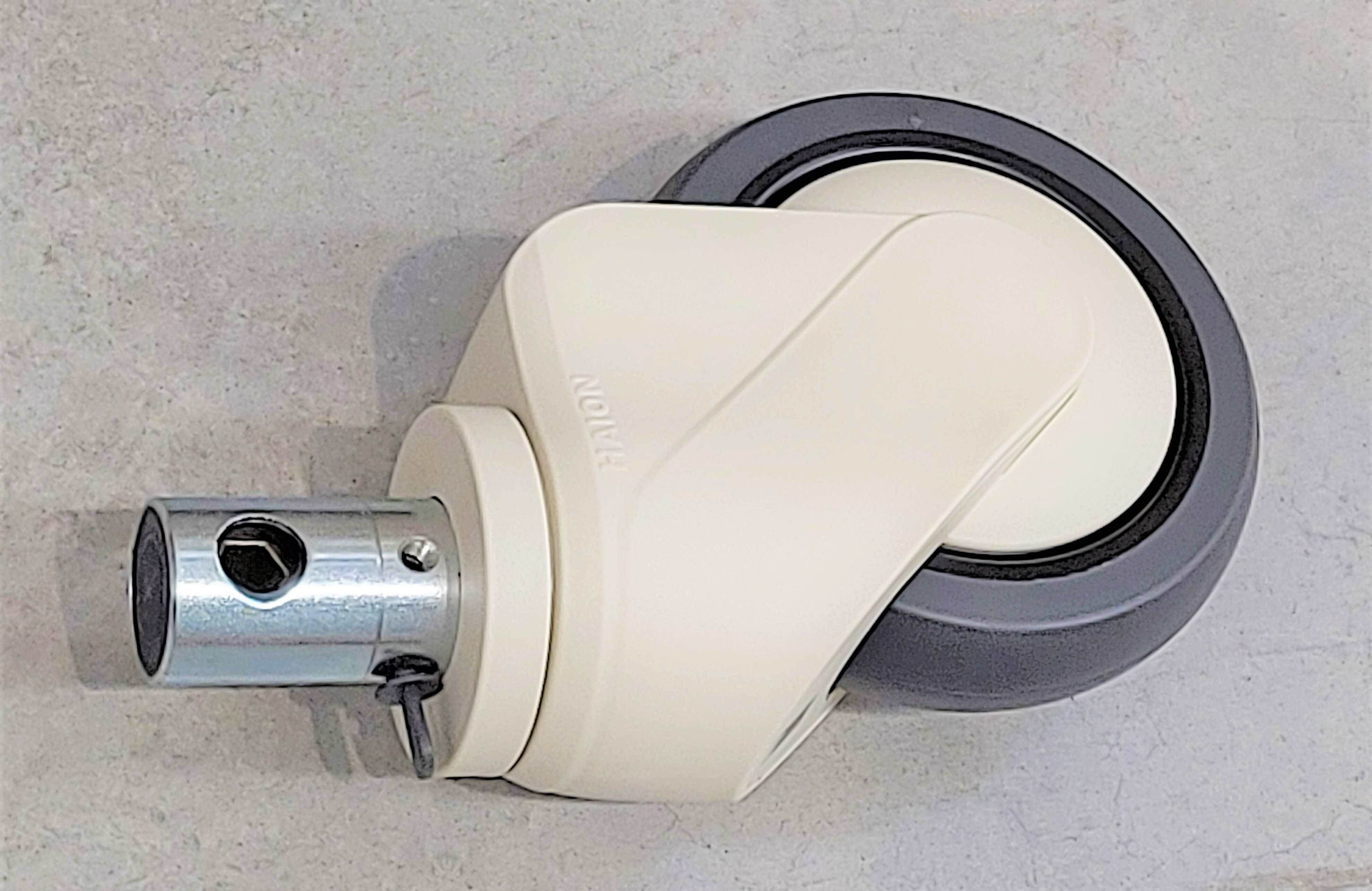

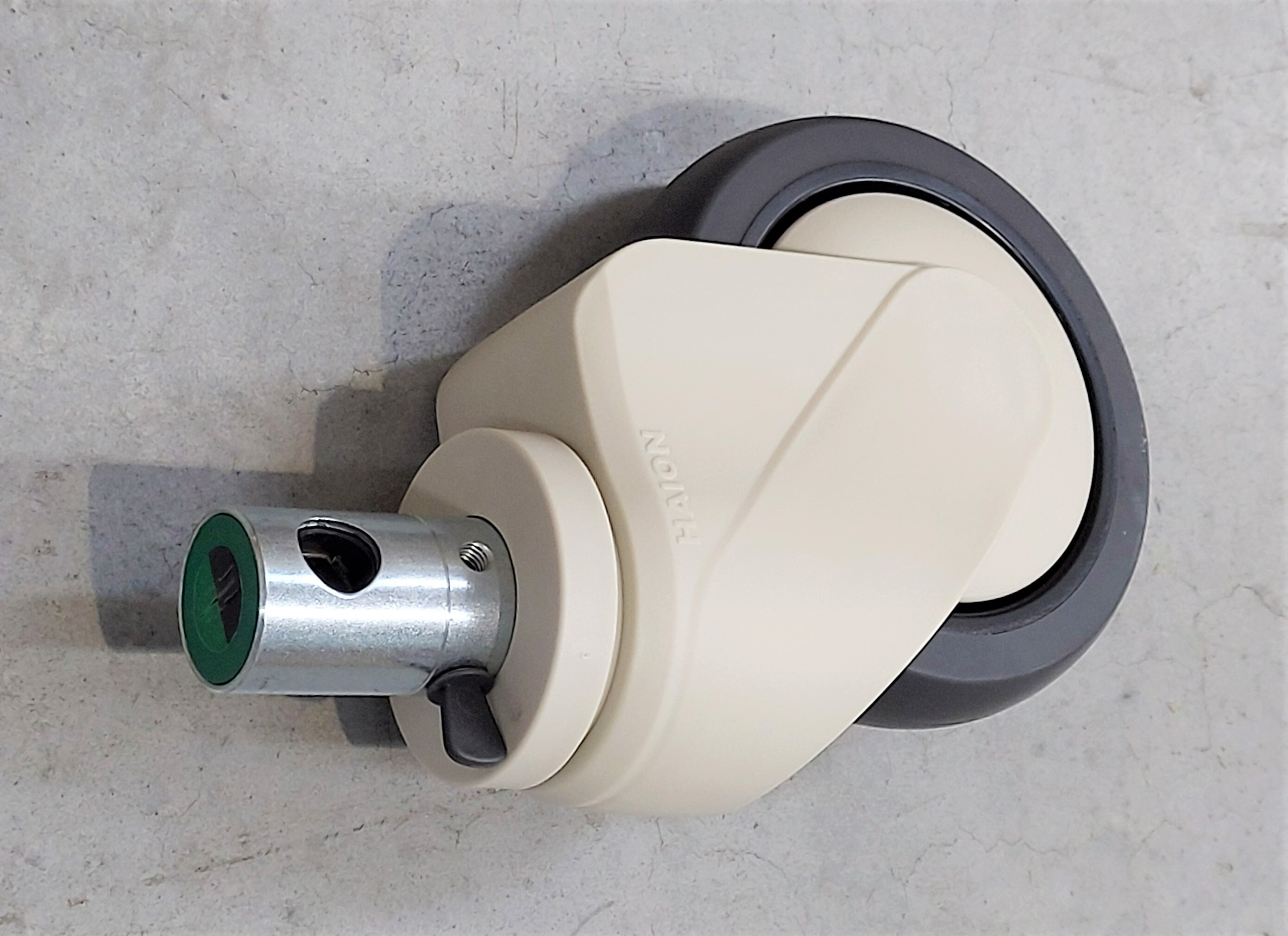

Castor 125mm 3-Function for Clavia 5 FCD (Directional)
- Code(s): ZZ66791012
-
Special order
![]()
Castor 125mm 2-Function for Clavia 5 FCD (Non-Directional)
- Code(s): ZZ66791011
-
Special order
![]()

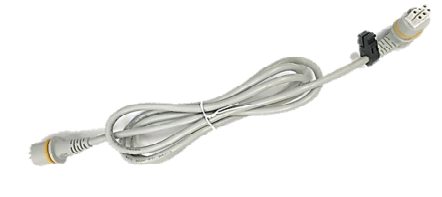

Cable Minifit 1250mm for BMB Divia
- Code(s): ZZ66791024
-
Special order
![]()

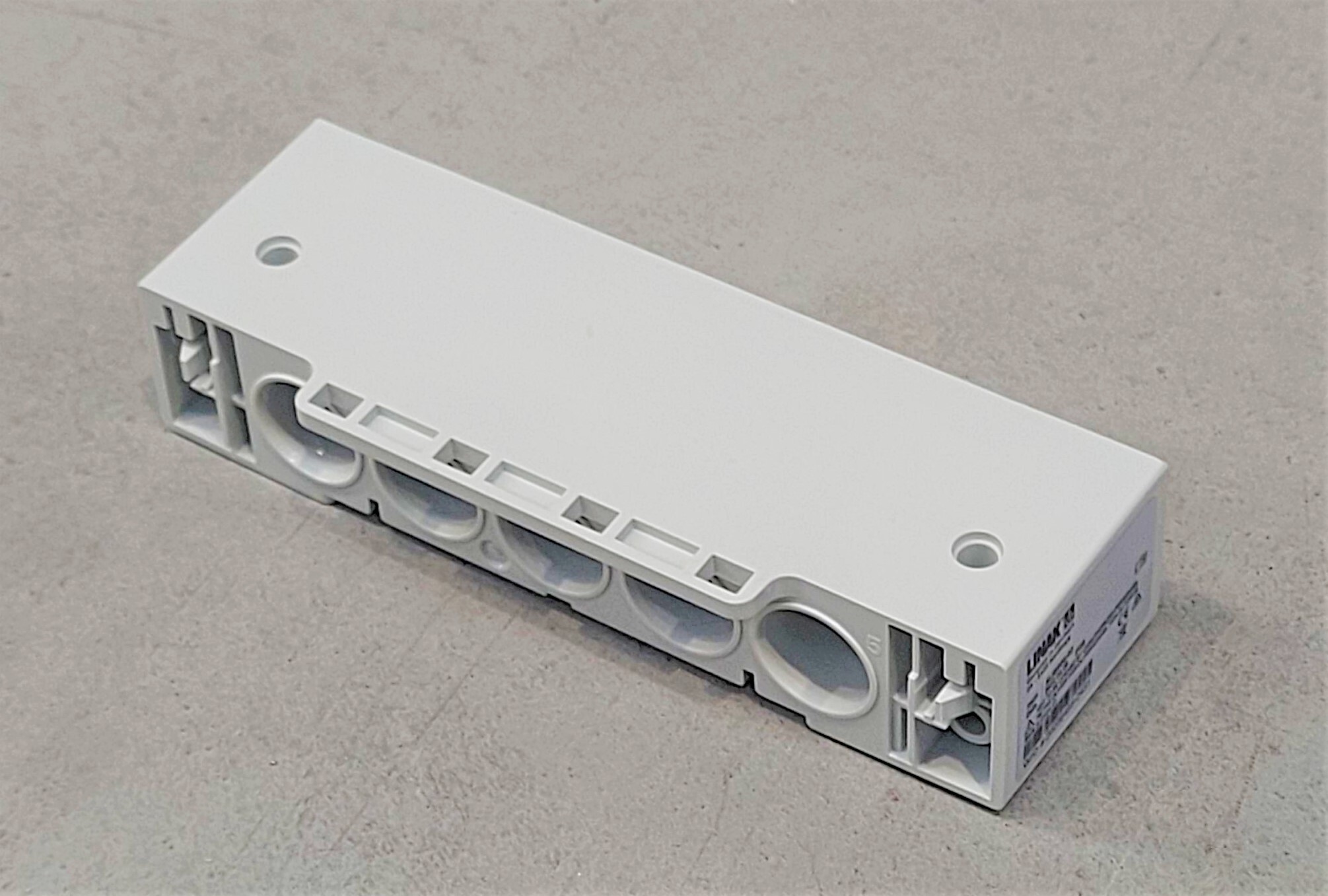

Cable Dispatcher for BMB Divia
- Code(s): ZZ66791028
-
Special order
![]()

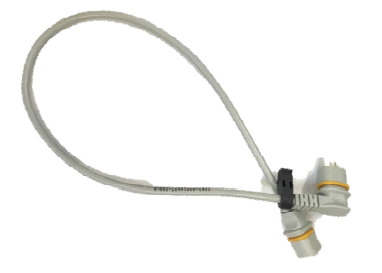

Cable Angled Minifit 750mm for BMB Divia
- Code(s): ZZ66791025
-
Special order
![]()

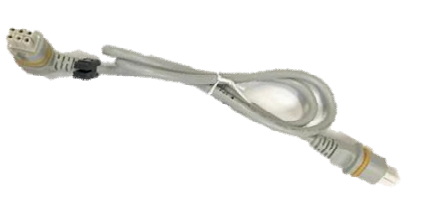

Cable Angled Minifit 500mm for BMB Divia
- Code(s): ZZ66791026
-
Special order
![]()

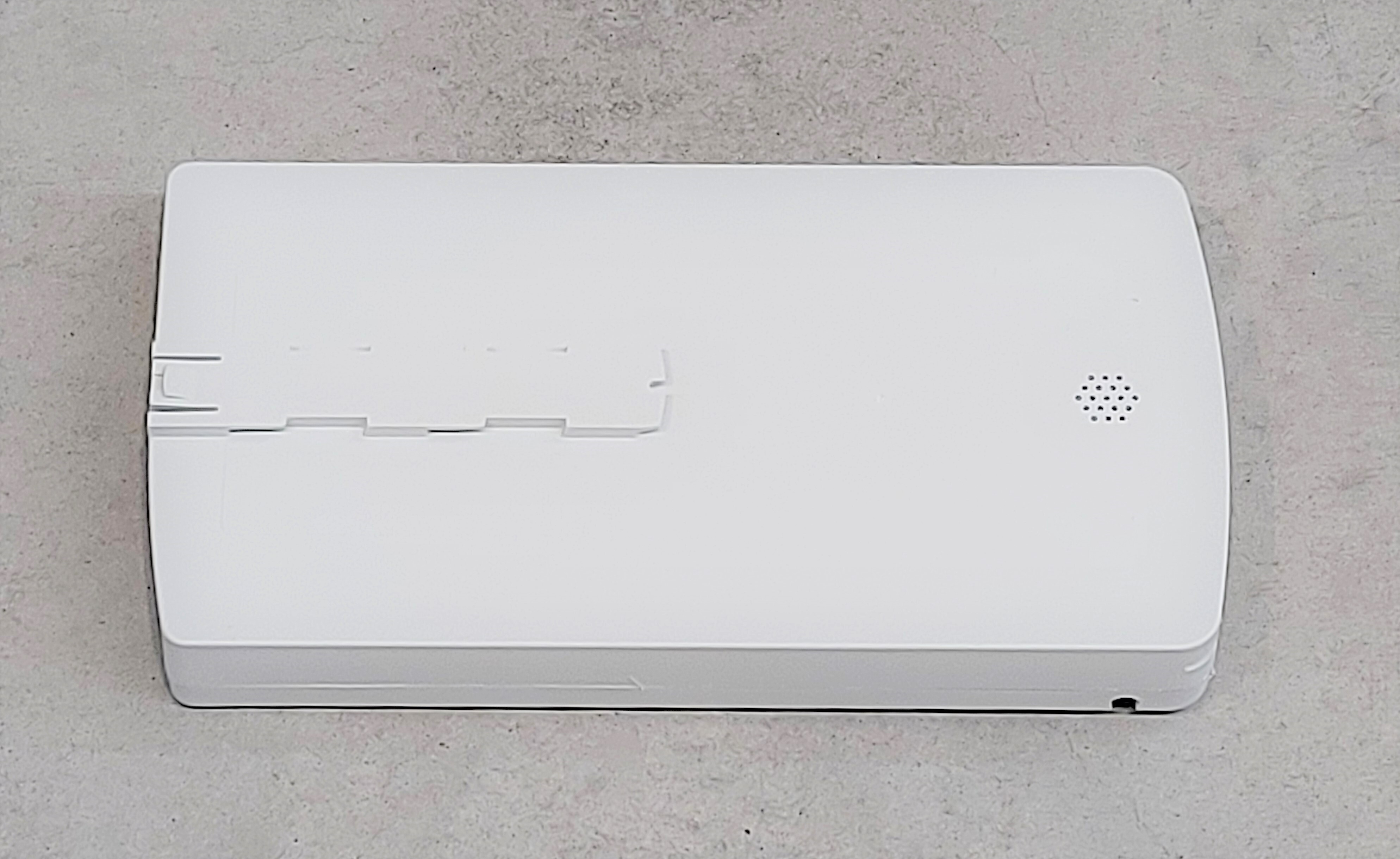

Battery Module for BMB Clavia FCD
- Code(s): ZZ66791010
-
Special order
![]()

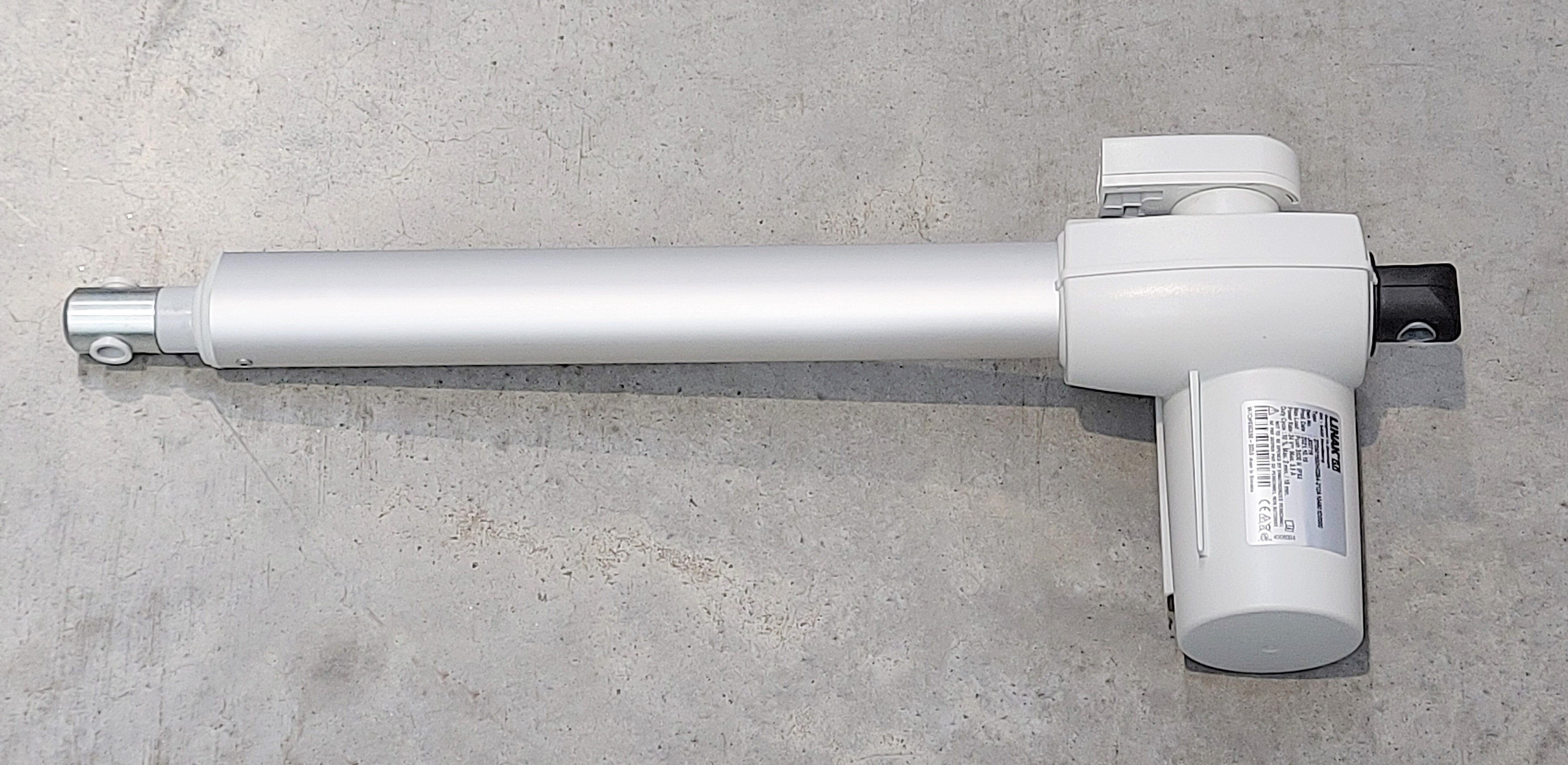

Backrest Actuator for BMB Clavia FCD
- Code(s): ZZ66791006
-
Special order
![]()
Armrest Complete for Clavia FCD (Pair L/H & R/H)
- Code(s): ZZ66791002
