Key features
- Patented dual-action suspension, fully independent 6-wheel interactive suspension with vertical shock absorption
- Compact turning radius
- Completely modular
- Low seat to floor height
- 4-pole German motors provide a smooth, responsive ride with speeds up to 10km per hour
- Multiple frame, drive wheel and caster options
- R-net expandable electronics
- Available with both independent elevating leg rests and power centre mount foot platform

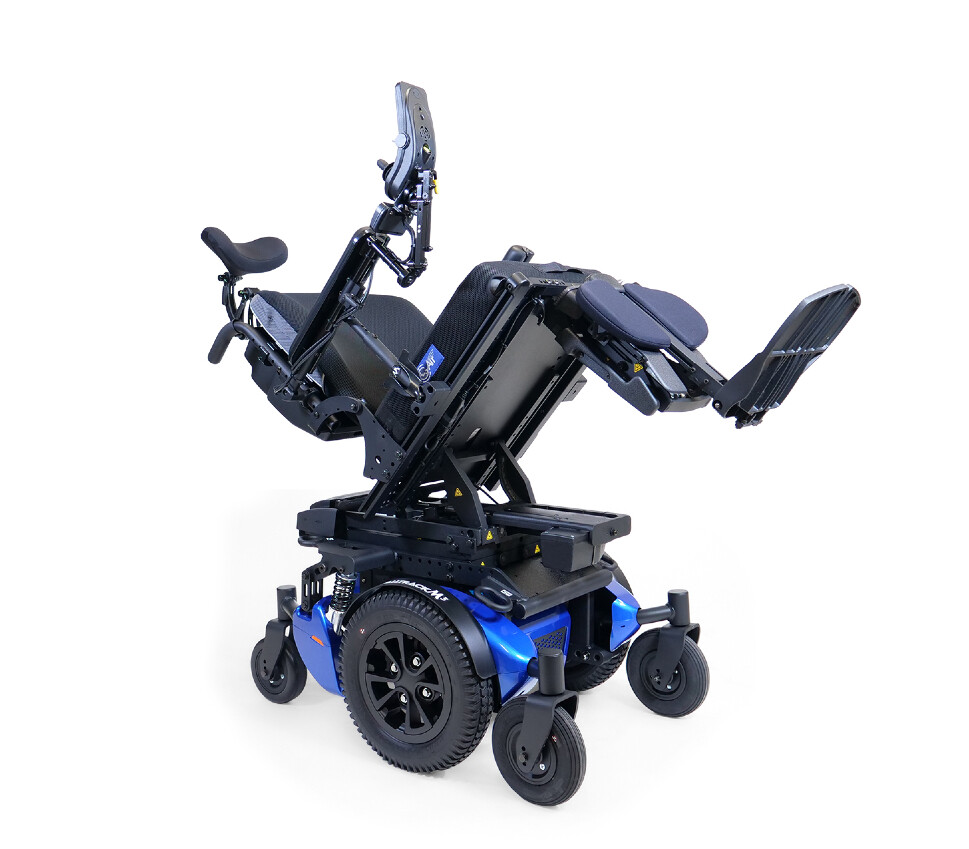

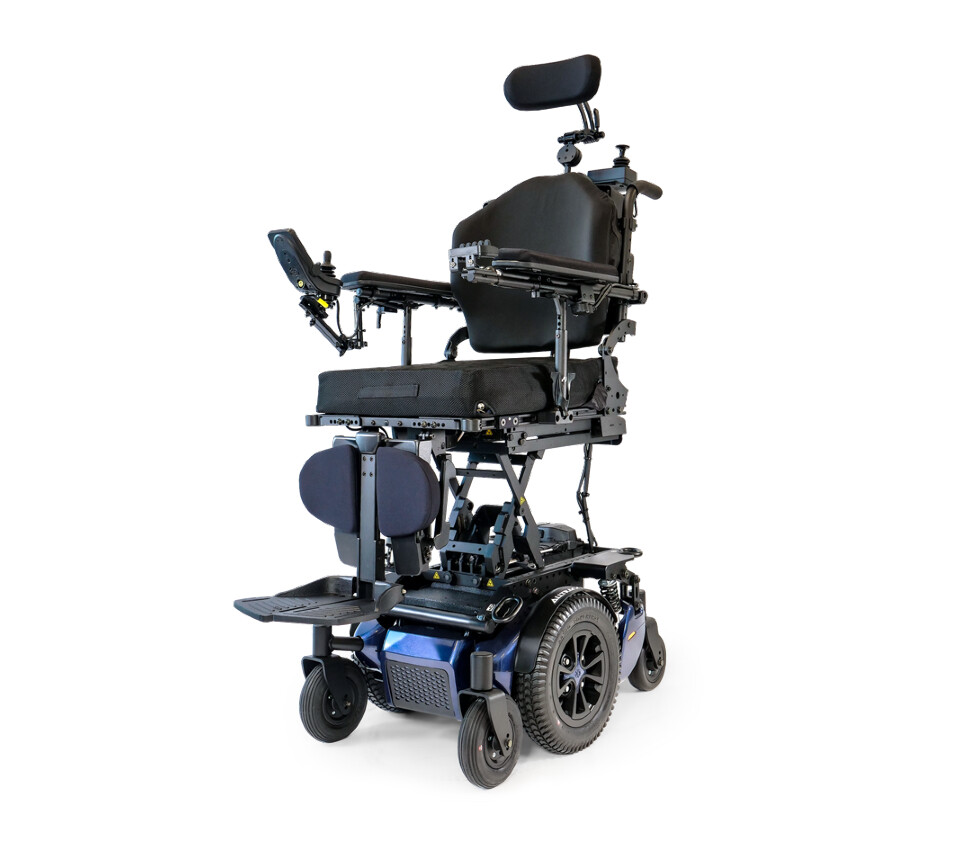

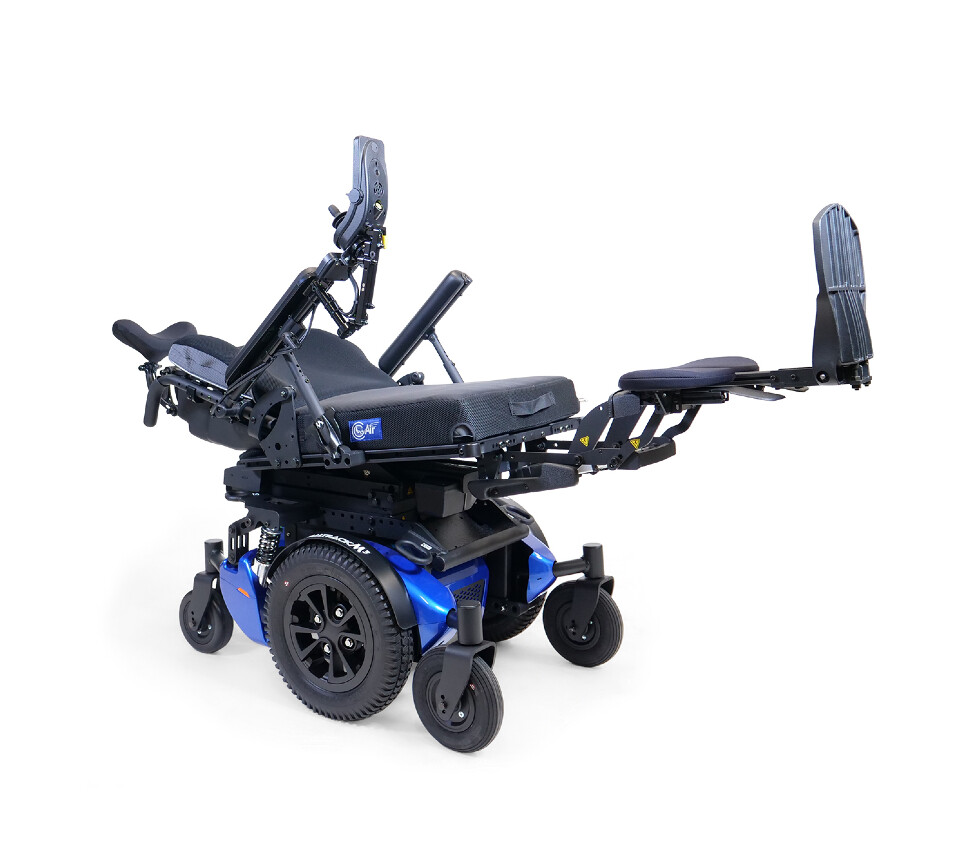

- Full 50 degree tilt, 160 degree recline and seat elevation available
Specifications
| Code(s) | 0600-0010 | 0600-0015 |
| Max. user weight | 136kg | 136kg |
| Base width | 645mm | 645mm |
| Base length | 890mm | 890mm |
| Base turning radius | 510mm | 510mm |
| Seat width | 15 - 22” | 15 - 22" |
| Seat to floor height range | 17.12" | 18.25" |
| Speed | 10km/h | 10km/h |
| Battery | 50amp | 50amp |
| Product weight | 57kg | 57kg |
