Luna portable lifter

Code(s): 10002, 10000

The Luna lifter’s total flexibility and elegant shape mark a breakthrough in innovative Scandinavian design. Luna is a portable overhead lifter. Combine Luna with a track option or the Mobile Flex for an effective, versatile system. The hooks on the spreader bar ensure safe, simple sling attachment while the ergonomic hand control enables a safe and easy transfer. The Luna is now IPx4 tested for wet environments allowing safe bathroom transfers, free of the risk of lift failure if the unit is inadvertently showered with water.

Quantity

Key features

IPX4 protection for safe transfers in wet environments
Versatility for fixed and portable uses
Easy charging via hand control
Emergency lowering functions

Specifications

Code(s)	10002	10000
Option	275kg	200kg
Safe working load	275kg	200kg
Max. lifting speed	89kg: 30mm/s up 44mm/s down	89kg: 30mm/s up 44mm/s down
Overall dimensions	W 320mm H 130mm	W 320mm H 130mm
Length of lifting strap	2200mm	2200mm
Product weight	6.7kg excludes spreader bar	6.7kg excludes spreader bar
Number of lifts per charge	50 lifts of 0.5m with 100kg	50 lifts of 0.5m with 100kg
Charging time empty to full	4 - 5 hours	4 – 5 hours

Equipment training: Gantry systems for moving and handling

Learn how gantry systems can make transfers and lifting easy with our 4 post and 2 post systems

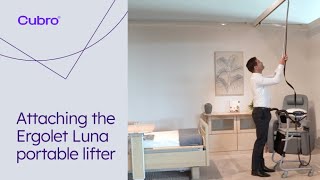

Attaching the Ergolet Luna portable lifter

How to: Use an overhead lifting hoist from a bed

How to safely use an overhead lifting hoist from a bed, including correct sling positioning and controlled lifting to support comfort and safety.

Bed to chair transfer with an overhead lifting system

This video shows how sling loop selection affects positioning during a hoist transfer from bed to recliner. It covers safe sling setup, bed profiling for comfort, colour-coded loop selection, and final safety checks before lifting and lowering the resident into a seated position.

Code(s)	10002	10000
Option	275kg	200kg
Safe working load	275kg	200kg
Max. lifting speed	89kg: 30mm/s up 44mm/s down	89kg: 30mm/s up 44mm/s down
Overall dimensions	W 320mm H 130mm	W 320mm H 130mm
Length of lifting strap	2200mm	2200mm
Product weight	6.7kg excludes spreader bar	6.7kg excludes spreader bar
Number of lifts per charge	50 lifts of 0.5m with 100kg	50 lifts of 0.5m with 100kg
Charging time empty to full	4 - 5 hours	4 – 5 hours

Equipment training: Gantry systems for moving and handling

Learn how gantry systems can make transfers and lifting easy with our 4 post and 2 post systems

Attaching the Ergolet Luna portable lifter

How to: Use an overhead lifting hoist from a bed

How to safely use an overhead lifting hoist from a bed, including correct sling positioning and controlled lifting to support comfort and safety.

Bed to chair transfer with an overhead lifting system

Need a hand choosing the right product?

Our customer support team is available Monday to Friday to answer your questions.

Let's talk

Related parts

Ergolet 2-point Spreader Bar to suit bayonet - 48cm wide
- Code(s): 10044
View
Special order

Transformer plug to suit the 6440 hoist
- Code(s): ZZ6440003
Strap Outlet for Luna (IPX4)
- Code(s): ZZ10000014
Special order

Potentiometer to suit Luna (IPX4)
- Code(s): ZZ10000003
Special order

PCB to suit Luna (IPX4) 275kg (1ch type)
- Code(s): ZZ10000006
PCB to suit Luna (IPX4) 200kg (1ch type)
- Code(s): ZZ10000001
Special order

NZ plug to suit the Transformer for 6440 hoist
- Code(s): ZZ6440011
Motor and Gear to suit Luna (IPX4) Hoist modules
- Code(s): ZZ10000012
Luna hand controller - Bottom exit cable
- Code(s): 10021
Luna charger unit with wall mounted docking station
- Code(s): 10035
Luna (IPX4)Top & Bottom Covers inc Handle Mk2 (no cut-outs)
- Code(s): ZZ10000010
Luna (IPX4) Membrane to suit 8 Pin handset
- Code(s): ZZ10000008
Lifting strap with hook to Suit Luna (IPX4)
- Code(s): ZZ10000004
Charger station Cable 1.85m
- Code(s): ZZ6440001
Battery pack to suit Luna (IPX4)
- Code(s): ZZ10000005
