Key features
- Versatile standing frame that supports multiple standing positions such as prone, upright, or supine
- Offers up to 30 degrees of hip abduction in each leg, which can potentially benefit hip development in children with cerebral palsy
- Comes in three different sizes, making it suitable for children ranging from approximately 700mm to 1650mm in height

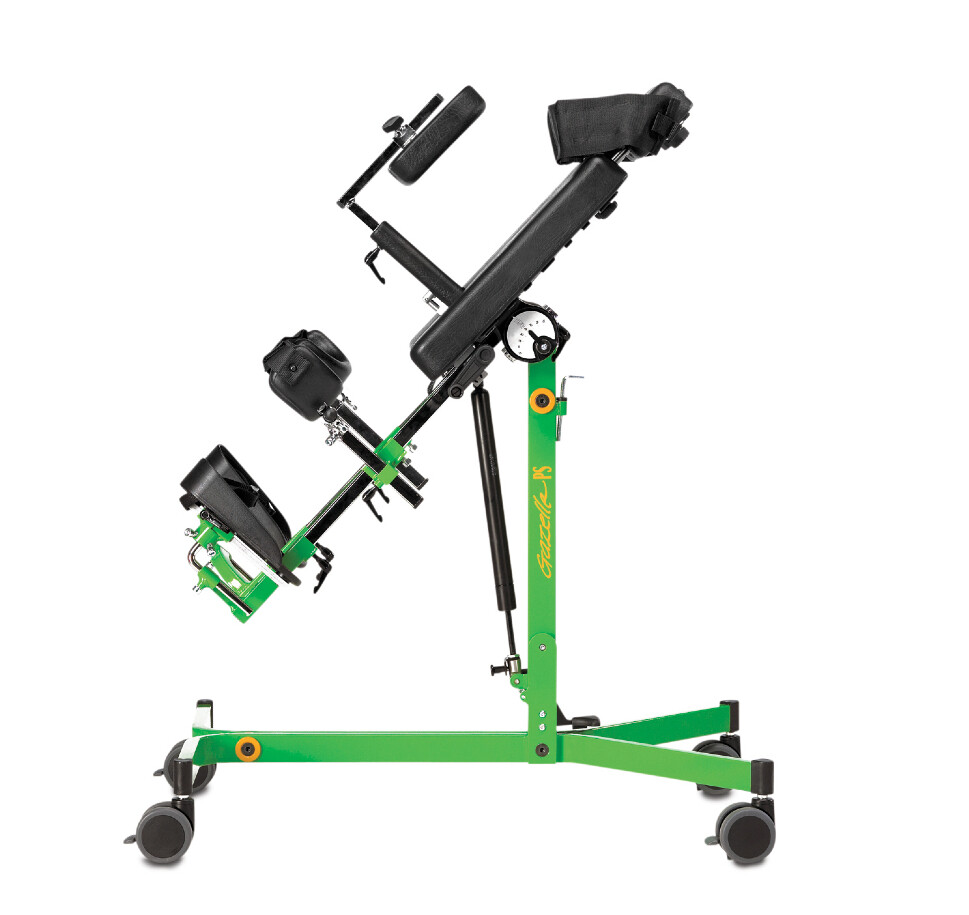

- The Gazelle PS tilts from vertical to 15° past horizontal. This is an excellent position for respiratory therapy and postural drainage.

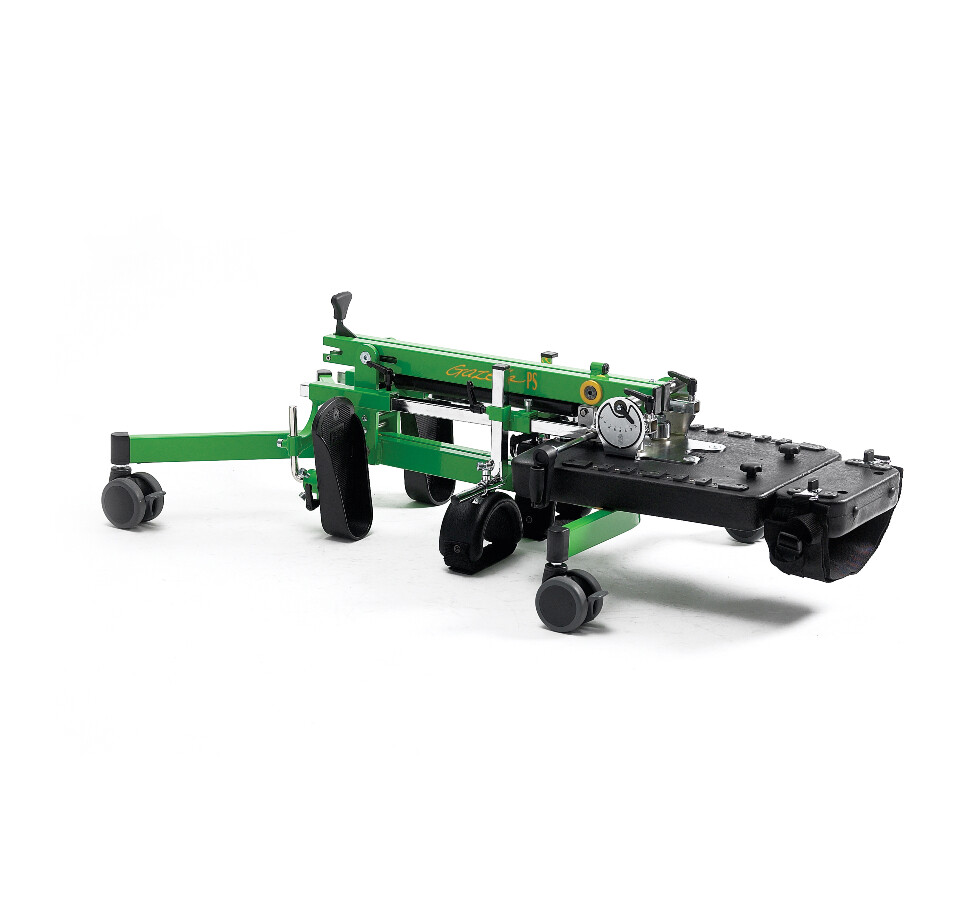

- Foldable: From the upright position the Gazelle PS is easily folded. By loosening only one screw, abducting the legs and by lifting it slightly, the Gazelle PS is folded for storage or transportation.
- Manual leg adduction, you can adjust either one or both legs to the optimal angle
- Multi adjustable foot supports
Specifications
| Code(s) | 0500-88010-1 | 0500-88010-2 | 0500-88010-3 |

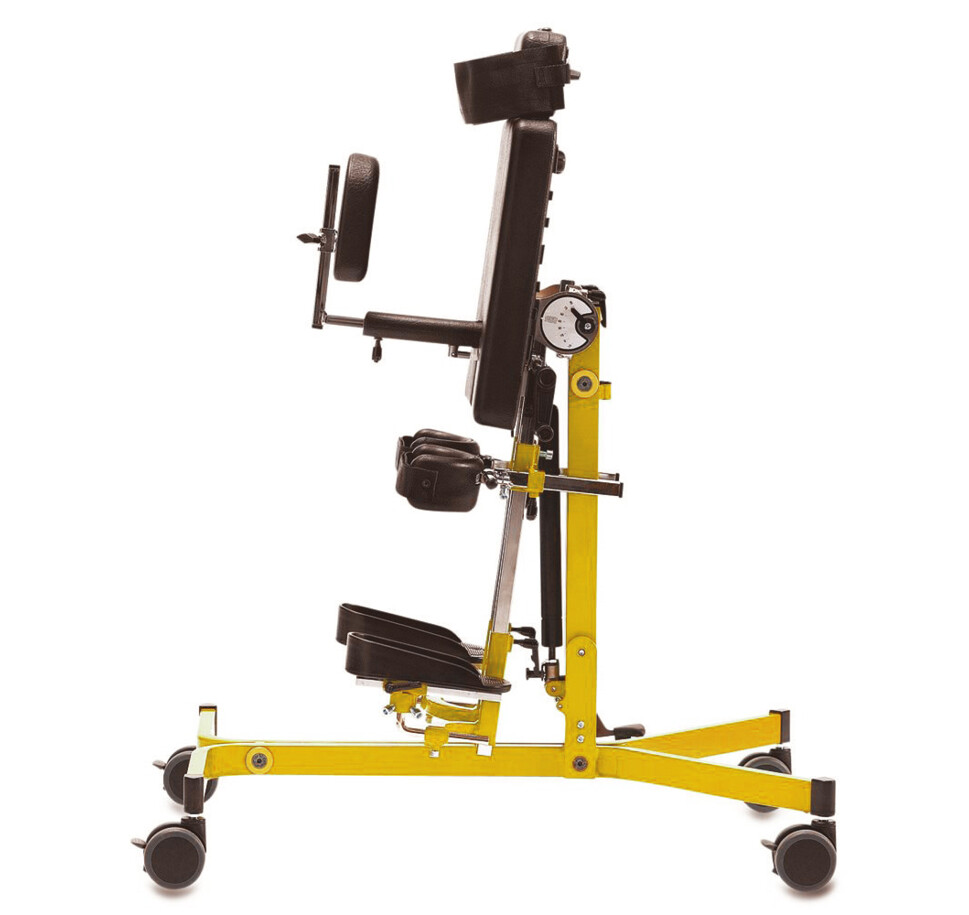

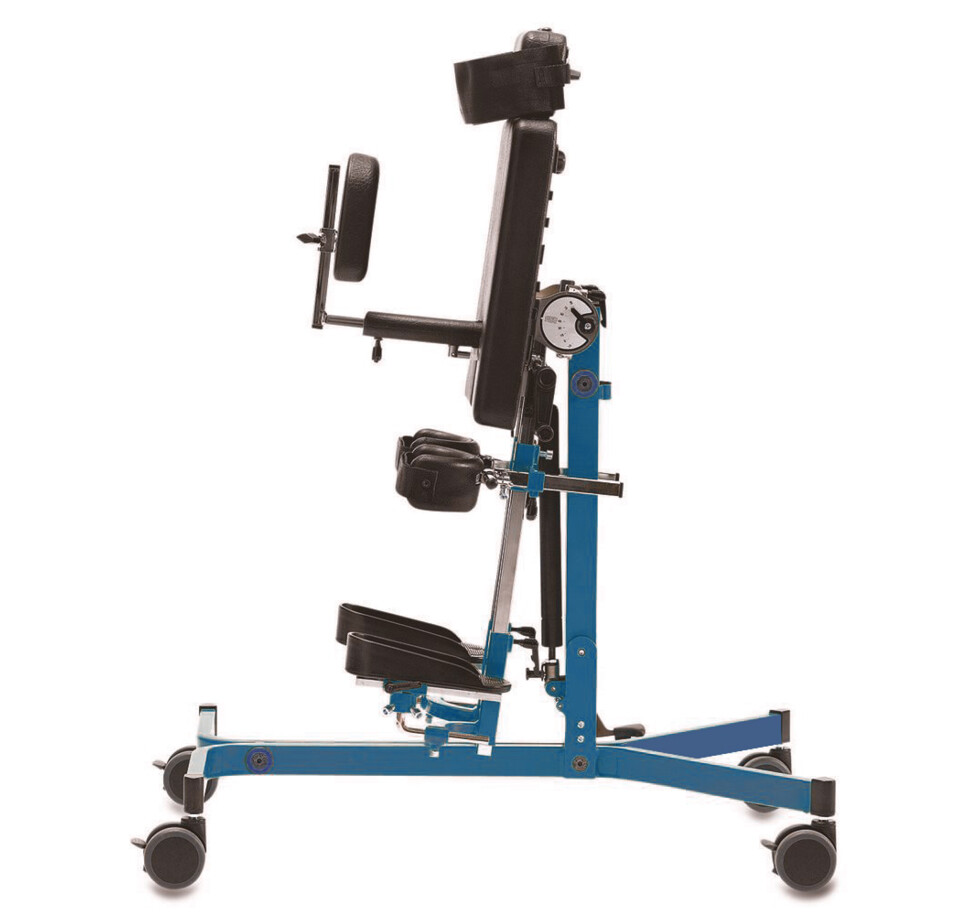

| Option | Size 1 - yellow | Size 2 - green | Size 3 - blue |
| Size | 1 | 2 | 3 |
| Overall dimensions | W 480mm L 760mm H 760mm | W 580mm L 880mm H 800mm | W 650mm L 990mm H 900mm |
| Product weight | 20kg | 22kg | 24kg |
| Angle board | 90 - (-15)° | 90 - (-15)° | 90 - (-15)° |
| Safe working load | 62kg | 85kg | 106kg |
| Max. user weight | 40kg | 60kg | 80kg |
| User height (floor to axil) | 450 - 950mm | 600 - 1050mm | 700 - 1250mm |
User manual
Information sheet
R82 Gazelle PS standing frame
Key features
- Versatile standing frame that supports multiple standing positions such as prone, upright, or supine
- Offers up to 30 degrees of hip abduction in each leg, which can potentially benefit hip development in children with cerebral palsy
- Comes in three different sizes, making it suitable for children ranging from approximately 700mm to 1650mm in height
- The Gazelle PS tilts from vertical to 15° past horizontal. This is an excellent position for respiratory therapy and postural drainage.
- Foldable: From the upright position the Gazelle PS is easily folded. By loosening only one screw, abducting the legs and by lifting it slightly, the Gazelle PS is folded for storage or transportation.
- Manual leg adduction, you can adjust either one or both legs to the optimal angle
- Multi adjustable foot supports
| Code(s) | 0500-88010-1 | 0500-88010-2 | 0500-88010-3 |
| Option | Size 1 - yellow | Size 2 - green | Size 3 - blue |
| Size | 1 | 2 | 3 |
| Overall dimensions | W 480mm L 760mm H 760mm | W 580mm L 880mm H 800mm | W 650mm L 990mm H 900mm |
| Product weight | 20kg | 22kg | 24kg |
| Angle board | 90 - (-15)° | 90 - (-15)° | 90 - (-15)° |
| Safe working load | 62kg | 85kg | 106kg |
| Max. user weight | 40kg | 60kg | 80kg |
| User height (floor to axil) | 450 - 950mm | 600 - 1050mm | 700 - 1250mm |
User manual
Information sheet
R82 Gazelle PS standing frame
Accessories
-
![R82 Gazelle PS trunk support extension]()
R82 Gazelle PS trunk support extension
- Code(s): 0500-88106-1, 0500-88106-2, 0500-88106-3
-
![R82 Gazelle PS tray with bowl and cover]()
R82 Gazelle PS tray with bowl and cover
- Code(s): 0500-88108-0, 0500-88108-1
-
![R82 Gazelle PS lower leg angling kit]()
R82 Gazelle PS lower leg angling kit
- Code(s): 0500-88165-1, 0500-88165-2, 0500-88165-3
-
![R82 Gazelle PS laterals]()
R82 Gazelle PS laterals
- Code(s): 0500-88055-1, 0500-88055-2
-
![R82 Gazelle PS interior laterals]()
R82 Gazelle PS interior laterals
- Code(s): 0500-88075-1, 0500-88075-2
-
![R82 Gazelle PS head support mounting]()
R82 Gazelle PS head support mounting
- Code(s): 0500-88130
-
![R82 Gazelle PS facial aperture head support]()
R82 Gazelle PS facial aperture head support
- Code(s): 0500-88117-1, 0500-88117-2, 0500-88117-3
-
![R82 Gazelle PS facial aperture anatomic head support]()
R82 Gazelle PS facial aperture anatomic head support
- Code(s): 0500-88119-1, 0500-88119-2
-
![R82 Gazelle PS exterior laterals]()
R82 Gazelle PS exterior laterals
- Code(s): 0500-88065-1, 0500-88065-2
