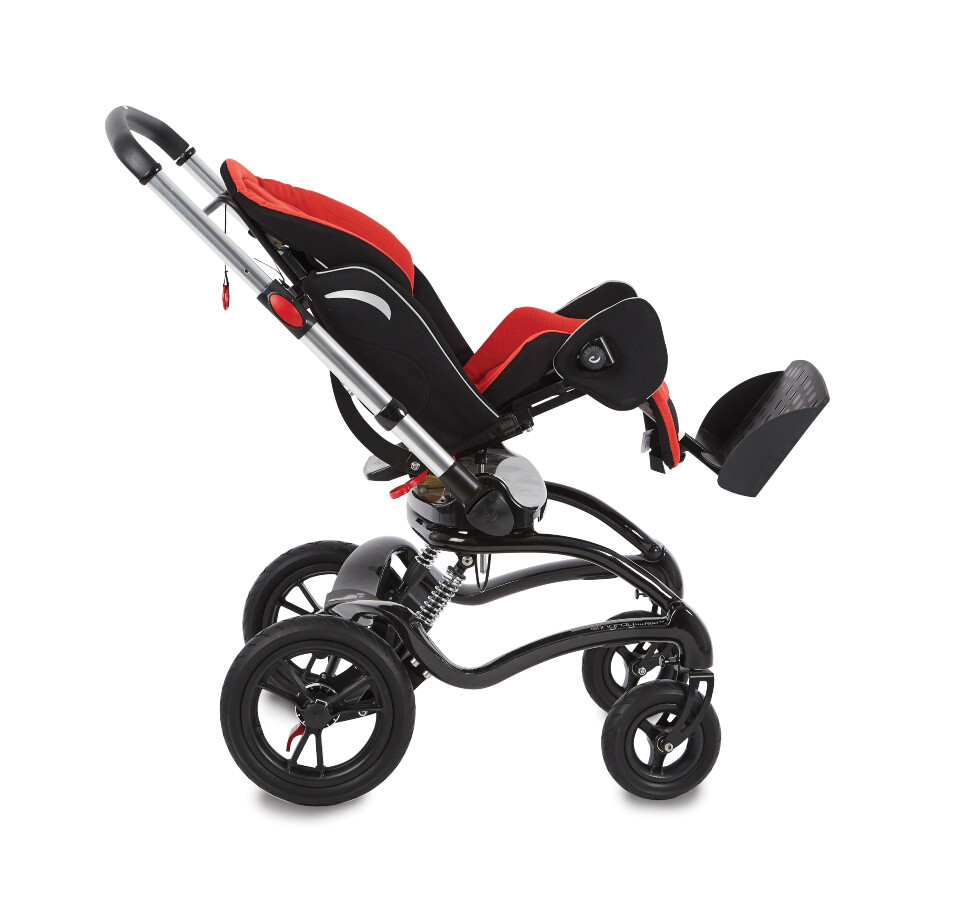

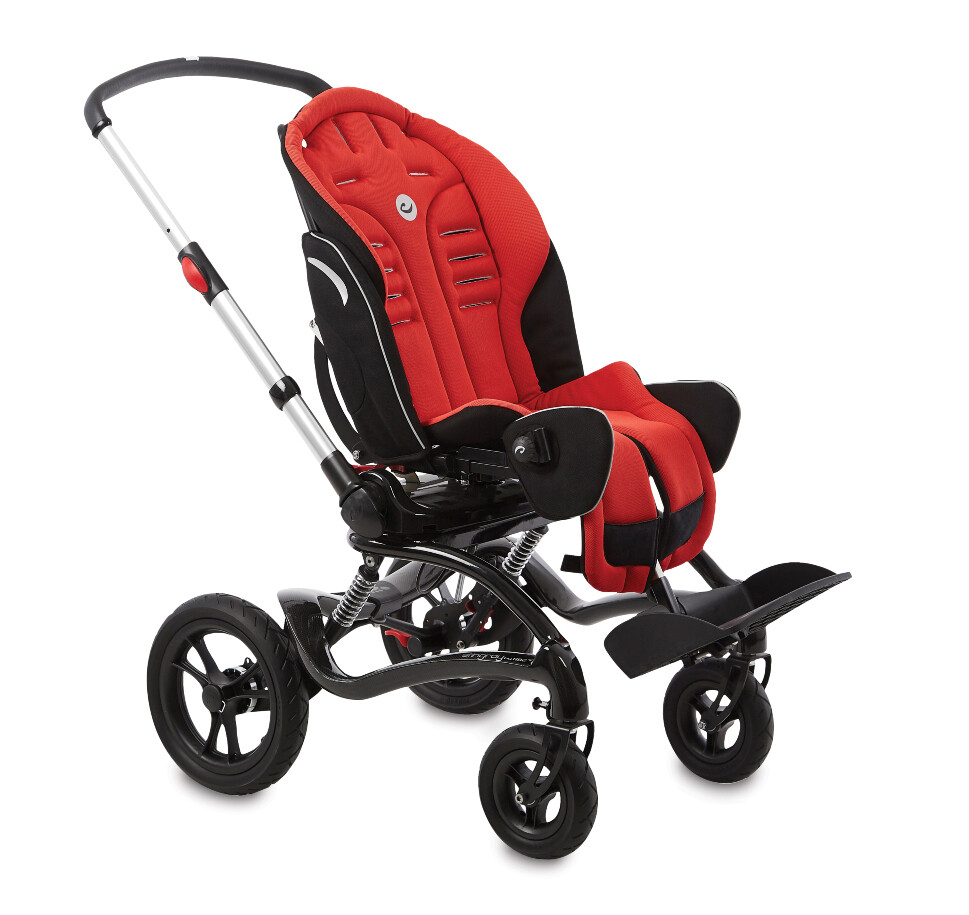

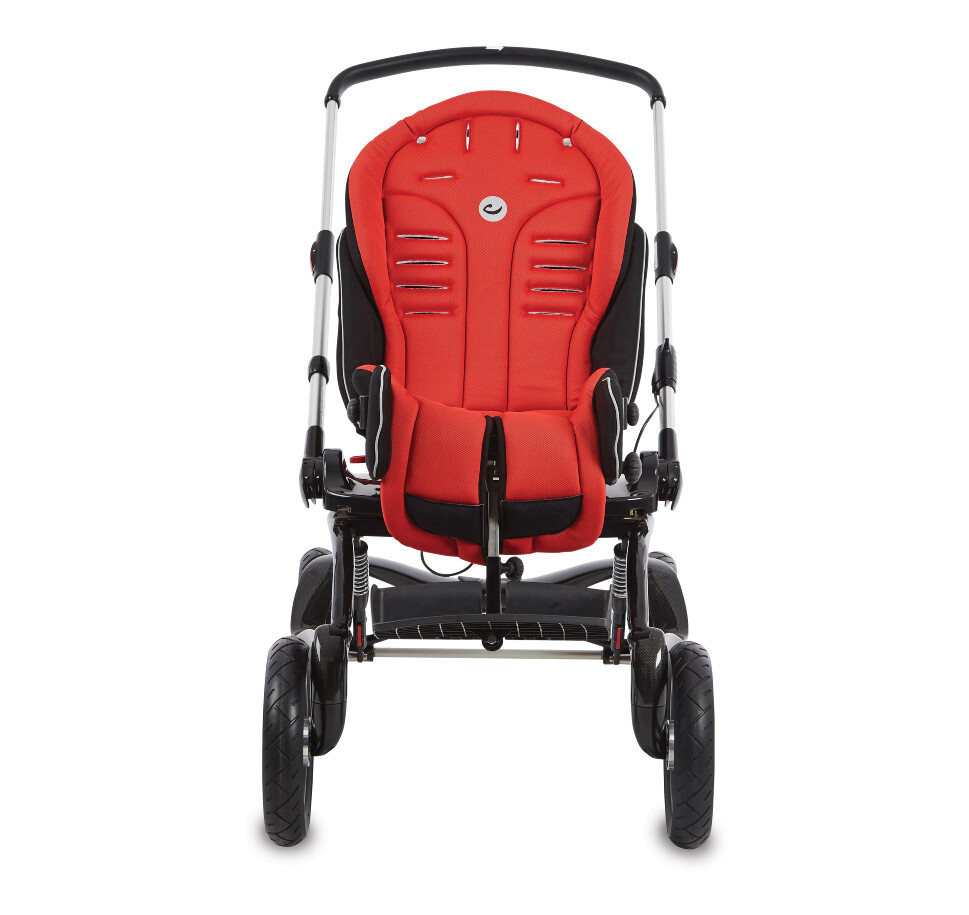

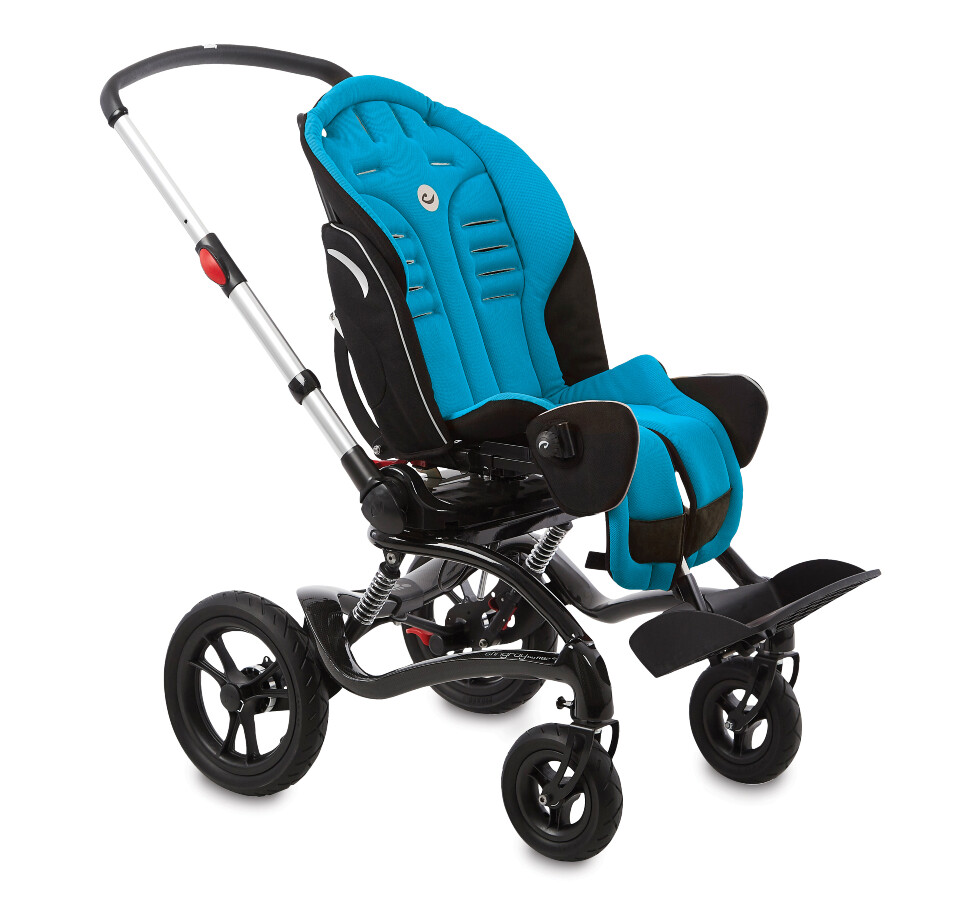

R82 Stingray buggy with central braking

Code(s): 0500-8705000, 0500-8705002, 0500-8705001, 0500-8705003

The R82 Stingray is a unique, stylish and versatile buggy with a tool-free adjustable postural support. It has a swivel action for forward and rearward-facing options. The carbon frame makes it perfect for families on the go, while prioritising adjustments, comfort, and light steering. The 180° turnable seat allows easy switching between positions. Safety is a top priority with its excellent driving properties, superior suspension, matched with reliable central braking.

Quantity

Key features

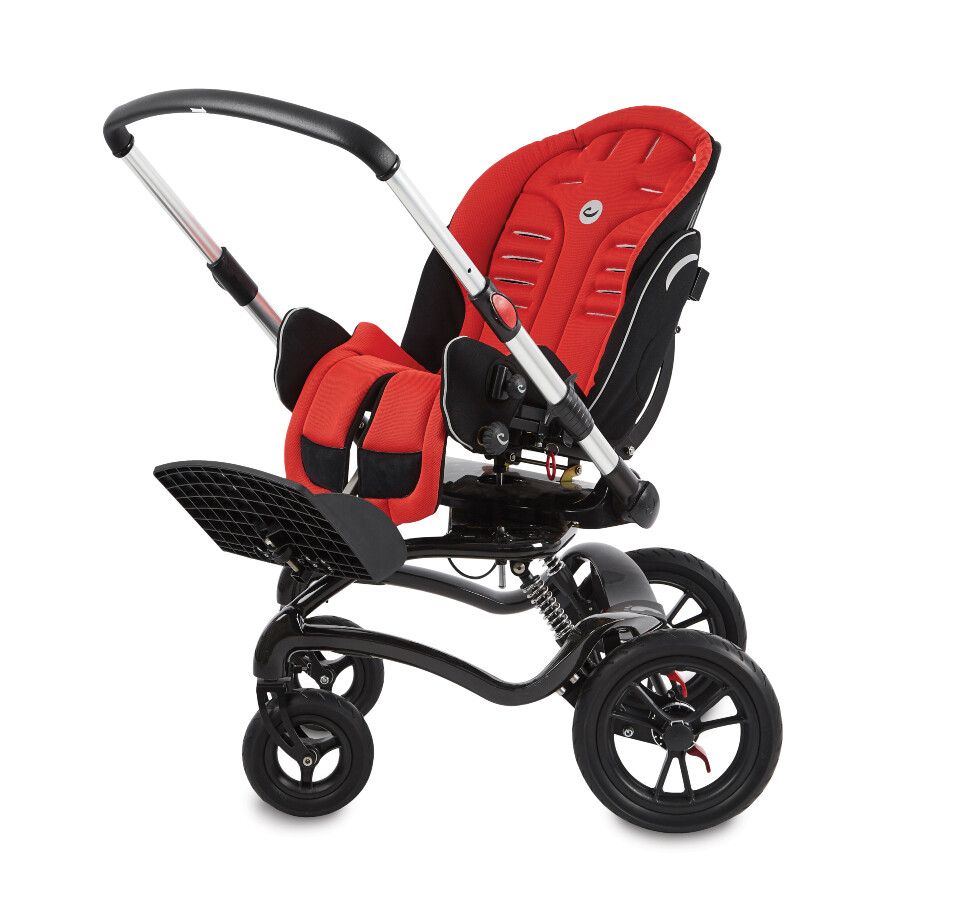

180° turnable seat allows your child to explore surroundings and make eye contact with you

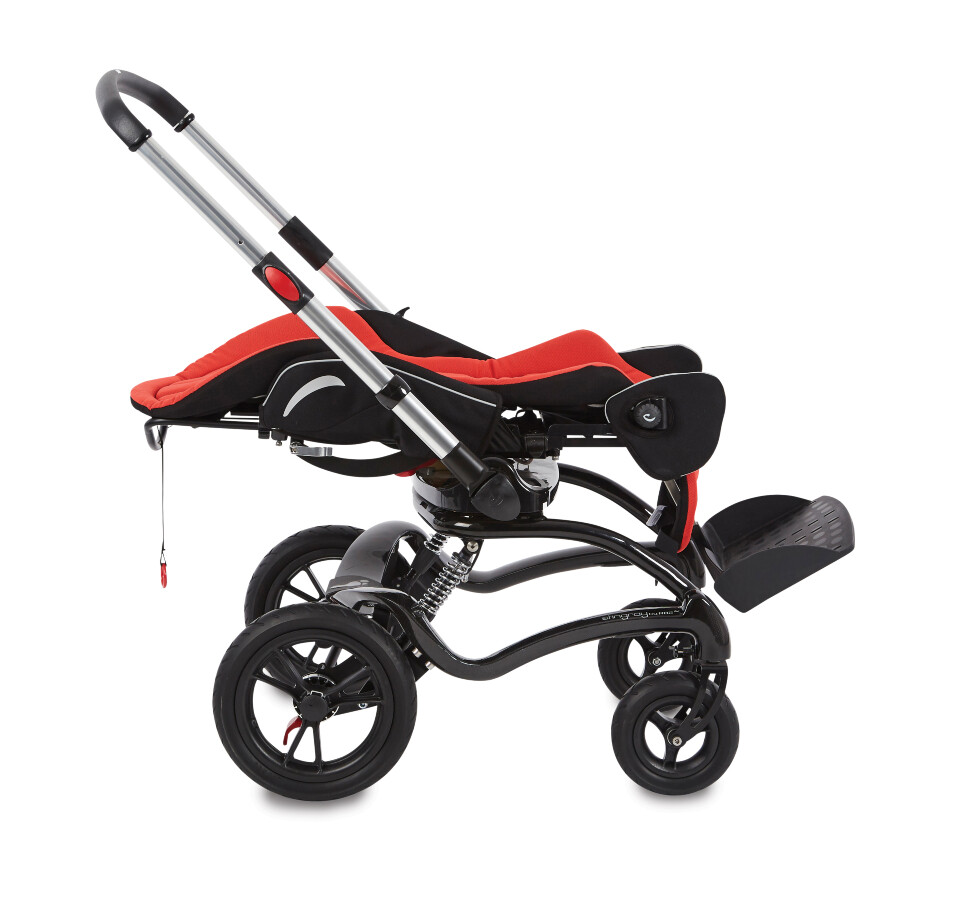

Adjustable seat tilt and back angle for perfect seating position and resting during walks
Foldable design for easy storage and transportation in any car
Central braking
Approved for transportation of up to 40kg user weight in vehicles
Complies with ISO 7176-19 for safe transportation in motor vehicles

Specifications

Code(s)	0500-8705000	0500-8705002	0500-8705001	0500-8705003
Size	1	1	2	2
Colour	Blue	Red	Blue	Red
Back height at shoulders	270 - 410mm	270 - 410mm	360 - 510mm	360 - 510mm
Backrest angle	170°	170°	170°	170°
Backrest height	410 - 550mm	410 - 550mm	500 - 650mm	500 - 650mm
Back width	300mm	300mm	300mm	300mm
Seat depth	180 - 300mm	180 - 300mm	250 - 400mm	250 - 400mm
Seat width	300mm	300mm	350mm	350mm
Folded height	285mm	285mm	305mm	305mm
Folded length	575mm	575mm	575mm	575mm
Folded width	420mm	420mm	475mm	475mm
Footrest to seat distance	140 - 450mm	140 - 450mm	140 - 450mm	140 - 450mm
Leg to seat surface angle	(-30) -30°	(-30) -30°	(-30) -30°	(-30) -30°
Product weight	5.5kg	5.5kg	6.5kg	6.5kg
Safe working load	47.5kg	47.5kg	48.5kg	48.5kg
Max. user weight	40kg	40kg	40kg	40kg
