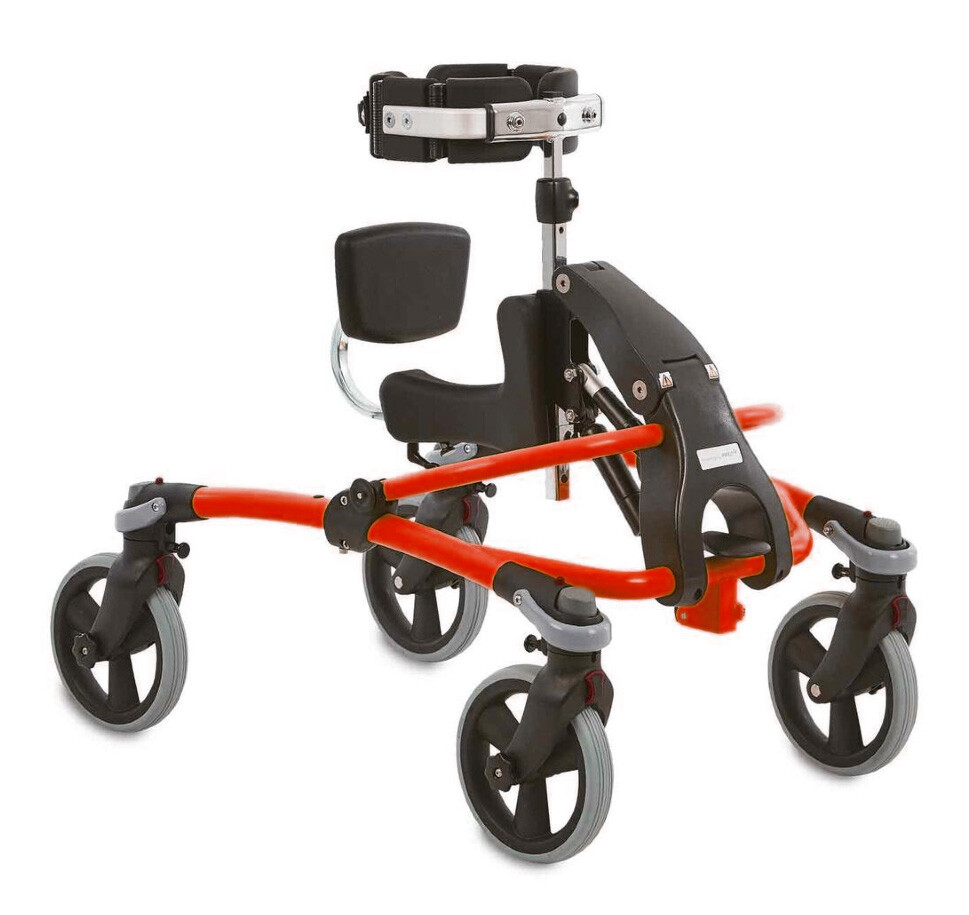

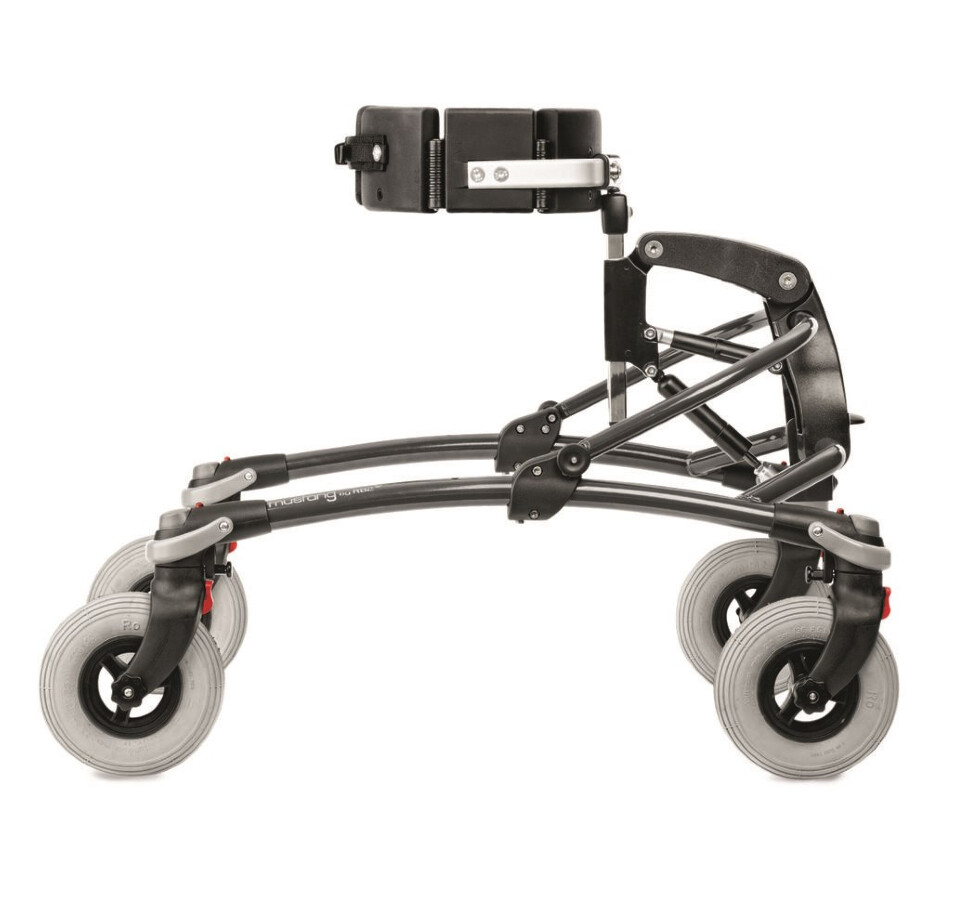

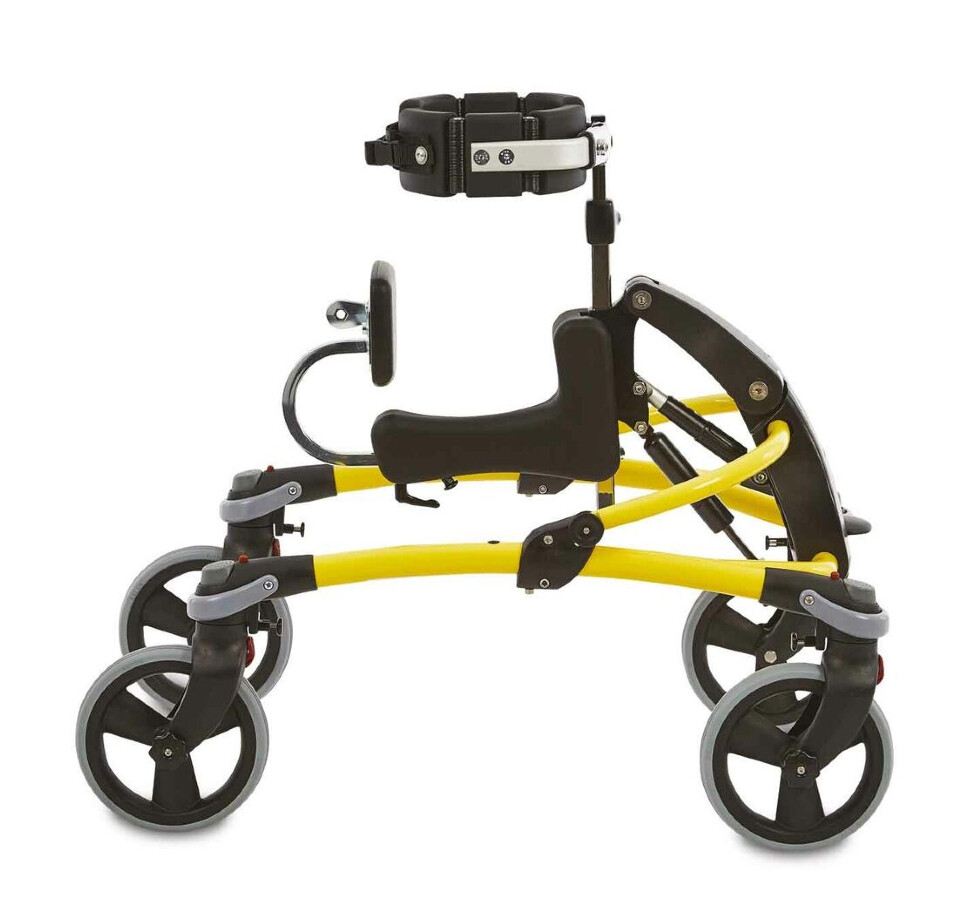

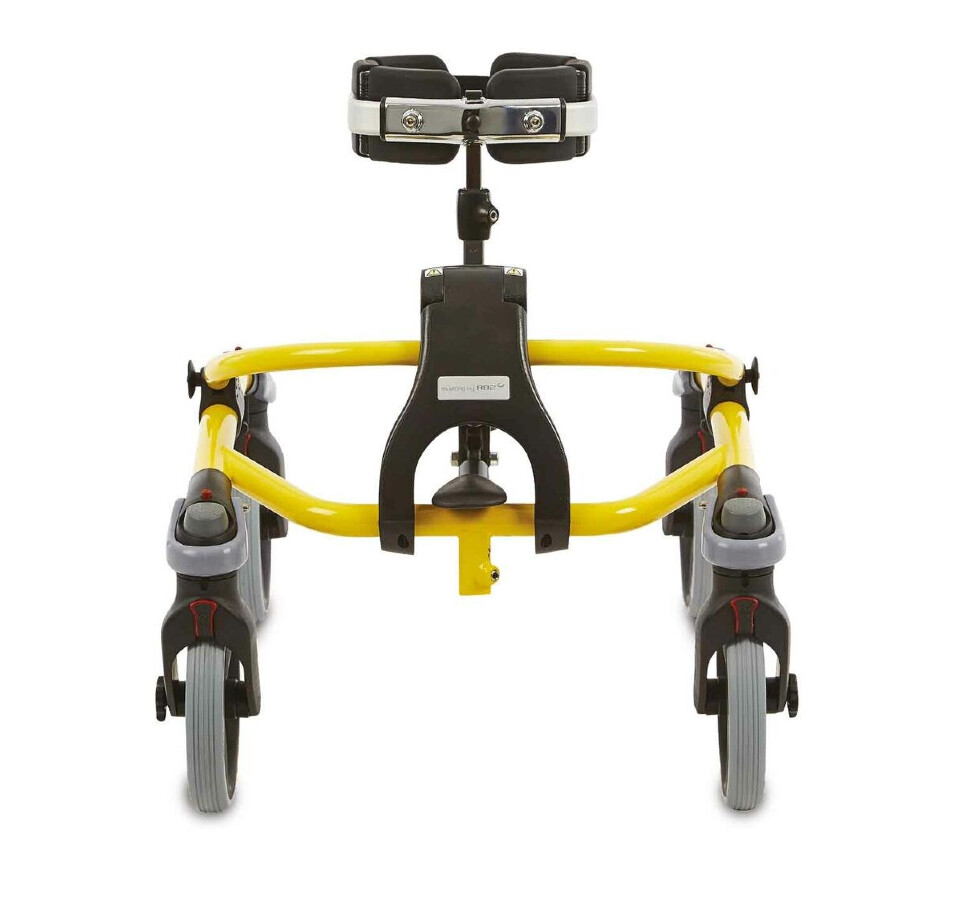

R82 Mustang walking aid

Code(s): 0500-869011, 0500-869024, 0500-869033, 0500-869042

The R82 Mustang is a walking aid to assist children and young people with disabilities in their daily walking. This walking aid offers excellent upper body support and gentle pelvic support. The upright position encourages walking and active participation in daily activities. Suitable for children with cerebral palsy and motor impairments, the Mustang can be used as an anterior walker or a posterior gait trainer, depending on the child's ability. Available in four sizes and colours.

Quantity

Key features

Suitable for children with cerebral palsy and motor impairments
Provides excellent support for the upper body and gentle support for the pelvis
Stimulates the walking function and encourages participation in daily activities
Can be used as an anterior walker or posterior gait trainer

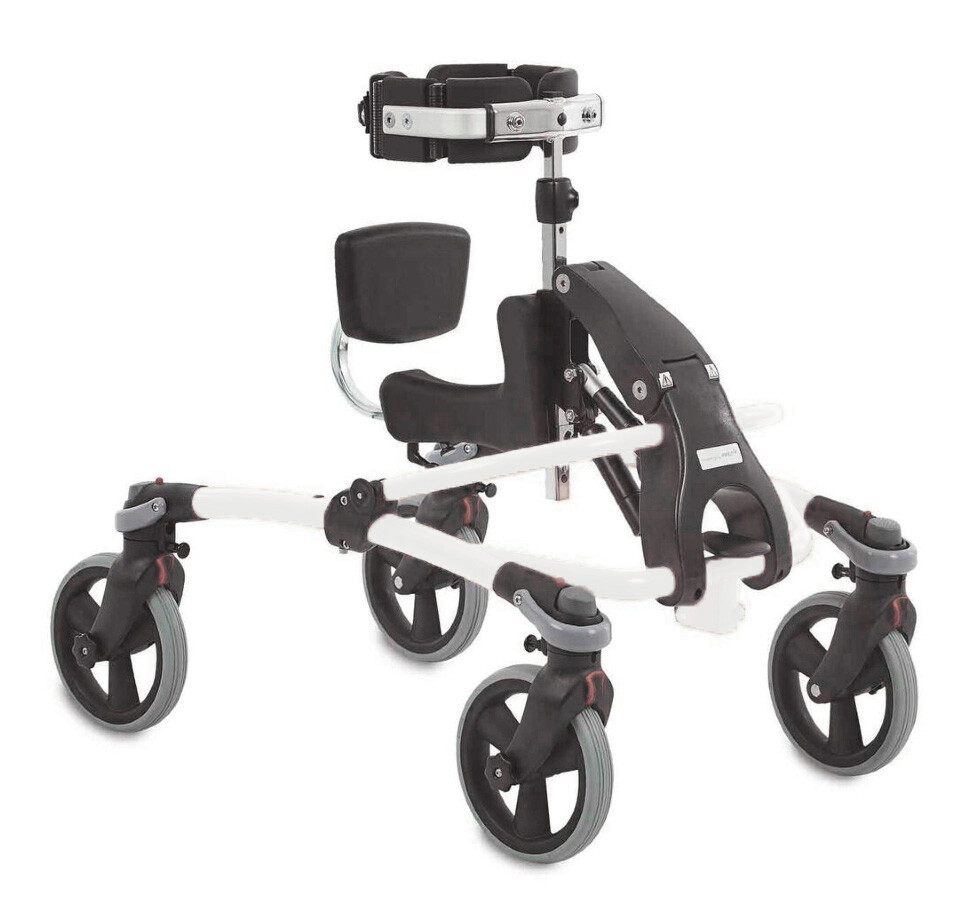

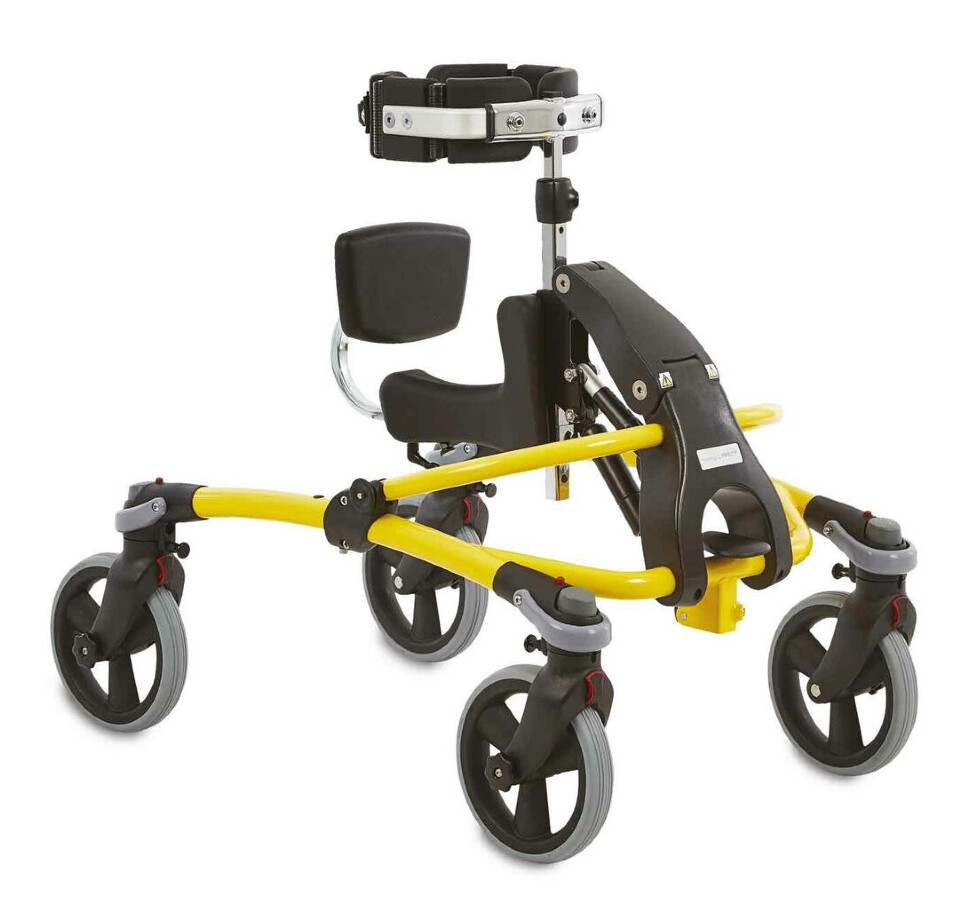

Available in four sizes and colours
Different height and weight ranges available

Specifications

Code(s)	0500-869011	0500-869024	0500-869033	0500-869042
Size	1	2	3	4
Overall dimensions (4" wheels)	W 520mm L 750mm H 400 - 650mm	W 580mm L 830mm H 600 - 850mm	-	-
Overall dimensions (8" wheels)	W 520mm L 820mm H 510 - 650mm	W 580mm L 900 H 600 - 850mm	W 650mm L 1000 H 700 - 1050mm	W 700mm L 1100mm H 1030 - 1250mm
Centre bar angle	30°	30°	25°	25°
Inside width	380mm	450mm	500mm	560mm
Minimum turning radius	360mm	550mm	600mm	650mm
Seat height with 4" wheels (Comfort seat)	170 - 430mm	240 - 490mm	-	-
Seat height with 4" wheels (PU seat)	170 - 350mm	240 - 410mm	-	-
Seat height with 8" wheels (Comfort seat)	260 - 520mm	330 - 580mm	450 - 760mm	620 - 920mm
Seat height with 8" wheels (PU seat)	260 - 440mm	330 - 500mm	450 - 680mm	620 - 840mm
User height (floor to axil)	400 - 650mm	600 - 850mm	700 - 1050mm	870 - 1300mm
Width between handles	165 - 320mm	165 - 320mm	140 - 400mm	140 - 400mm
Product weight with 4" wheels	10kg	11kg	-	-
Product weight with 8" wheels	13kg	14kg	18kg	19kg
Safe working load	45kg	56kg	80kg	101kg
Max. user weight	30kg	40kg	60kg	80kg
Overall width with 4" or 8" wheels	-	-	650mm	-

Code(s)	0500-869011	0500-869024	0500-869033	0500-869042
Size	1	2	3	4
Overall dimensions (4" wheels)	W 520mm L 750mm H 400 - 650mm	W 580mm L 830mm H 600 - 850mm	-	-
Overall dimensions (8" wheels)	W 520mm L 820mm H 510 - 650mm	W 580mm L 900 H 600 - 850mm	W 650mm L 1000 H 700 - 1050mm	W 700mm L 1100mm H 1030 - 1250mm
Centre bar angle	30°	30°	25°	25°
Inside width	380mm	450mm	500mm	560mm
Minimum turning radius	360mm	550mm	600mm	650mm
Seat height with 4" wheels (Comfort seat)	170 - 430mm	240 - 490mm	-	-
Seat height with 4" wheels (PU seat)	170 - 350mm	240 - 410mm	-	-
Seat height with 8" wheels (Comfort seat)	260 - 520mm	330 - 580mm	450 - 760mm	620 - 920mm
Seat height with 8" wheels (PU seat)	260 - 440mm	330 - 500mm	450 - 680mm	620 - 840mm
User height (floor to axil)	400 - 650mm	600 - 850mm	700 - 1050mm	870 - 1300mm
Width between handles	165 - 320mm	165 - 320mm	140 - 400mm	140 - 400mm
Product weight with 4" wheels	10kg	11kg	-	-
Product weight with 8" wheels	13kg	14kg	18kg	19kg
Safe working load	45kg	56kg	80kg	101kg
Max. user weight	30kg	40kg	60kg	80kg
Overall width with 4" or 8" wheels	-	-	650mm	-

Accessories

R82 Surrounding chest or pelvis support cover
- Code(s): 0500-869810-160, 0500-869820-260, 0500-869830-360
View
R82 Mustang storage pouch
- Code(s): 0500-869560
View
R82 Mustang sling seat
- Code(s): 0500-869570, 0500-869571
View
R82 Mustang seat
- Code(s): 0500-869110, 0500-869120
View
R82 Mustang sacrum support
- Code(s): 0500-869250
View
R82 Mustang posterior arm prompts
- Code(s): 0500-869330-1, 0500-869340-1
View
R82 Mustang pelvis support
- Code(s): 0500-869610, 0500-869620, 0500-869630
View
R82 Mustang leg separator
- Code(s): 0500-869410, 0500-869420, 0500-869430, 0500-869440
View
R82 Mustang leg protector pad
- Code(s): 0500-869470
View
R82 Mustang hip support for head support
- Code(s): 0500-869221
View
R82 Mustang hip support
- Code(s): 0500-869220, 0500-869230
View
R82 Mustang handle bar
- Code(s): 0500-869360, 0500-869365
View
R82 Mustang comfort seat
- Code(s): 0500-869115, 0500-869125
View
R82 Mustang attendant guide bar
- Code(s): 0500-869510
View
R82 Mustang anterior arm supports
- Code(s): 0500-869350, 0500-869355
View
R82 Mustang anterior arm prompts
- Code(s): 0500-869310-1, 0500-869320-1
View
R82 Mustang ankle prompts
- Code(s): 0500-869450, 0500-869455, 0500-869460, 0500-869465
View
R82 Mustang abdominal support
- Code(s): 0500-869260
View
R82 Crocodile/Mustang arm padded positioner
- Code(s): 0500-869370
View
R82 Mustang storage bag
- Code(s): 0500-869565
View
