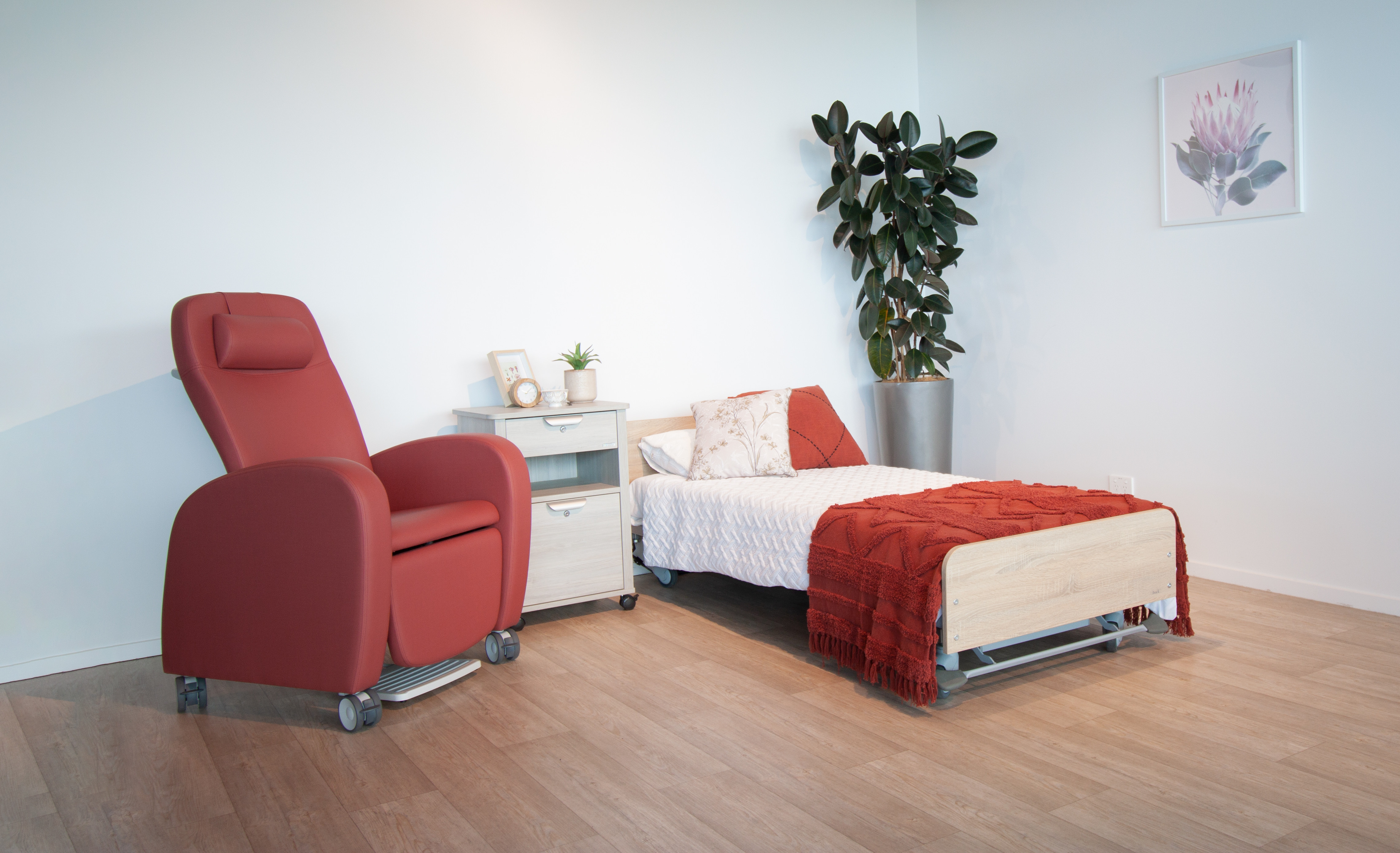

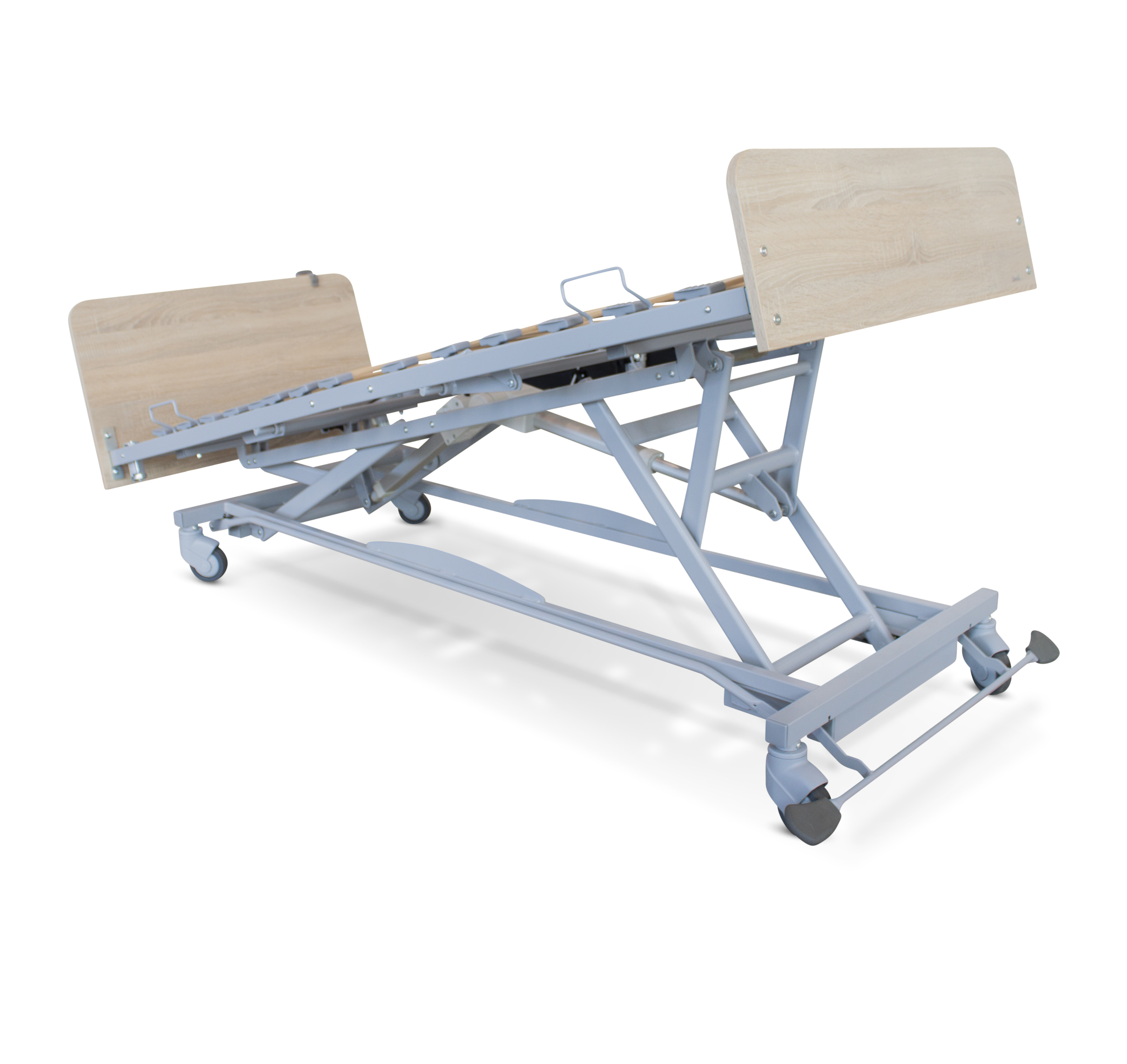

bock^® Practico ultra low slimline bed with central braking

Made in Germany

Code(s): 938/5129, 941/WA, 946/WA

Looking for a mattress to go with this bed? Our mattresses are sold separately so that you can find the best solution for those using them. Browse our range of quality mattresses.

The bock® Practico ultra low bed is a profiling bed which offers comfort and practicality. With 4 electric adjustable sections, this bed can be easily repositioned to suit an individual's needs.
Trendelenburg and reverse Trendelenburg functions provide comfort and pressure care, while in-built mattress compensation technology reduces shear force and compression. Individuals can sit upright in the bed, and the triple-action knee break prevents the occupant from sliding down the bed. At its lowest height of 250mm, the Practico supports safe transfers and reduces the risk of injuries from falls.

Quantity

Key features

Ultra low height adjustment - lowers to 250mm from floor
Sprung slat base for pressure care and ventilation
4-section electric bed including automatic triple action knee break and height adjustment
Trendelenberg and reverse Trendelenberg functions
Very stable construction - dual column telescopic lift construction makes this bed extremely stable and safe
Under frame hoist clearance on lowest setting
Slimline and low head and endboards
All function hand controller with integrated disabler control
Features protection against moisture (IPX4)
High grade coiled cable with strain relief and anti-kink feature to avoid cable damage
Battery for emergency lowering
Mains isolation prevents the generation of electric fields
Mattress compensation backrest on super single and double models
Meets German Federal Inst. for Pharmaceuticals and Medical Products Standards (BfArM) and DIN EN ISO 14971 standard

Specifications

Code(s)	938/5129	941/WA	946/WA
Option	Single	Super single	Double
Overall dimensions	W 915mm L 2160mm	W 1150mm L 2130mm	W 1415mm L 2160mm
Safe working load	220kg	220kg	220kg
Min. client requirements	40kg H 1460mm	40kg H 1460mm	40kg H 1460mm
Max. user weight	185kg	185kg	185kg
Sleeping surface dimensions	W 900mm L 2000mm	W 1100mm L 2000mm	W 1400mm L 2000mm
Mattress platform height	250 - 800mm	250 - 800mm	250 - 800mm
Angle adjustment	Back: 70°, Knee: 35°, Trendelenburg: 15°	Back: 70°, Knee: 35°, Trendelenburg: 15°	Back: 70°, Knee: 20°, Trendelenburg: 15°
Underbed clearance	150mm	150mm	150mm
Braking	Central braking	Central braking	Central braking
Castor size	4 x 100mm	4 x 100mm	4 x 100mm
Warranty	Motor: 5 years, Frame: 10 years	Motor: 5 years, Frame: 10 years	Motor: 5 years. Frame: 10 years

bock® Practico bed - handcontoller guide

View

Information sheet

View

Beds - Rationale support guide

View

User manual

View

Code(s)	938/5129	941/WA	946/WA
Option	Single	Super single	Double
Overall dimensions	W 915mm L 2160mm	W 1150mm L 2130mm	W 1415mm L 2160mm
Safe working load	220kg	220kg	220kg
Min. client requirements	40kg H 1460mm	40kg H 1460mm	40kg H 1460mm
Max. user weight	185kg	185kg	185kg
Sleeping surface dimensions	W 900mm L 2000mm	W 1100mm L 2000mm	W 1400mm L 2000mm
Mattress platform height	250 - 800mm	250 - 800mm	250 - 800mm
Angle adjustment	Back: 70°, Knee: 35°, Trendelenburg: 15°	Back: 70°, Knee: 35°, Trendelenburg: 15°	Back: 70°, Knee: 20°, Trendelenburg: 15°
Underbed clearance	150mm	150mm	150mm
Braking	Central braking	Central braking	Central braking
Castor size	4 x 100mm	4 x 100mm	4 x 100mm
Warranty	Motor: 5 years, Frame: 10 years	Motor: 5 years, Frame: 10 years	Motor: 5 years. Frame: 10 years

bock® Practico bed - handcontoller guide

View

Information sheet

View

Beds - Rationale support guide

View

User manual

View

Accessories

SafeSense intelligent bed exit sensor
- Code(s): 20032
View
Cubro^® fold down side rail
- Code(s): 910T-L, 910T-R
View
bock^® swing-away side support rail
- Code(s): 5131
View
bock^® Practico wall protector for slimline beds
- Code(s): 5192
View
bock^® mesh dropdown side rail system
- Code(s): 5120, 5121
View
bock^® fold down side rail bumpers
- Code(s): PS910T
View
bock^® clamp-on side support rail
- Code(s): 5109-2
View
bock^® bed support pole
- Code(s): 5113
View
bock^® bed extension kit
- Code(s): 5066, 5067, 5068
View
bock^® foot end cross bar
- Code(s): 5181, 5182
View
bock^® Practico wall protector for 941/WA
- Code(s): 5184
View
bock^® padded side rail cover
- Code(s): PS910
View

Need a hand choosing the right product?

Our customer support team is available Monday to Friday to answer your questions.

Let's talk

Related parts

Slimline 140cm End Boards (Set) to suit 946WA & 922/WA
- Code(s): XX94601
View
Slimline 110cm End Boards (Set) to suit 934 & 941 Sonoma Oak
- Code(s): XX93402
View
bock^® foot end cross bar - Super single
- Code(s): 5181
View
bock^® swing-away side support rail
- Code(s): 5131
View
bock^® Practico wall protector for 941/WA
- Code(s): 5184
View
bock^® bed support pole
- Code(s): 5113
View

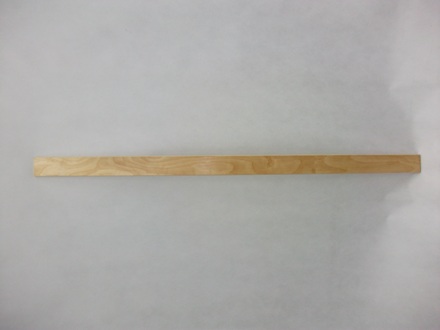

Wooden Slat - 985 x 63 x 12mm (slat 1-15)
- Code(s): ZZ0921002
Special order

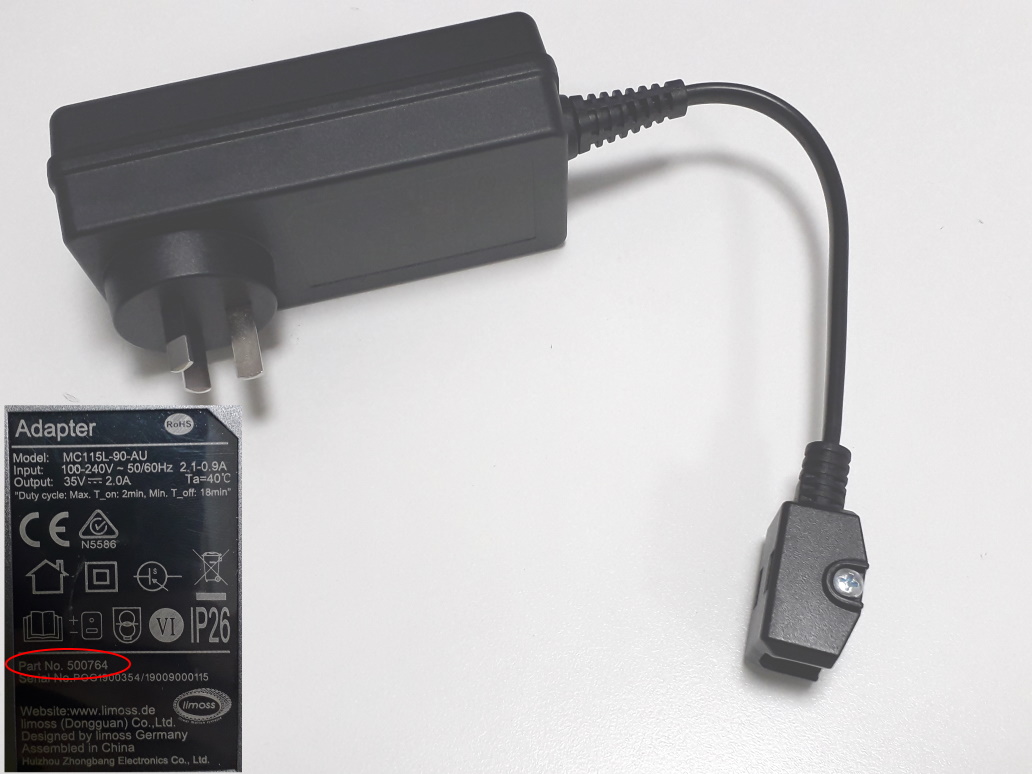

Transformer Plug (short lead) Adaptor (500764/602779/602809)
- Code(s): ZZ0920124
Special order

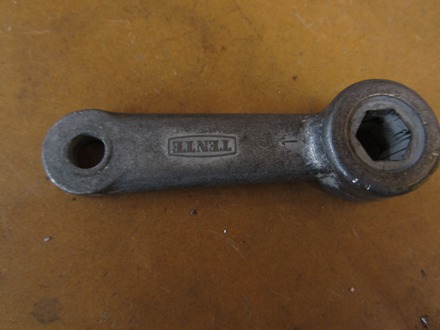

Tente lever to suit central braking base.
- Code(s): ZZ5124002

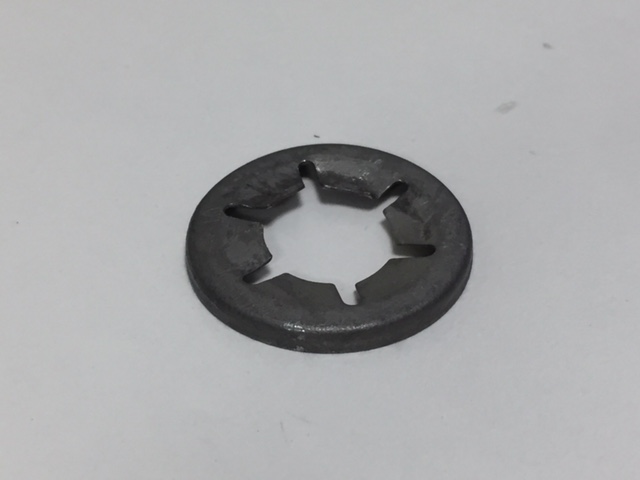

Starlock Washer to suit Central Braking Locking Bar (11mm)
- Code(s): ZZ5124010

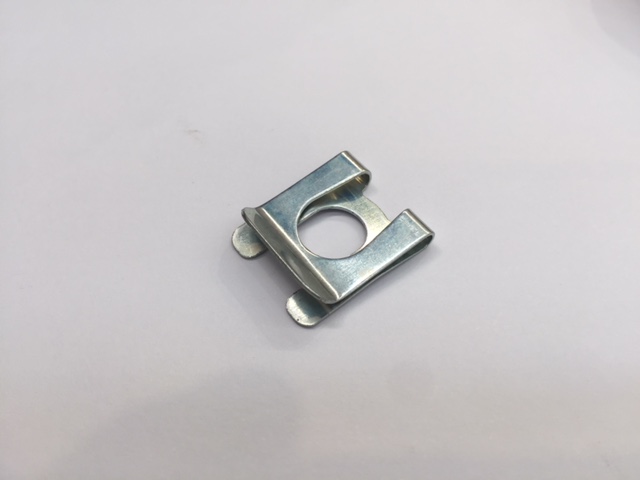

Spade Clip To Suit 10mm Clevis Pins On Bock Beds
- Code(s): ZZ0912035

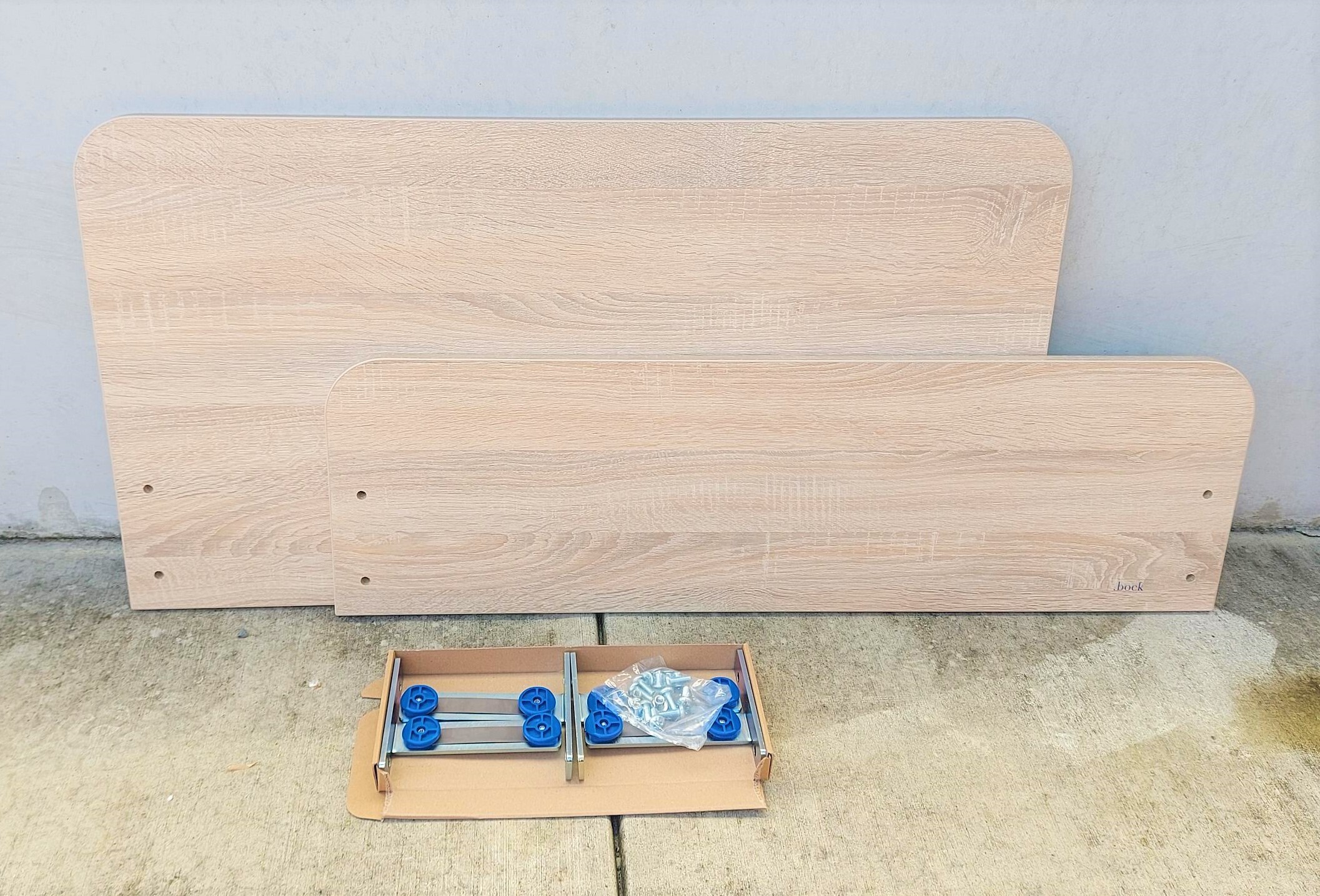

Slimline 90cm End Boards (Set) to suit 939 & 938 Sonoma Oak
- Code(s): ZZ0939003
Rubber Slat Holder for Wooden Slat (Grey)
- Code(s): ZZ0912036
Rubber Cap to suit Bock Central Braking Foot Pedal
- Code(s): ZZ5124009
R/H Endboard Mounting Bracket
- Code(s): ZZ0920086
Special order

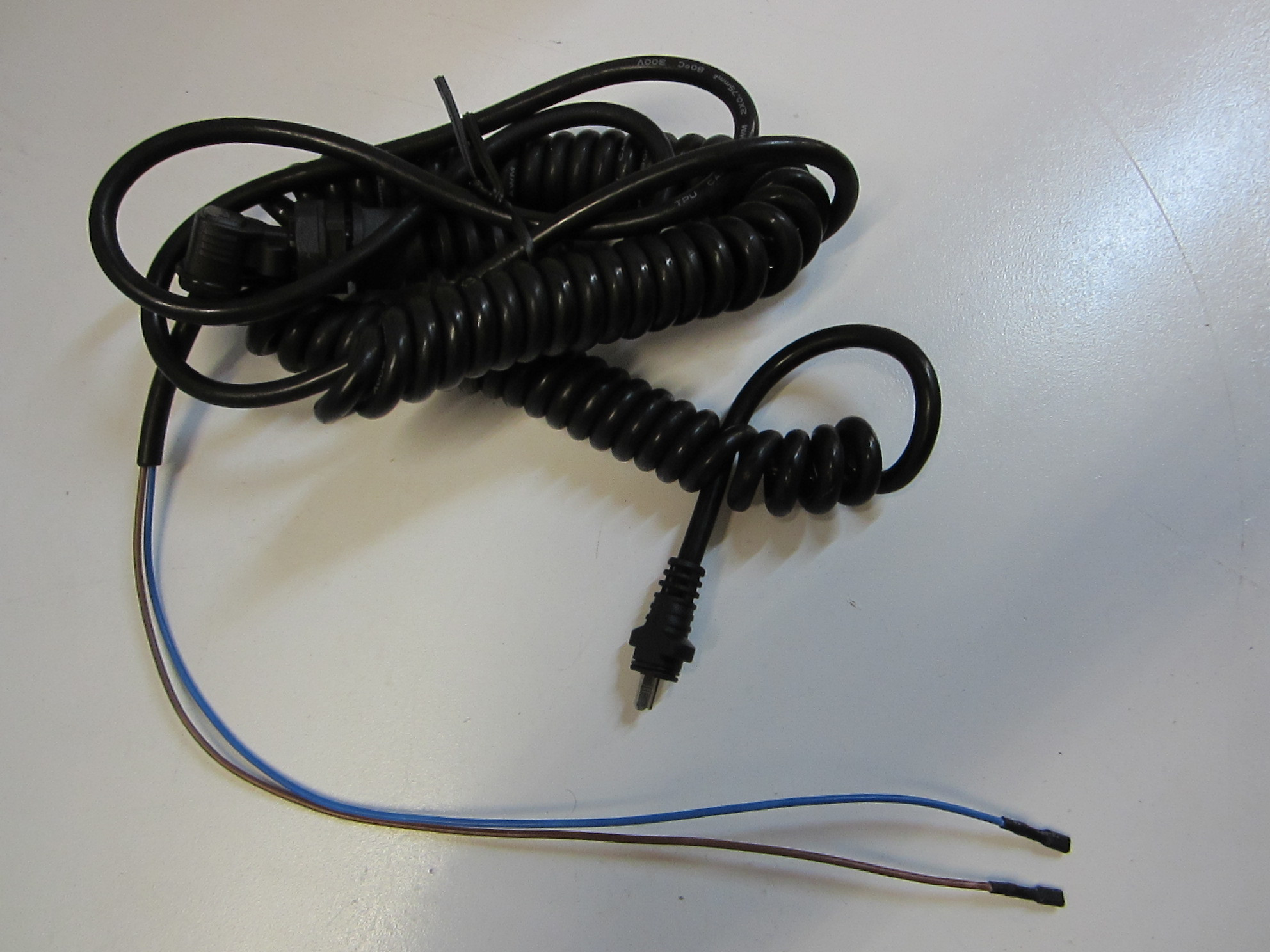

Power Cord Cable to suit Limoss Motor
- Code(s): ZZ0920129

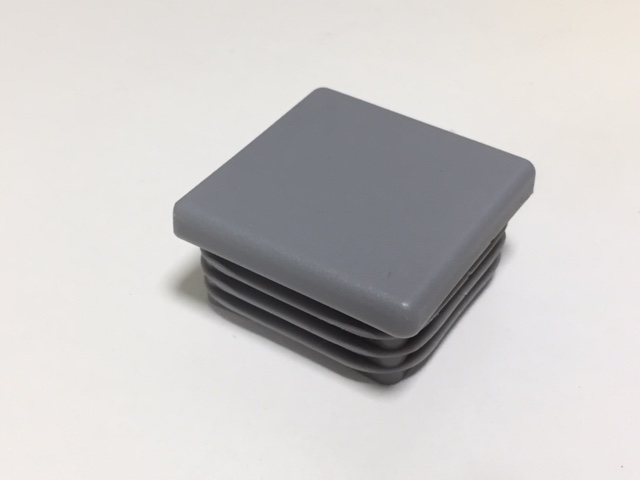

Plastic Cap 40x40 for central braking base
- Code(s): ZZ0920038
Special order

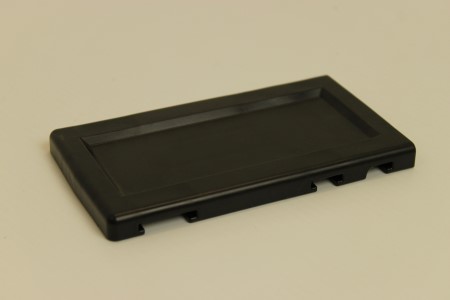

Motor retaining cover to suit Limoss Main Motor
- Code(s): ZZ0920128
Special order

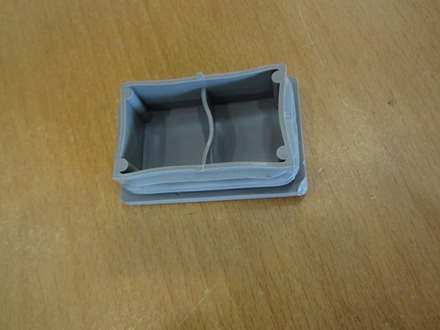

MKII End cap 60x50mm to suit Central braking base
- Code(s): ZZ5124008

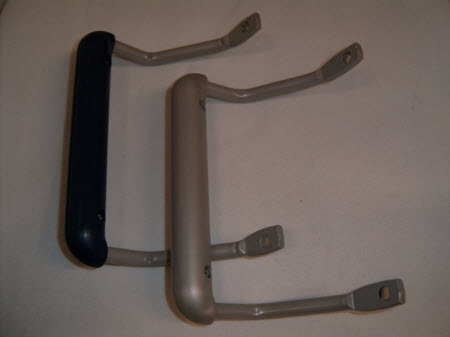

Mattress Holder Bracket (Screws not incl.)
- Code(s): ZZ0920093
Special order

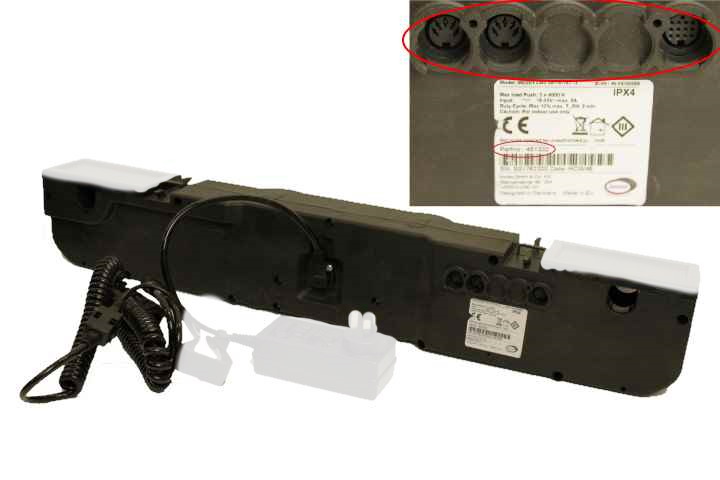

Main Motor Limoss (Excludes Retaining Covers & Power Cord)
- Code(s): ZZ0938012
Special order

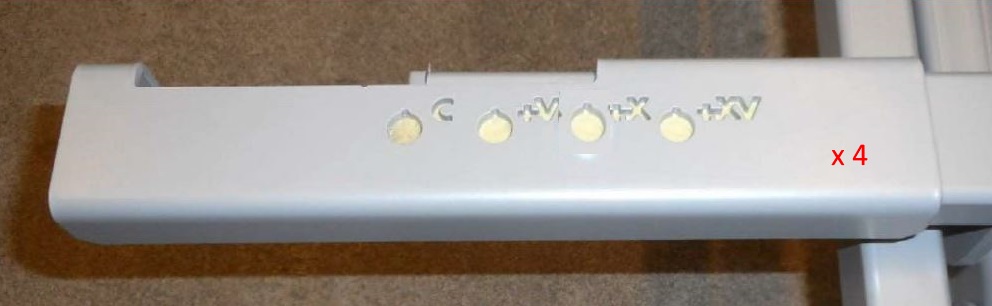

Lying Surface Fortification Bars to suit 941 Practico MKII
- Code(s): ZZ0941005

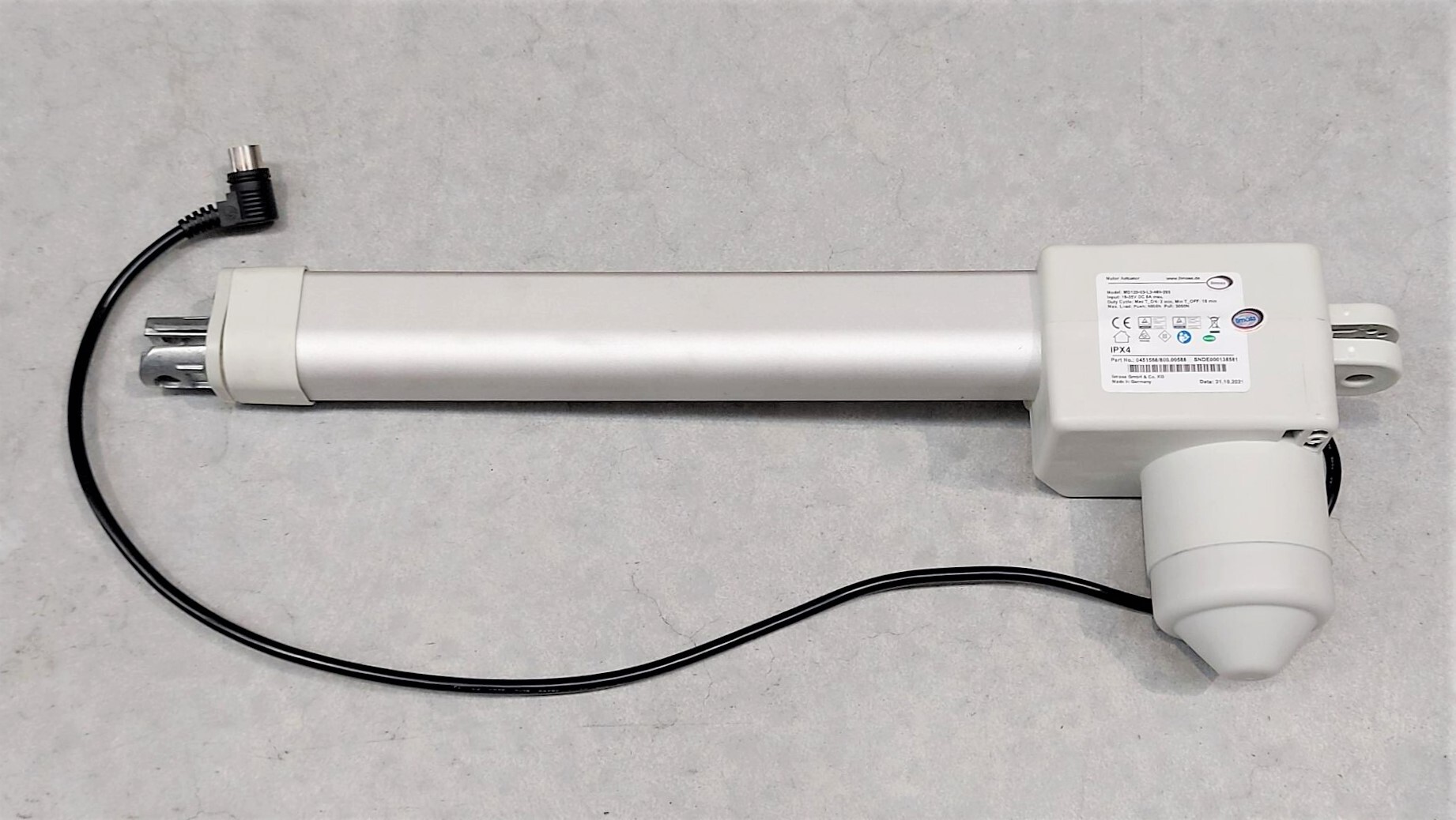

Lift Motor/Actuator Mk2 Limoss to suit Bock Practico beds
- Code(s): ZZ0938013

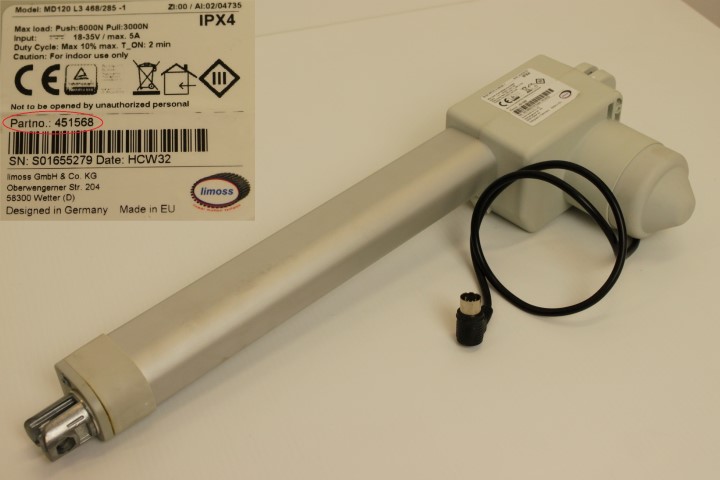

Lift Motor/Actuator Mk1 Limoss for 938 Bock Practico Bed
- Code(s): ZZ0938005
Special order

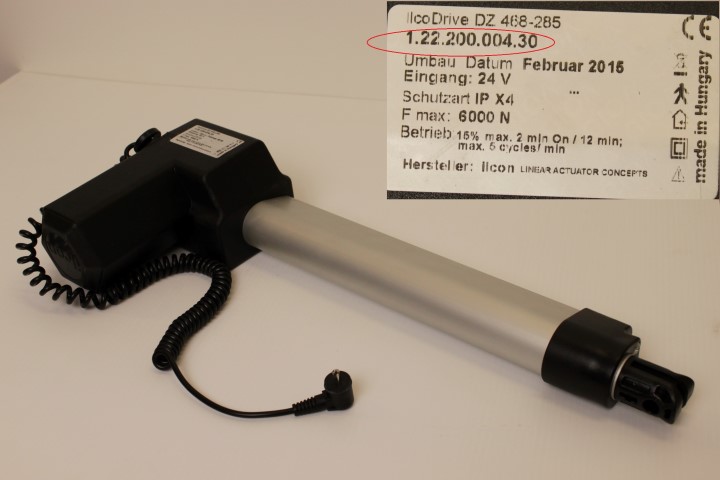

Lift Motor Ilcon to Suit the Bock ^® Practico
- Code(s): ZZ0938001
L/H Endboard Mounting Bracket
- Code(s): ZZ0920085
Head Section with Slats & Actuator Bar 922/946 (1400 Mk3)
- Code(s): ZZ0922018

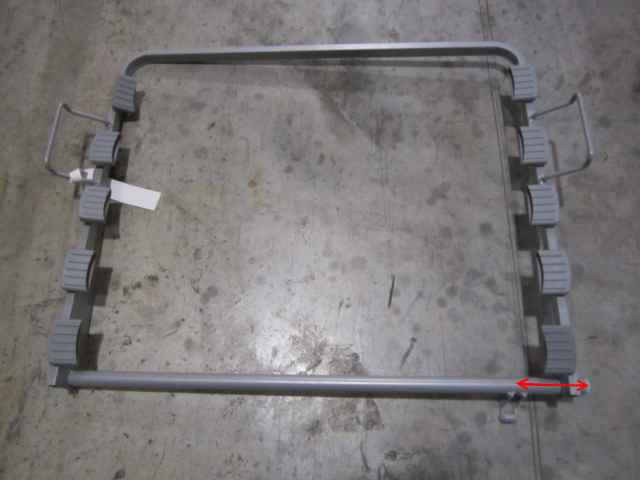

Head Section Frame (w/o slats) to suit 920 (900 Mk2)
- Code(s): ZZ0920126

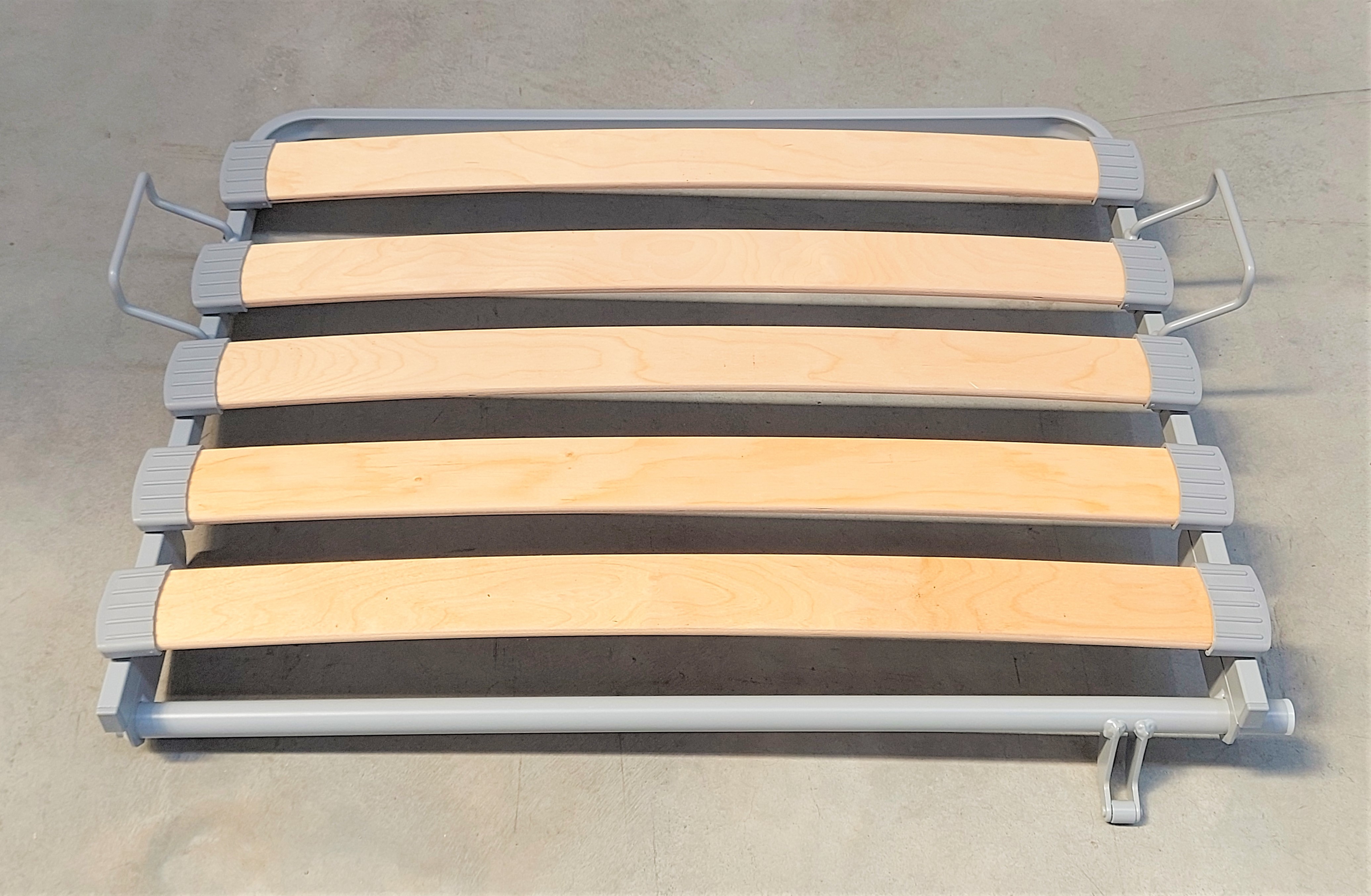

Head Section complete with Slats to suit 920/938 (900 Mk2)
- Code(s): ZZ0938010

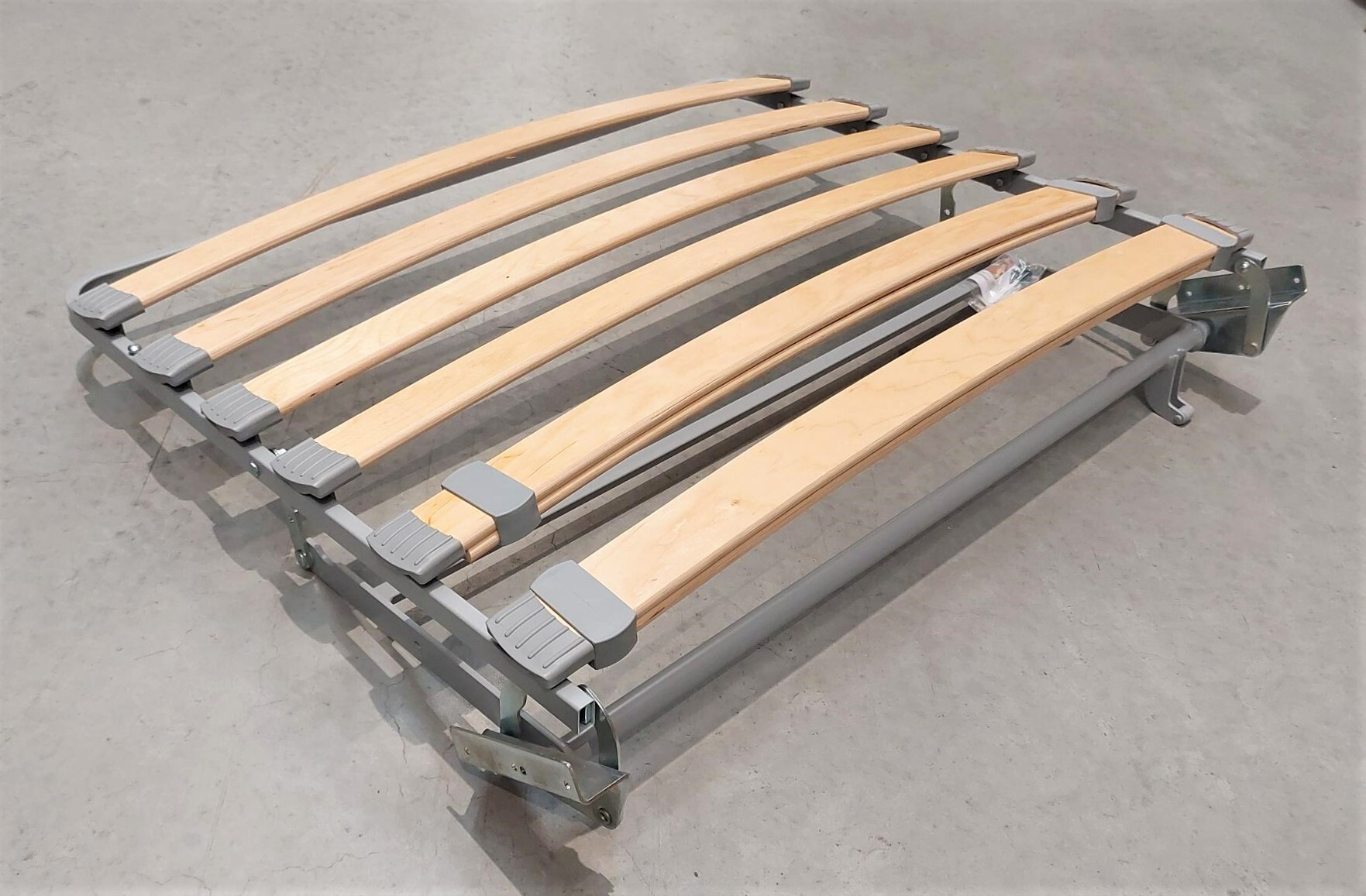

Head Section c/w Tsn/Reg Slats Actuator Bar 921 (1100 Mk2)
- Code(s): ZZ0941004

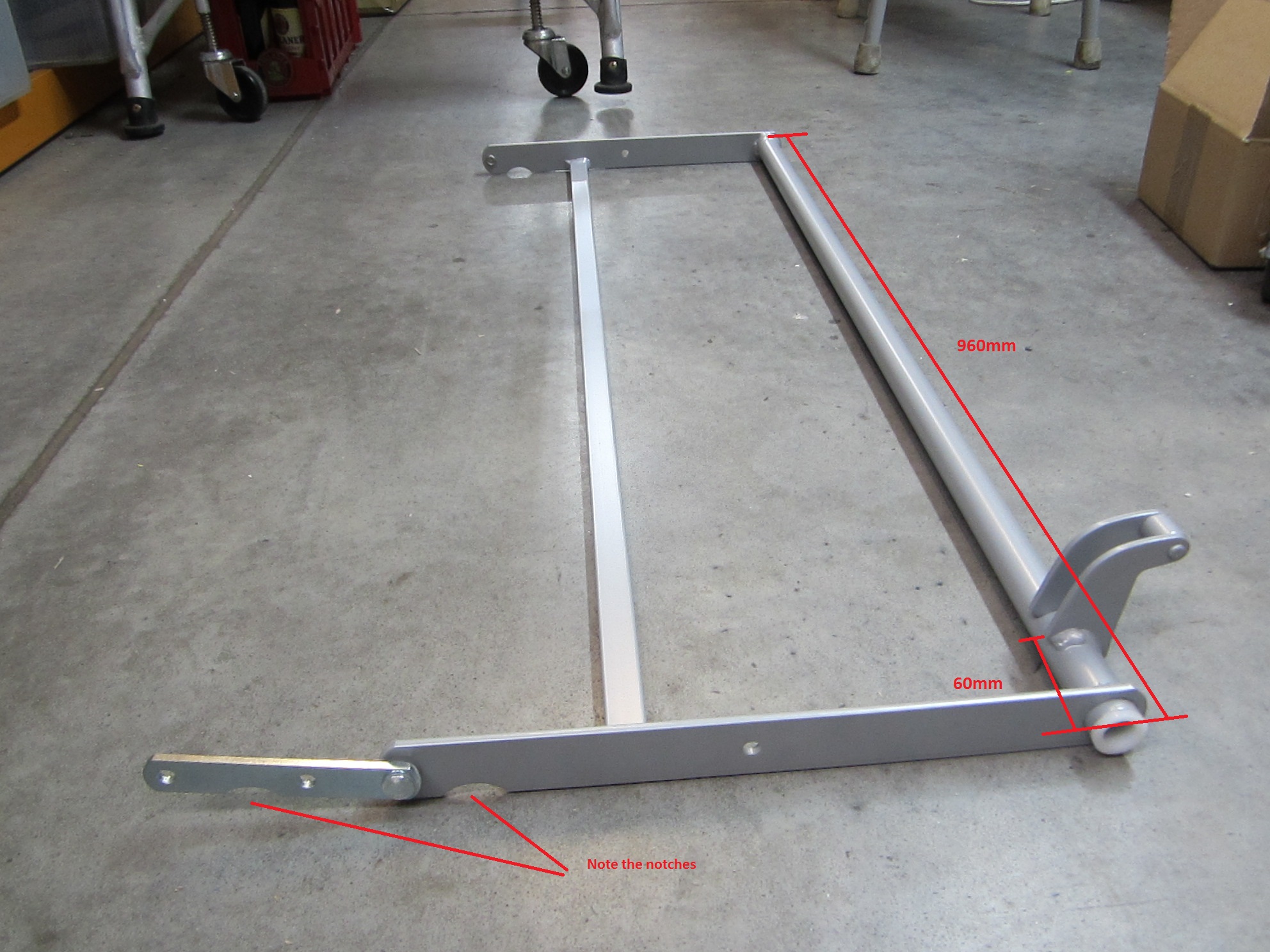

Head Section Actuator Bar to suit 921/947 (1100 Mk2)
- Code(s): ZZ0921010
Special order

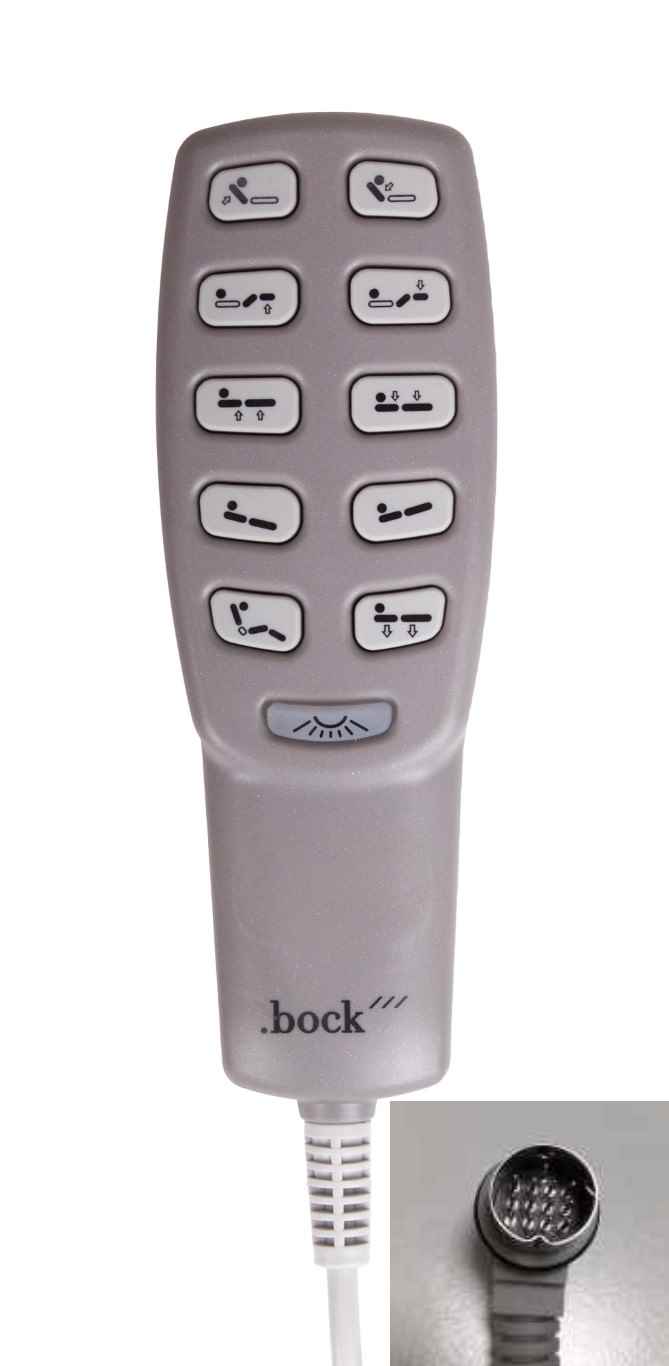

Hand Controller 11 Function (13 pin) to suit Practico Motor
- Code(s): ZZ0938004
Special order

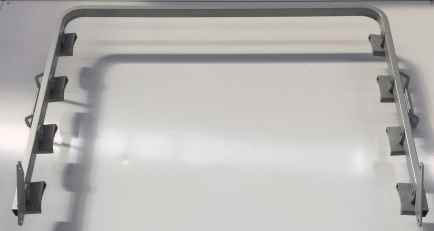

Foot Section Frame (without Slats) to suit Bock (1100 Mk2)
- Code(s): ZZ0921013

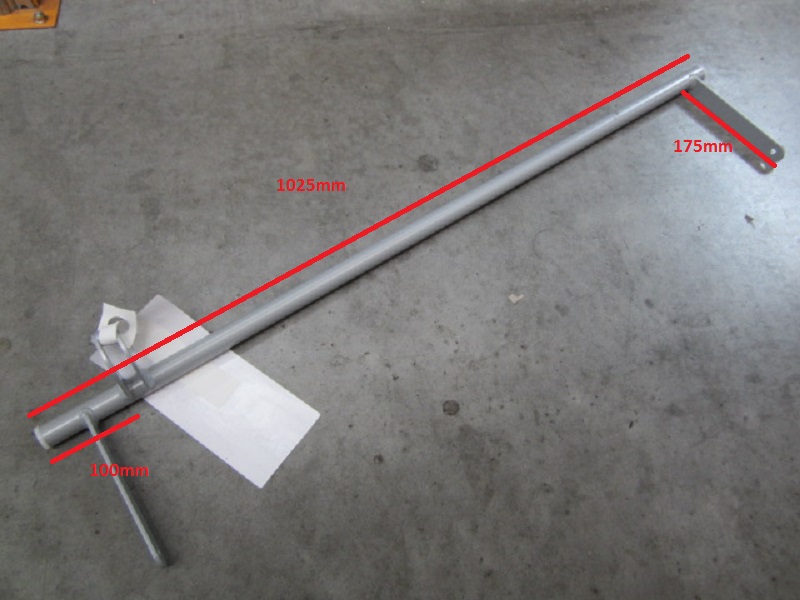

Foot Section Actuator Bar to suit Bock beds (1100 Mk2)
- Code(s): ZZ0921012
Special order

Foot Section Actuator Bar to suit 920/944 (900 Mk2)
- Code(s): ZZ0920127
Special order

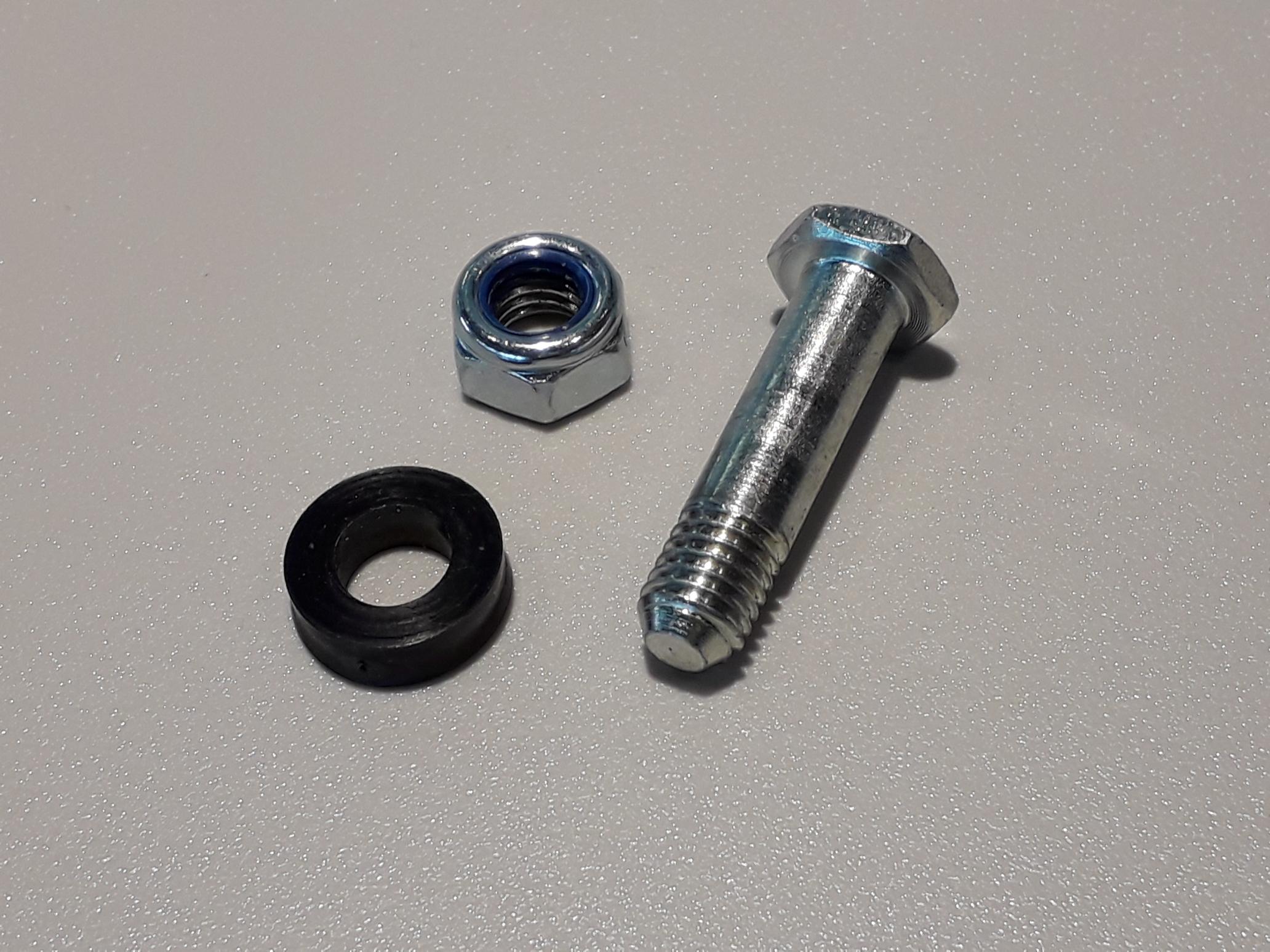

Fastenings to fit Head Section Actuator Bar to Frame
- Code(s): ZZ0921028
Special order

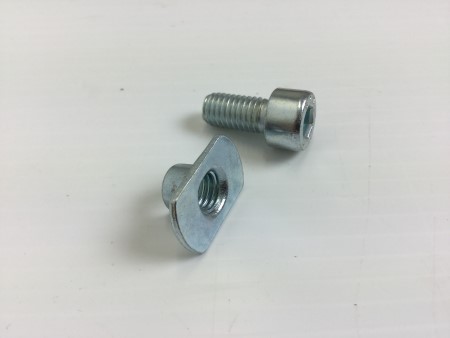

End Panel Screw and flange nut (Mk1)
- Code(s): ZZ0938002

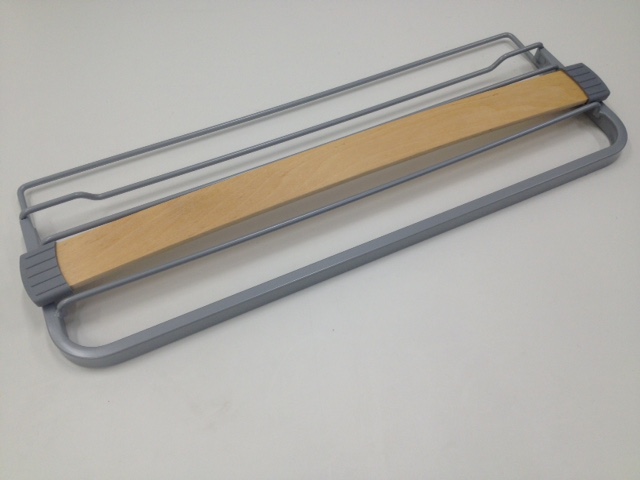

Clip on Foot bar surface extension with wooden slat
- Code(s): ZZ0921019
Special order

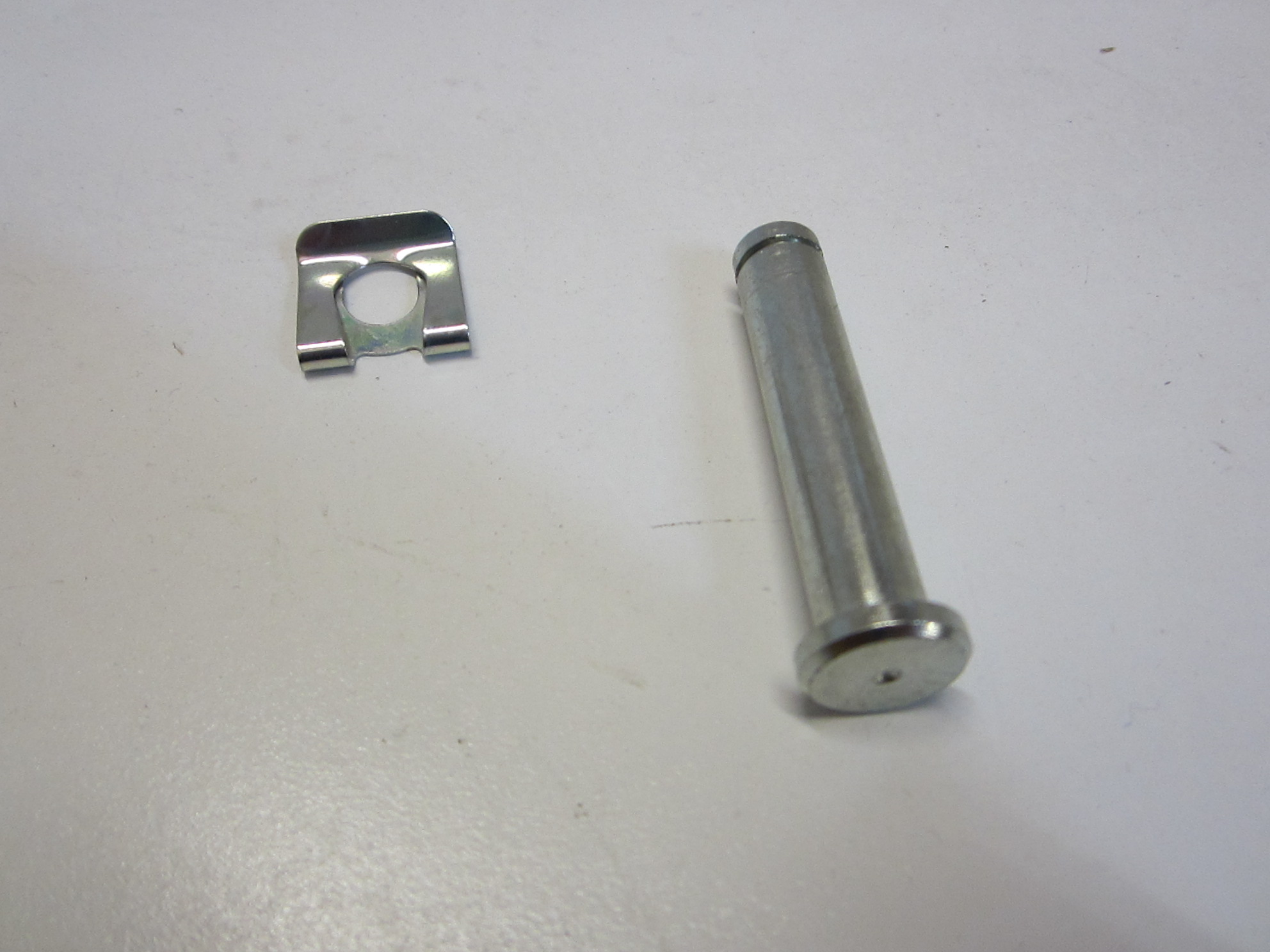

Clevis Pin 10x50 Mk2 (base) includes Locking Clip
- Code(s): ZZ0920140
Special order

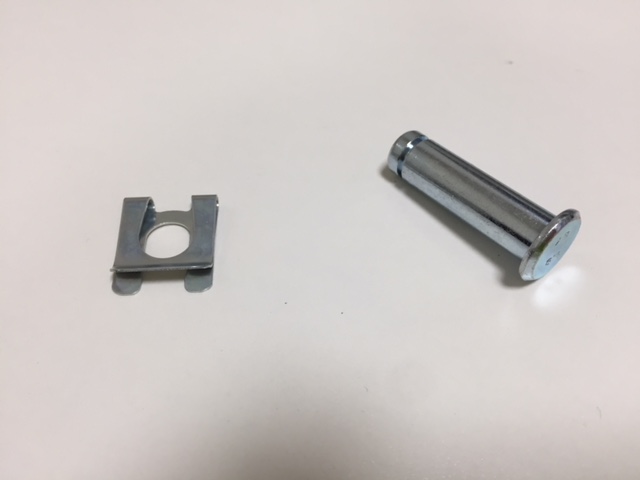

Clevis Pin 10x35 Mk2 includes Locking Clip
- Code(s): ZZ0920147

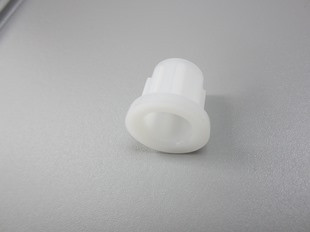

Actuator Bar Pivot Bush to suit Belluno & Practico 15mm-ID
- Code(s): ZZ0920108

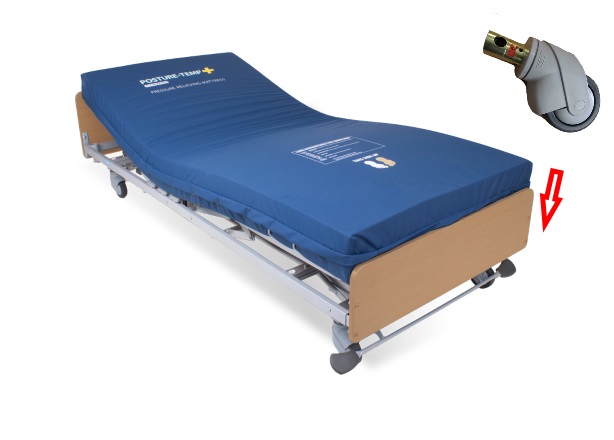

4" Tente locking castor MK1 to suit central braking base
- Code(s): ZZ5124007

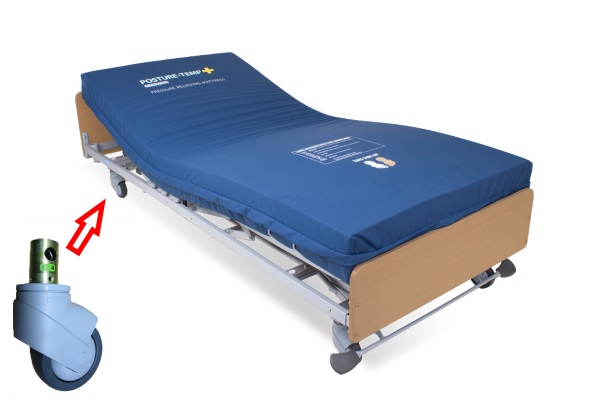

4" Tente Directional castor MK1 to suit central braking base
- Code(s): ZZ5124001
